MAINTENANCE
3-3
TORQUE VALUES
TOOLS
Spark plug 16 N·m (1.6 kgf·m, 12 lbf·ft)
Timing hole cap 18 N·m (1.8 kgf·m, 13 lbf·ft) Apply grease to the threads.
Engine oil drain bolt 30 N·m (3.1 kgf·m, 22 lbf·ft)
Engine oil filter cartridge 26 N·m (2.7 kgf·m, 19 lbf·ft) Apply engine oil to the threads and O-ring.
Rear axle nut 98 N·m (10.0 kgf·m, 72 lbf·ft) U-nut
Drive sprocket bolt 54 N·m (5.5 kgf·m, 40 lbf·ft)
Driven sprocket nut 108 N·m (11.0 kgf·m, 80 lbf·ft)
Front master cylinder reser-
voir cap screw
1.5 N·m (0.2 kgf·m, 1.1 lbf·ft)
Rear brake fluid reservoir
mounting bolt
10 N·m (1.0 kgf·m, 7 lbf·ft)
Rear master cylinder push
rod joint nut
17 N·m (1.7 kgf·m, 13 lbf·ft)
Drive chain adjuster lock nut 21 N·m (2.1 kgf·m, 15 lbf·ft)

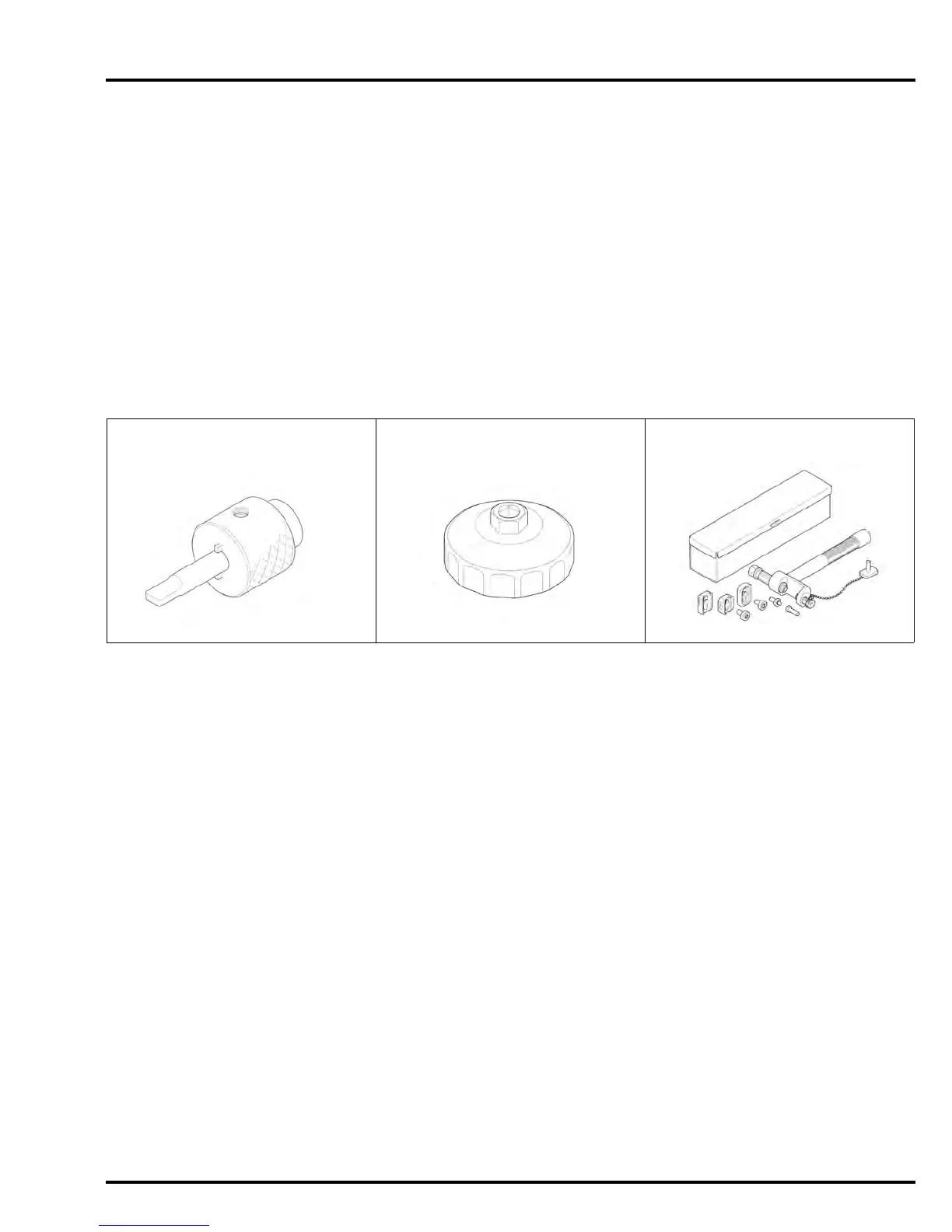

Tensioner stopper
070MG-0010100
Oil filter wrench
07HAA-PJ70101
Drive chain tool set
07HMH-MR10103
