MAINTENANCE
3-11

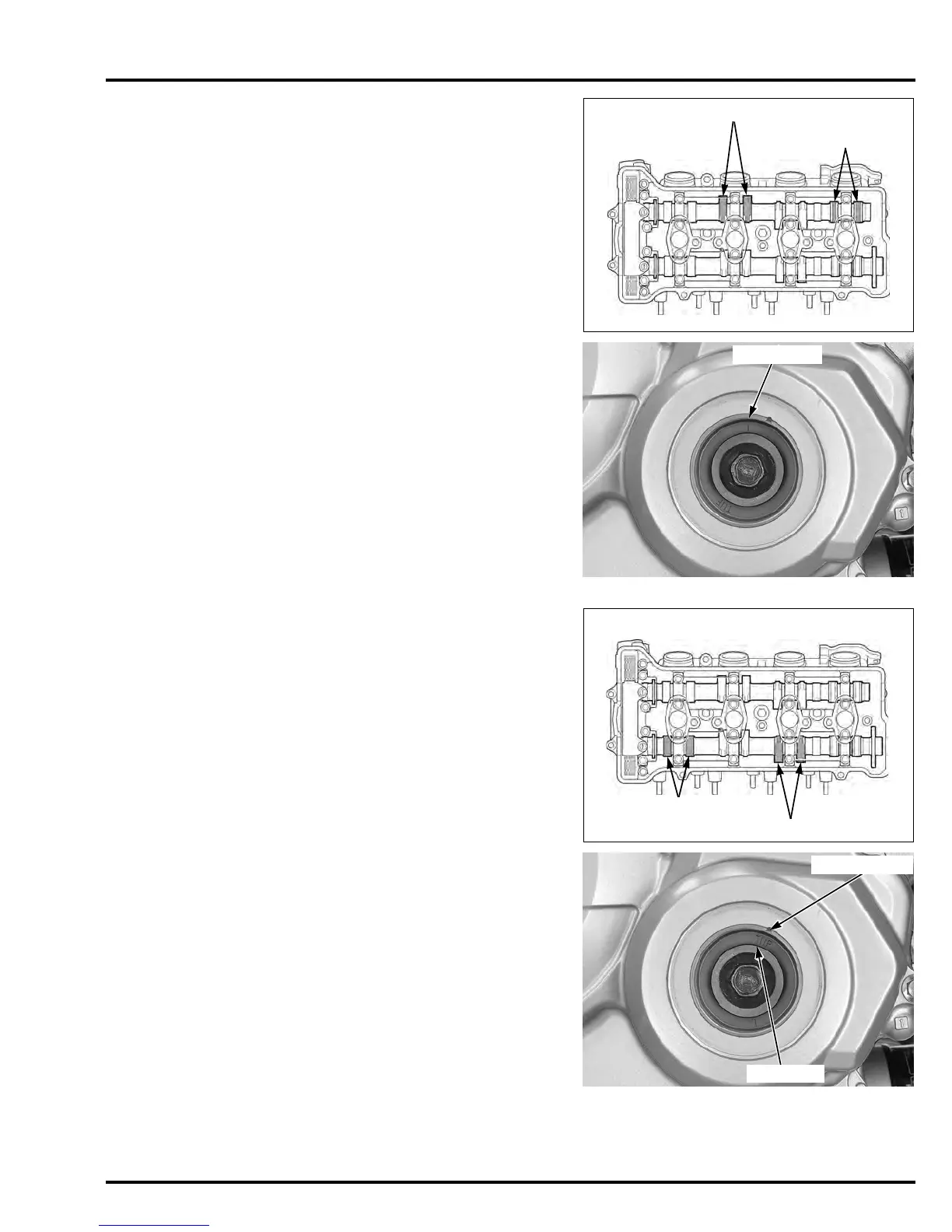

Check the valve clearance for the No.1 and No.3 cyl-
inder intake valves using a feeler gauge.
Turn the crankshaft clockwise 1/2 turn (180°), align
the index line on the CKP sensor rotor so that it is
facing up as shown.
Record the
clearance for each
valve for reference
in shim selection if
adjustment is
required.
Check the valve clearance for the No.2 and No.4 cyl-
inder exhaust valves using a feeler gauge.
Turn the crankshaft clockwise 1/2 turn (180°), align
the "T" mark on the CKP sensor rotor with the index
mark on the right crankcase cover.
Record the
clearance for each
valve for reference
in shim selection if
adjustment is
required.
VALVE CLEARANCE:
IN: 0.20 ± 0.03 mm (0.008 ± 0.001 in)
No.3 INTAKE VALVES
No.1 INTAKE VALVES
VALVE CLEARANCE:
EX: 0.28 ± 0.03 mm (0.011 ± 0.001 in)
No.2 EXHAUST VALVES
No.4 EXHAUST VALVES
