MAINTENANCE
3-21

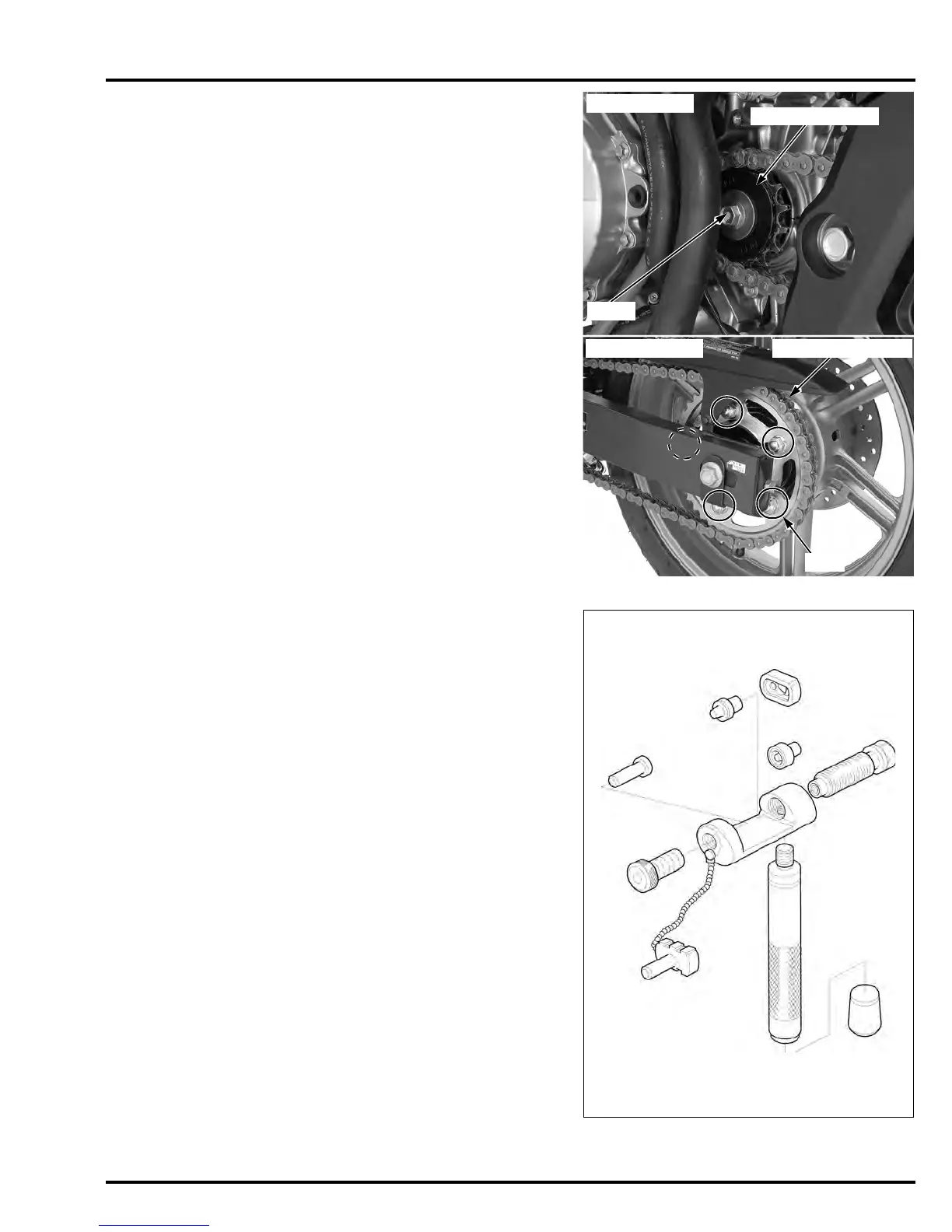

Remove the crankcase rear cover (page 7-4).
Check the attaching bolt and nuts on the drive and
driven sprockets.
Tighten the bolt or nut to the specified torque if nec-
essary.
REPLACEMENT
This motorcycle uses a drive chain with a staked
master link.
Loosen the drive chain (page 3-19).
Assemble the special tool as shown.
TORQUE:
Drive sprocket bolt: 54 N·m(5.5kg·m, 40 lbf·ft)
Driven sprocket nut: 108 N·m(11.0kgf·m, 80 lbf·ft)
BOLT
DRIVE SPROCKET
Drive sprocket:
Driven sprocket: DRIVEN SPROCKET
NUT
When using the
special tool, follow
the manufacturer's
instruction.
TOOL:
Drive chain tool set 07HMH-MR10103
