Load reset works best when the number of monitored loads
are between 2 and 30. If any monitored load is undersized or
stays in full cooling for any reason, reset will not occur. See
the Air Handling Systems Control Applications section and
the Chiller, Boiler, and Distribution System Control
Applications section for other load reset examples.
Zero Energy Band

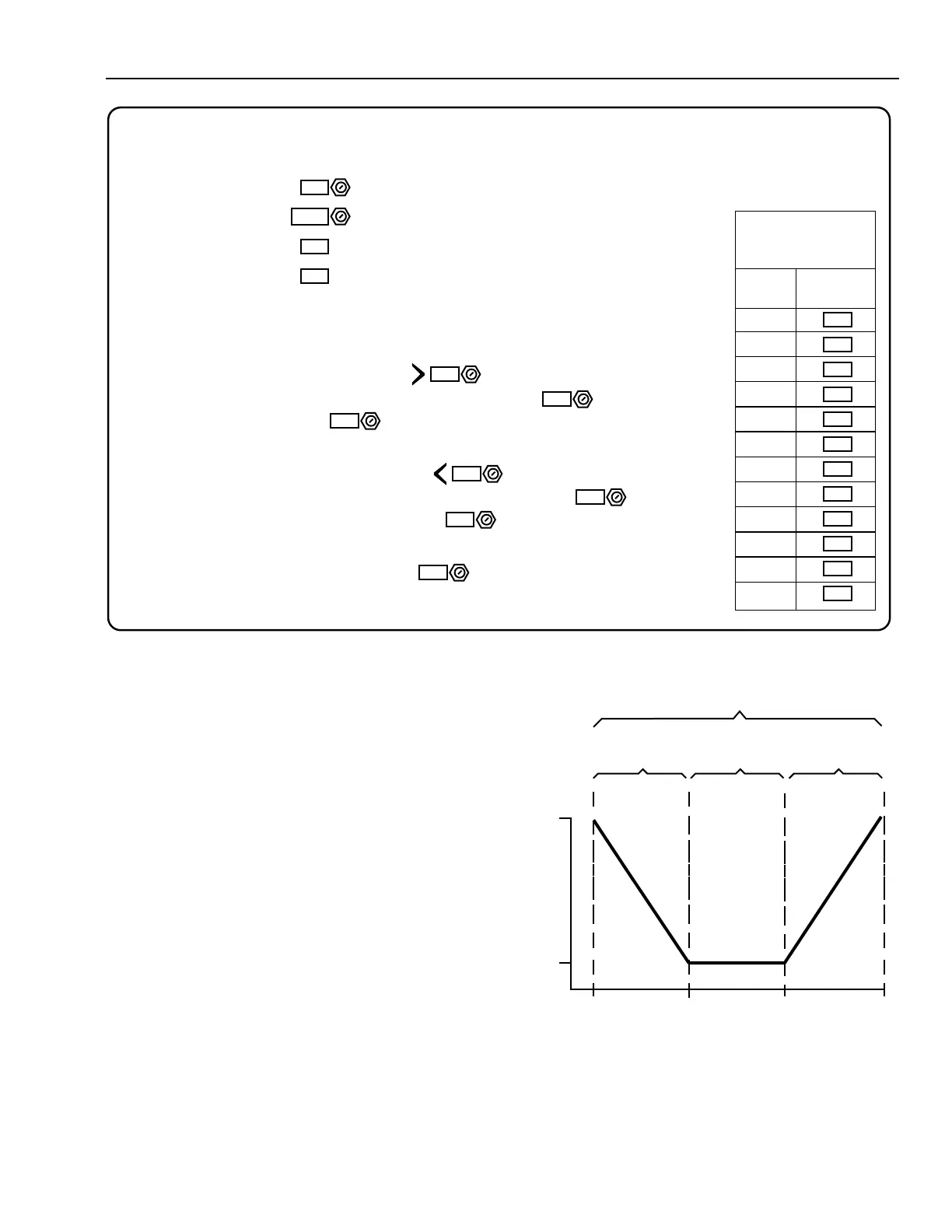

The zero energy band (Fig. 11) program provides a dead
band where neither heating nor cooling energy is used. This
limits energy use by allowing the space temperature to float
between minimum and maximum values. It also controls the
mixed-air dampers to use available outdoor air if suitable for
cooling. On multizone fan systems with simultaneous heating
and cooling load capability, zone load reset controls the hot
and cold deck temperature setpoints.
FULL
ON
FULL
OFF
70
73
75 78
TYPICAL SPACE TEMPERATURE RANGE (F)
HEATING
REGION
ZERO ENERGY
BAND
COOLING
REGION
HEATING COOLING
VENTILATION
ONLY
C2431
TOTAL COMFORT RANGE
Fig. 11. Zero Energy Band.
