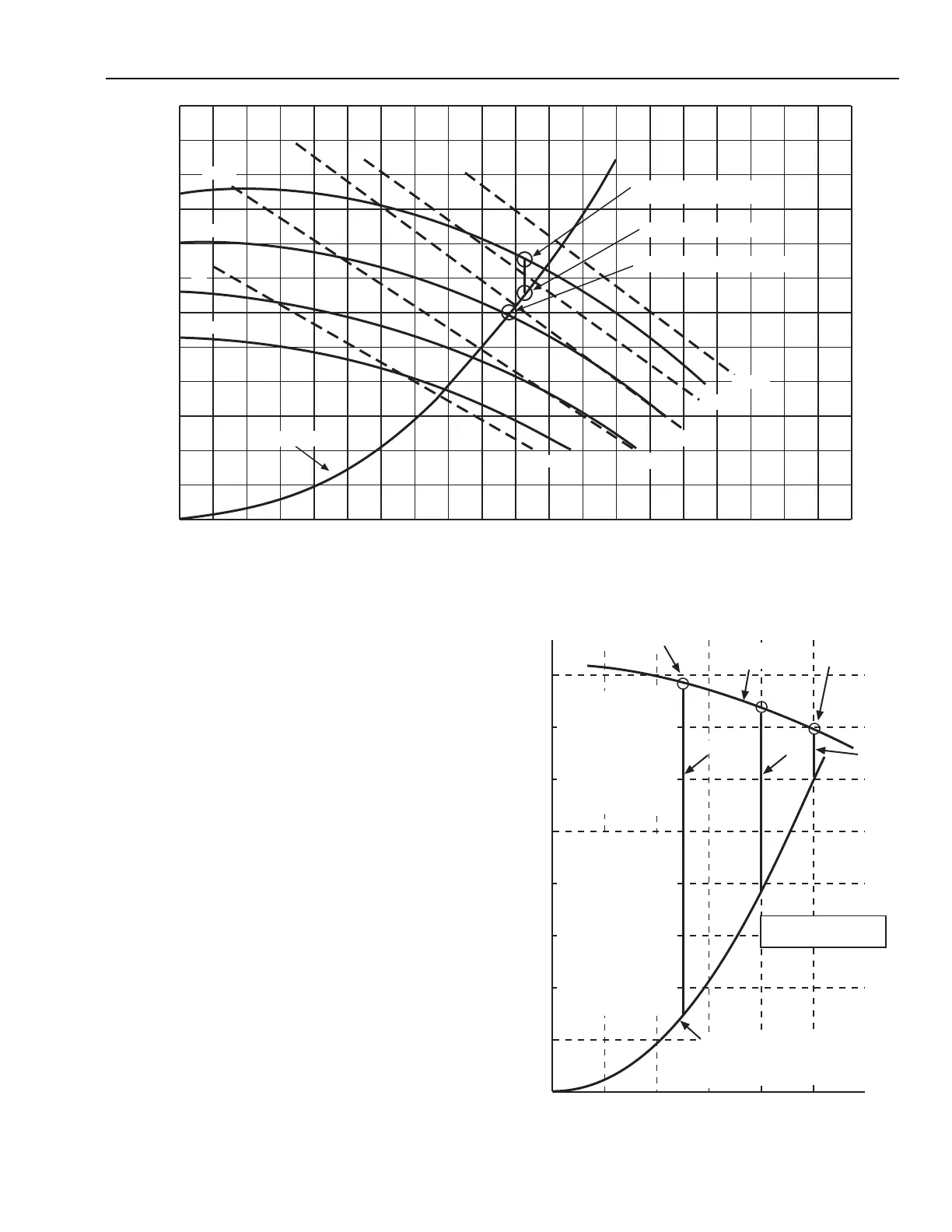

Fig. 57. Matching Pump to System.
Fig. 58. Pump and System Curves and Control Valves
To better understand system curves, pump curves, and flow
control, Figure 58 shows the control valve(s) (the only variable
element of a typical system curve) separately from the rest of
the system elements. Lines are shown for each of three valve
positions; full, 80 percent, and 50 percent flow. These lines,
when added to the curve for all other elements of the system
intersect the pump curve at the corresponding operating point(s).
Figure 58 shows a system with 500 gpm and 70 foot head at
design, 10 ft of which is a full open control valve at the end of
the piping run. Line “A” represents the control valve and
connects the pump curve to the static-element system curve. If
all control valves positioned to 80 percent flow, the pump head
rises, the static-element system resistance drops, and the control
valve, represented by line “B”, makes the difference; about 36
ft. Similarly, at 50 percent flow, the valve drop, represented by
line “C”, accounts for about 63 ft.
