5 Key features
5.5 Logging
Honeywell 2024
92
l

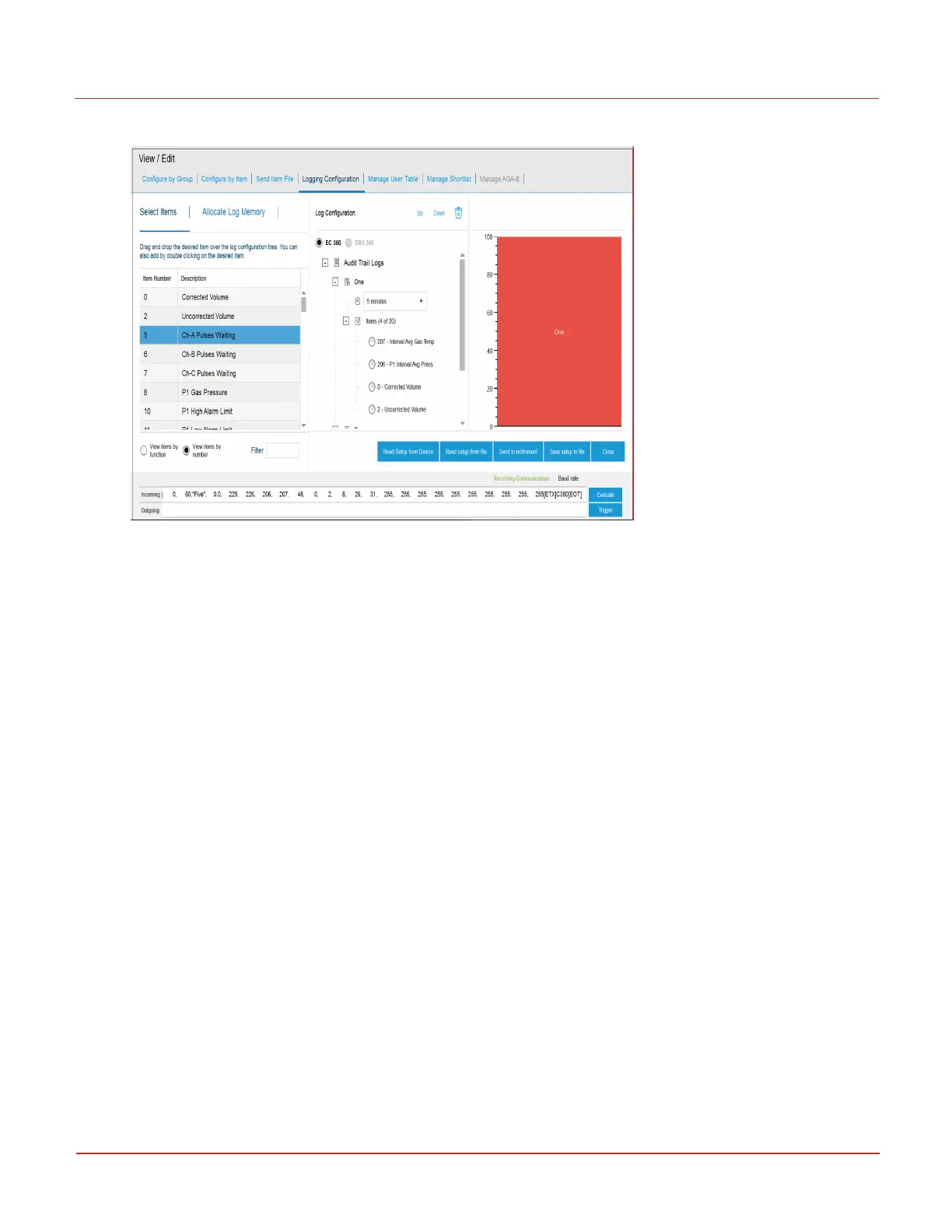

Drag and drop the desired items from the Select Items list over to the log configuration tree.
In order to remove an item from the log configuration tree, highlight it and press the
‘Delete’ key.
l
The order of the items in the Log Configuration list determines the order in which the values are
stored and thus the order in which they will later appear in a report. Items in the list can be
‘grabbed’ and moved up and down to change the order.
l
You can save a configuration for future reference to a configuration file (*.cnfg) with the Save setup
to file button. It can later be retrieved with the Read setup form file button. Only *.cnfg files can be
read; item files (*.ie3) are not compatible.
l
You can right click on the time interval displayed in the Log Configuration tree, to configure the
period at which log records are recorded.
