Running Firmware Upgrader
l
In the MasterLink Software Application SQL window, click Instrument > Firmware Upgrader .
The Firmware Upgrader dialog box appears.
l
To select the firmware file, click Browse and navigate to the path where the EC350 firmware file is
saved.
l
From the Serial Port list, select USB IrDA.
Ensure to select the proper serial port for communicating with EC350.
l
Select the Set instrument’s date and time check box.
l
Click Start Upgrade.
l
Click OK only if you have saved ALL (Calibration and non-Calibration) items in EC350.

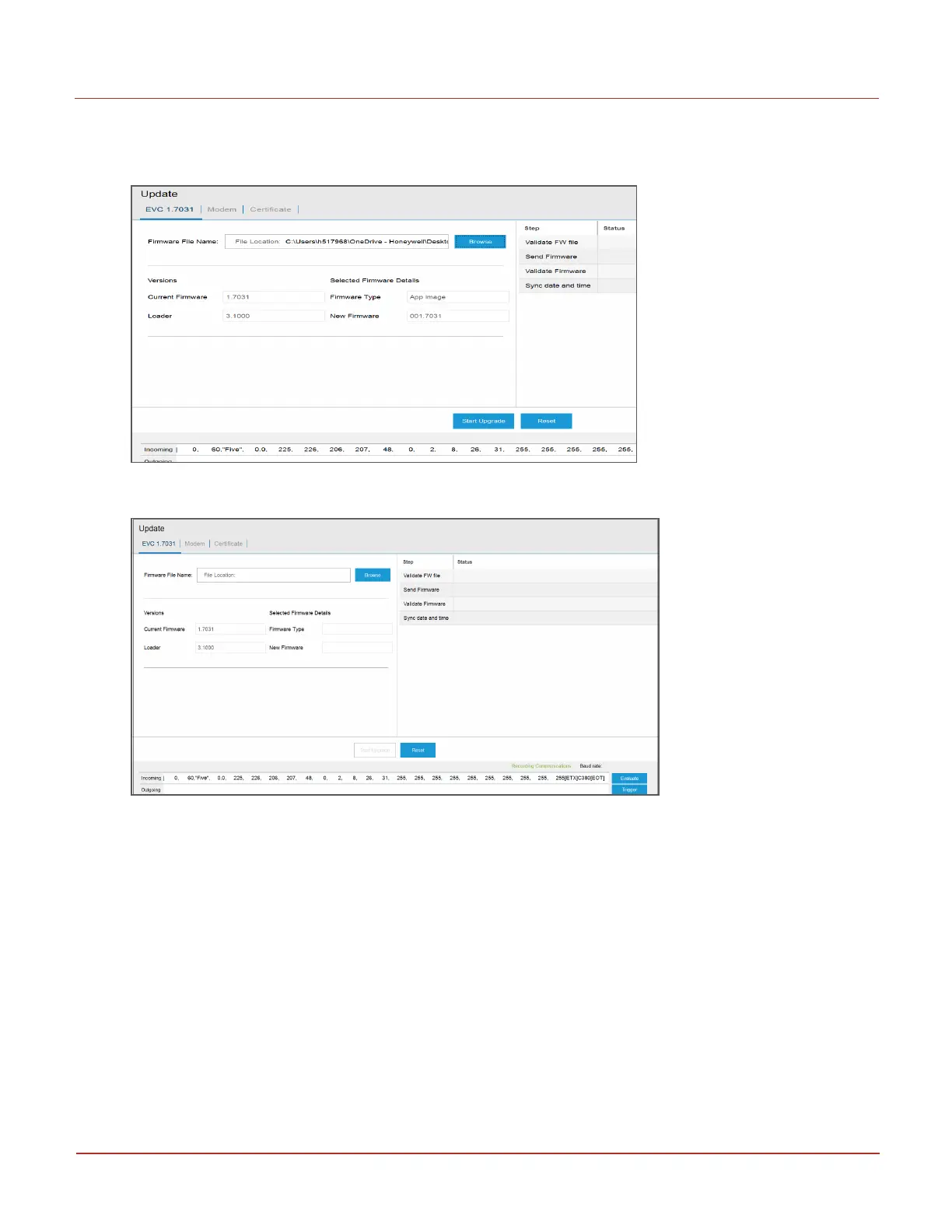

The program begins to load the new firmware and then validates its integrity. Once the firmware is
validated, the firmware is sent to the MasterLink Software Application SQL software, as illustrated in
the following image.
