Honeywell HH490 User Manual

HH490 User Guide 133

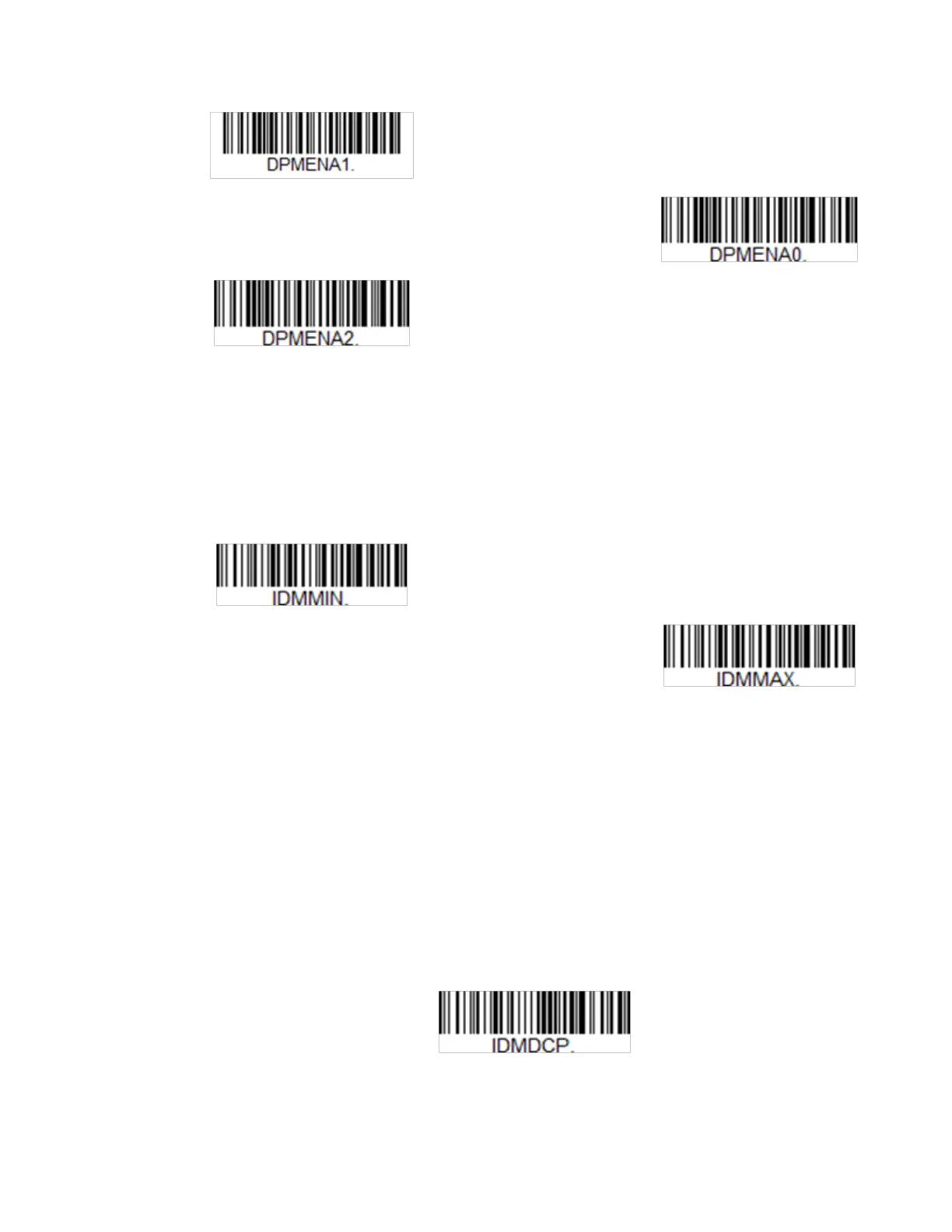

Dotpeen DPM Decoding
* Disable DPM Decoding
Reflective (Etched) DPM
Decoding
Data Matrix Message Length
Scan the barcodes below to change the message length. Refer to Message
Length Description (page 82) for additional information. Minimum and
Maximum lengths = 1-3116. Minimum Default = 1, Maximum Default = 3116.
Minimum Message Length
Maximum Message Length
Data Matrix Code Page
Data Matrix Code pages define the mapping of character codes to characters. If
the data received does not display with the proper characters, it may be because
the barcode being scanned was created using a code page that is different from
the one the host program is expecting. If this is the case, scan the barcode below,
select the code page with which the barcodes were created (see ISO 2022/ISO
646 Character Replacements on page 208), and scan the value and the Save
barcode from the Programming Chart, beginning on page 211. The data
characters should then appear properly.
Data Matrix Code Page

Honeywell HH490 Specifications

General

Duplex scanning	No
Maximum scan size	- mm
Optical scanning resolution	1280 x 800 DPI
Scanner type	Handheld scanner
Product color	White
Quantity per pack	1 pc(s)
Sensor type	-
Barcode reader	Yes
Daily duty cycle (max)	- pages
Storage temperature (T-T)	-40 - 60 °C
Operating temperature (T-T)	0 - 50 °C
Operating relative humidity (H-H)	0 - 95 %
Power supply type	DC
Optional connectivity	Serial (RS-232)

Weight and Dimensions

Depth	72.5 mm
Width	125 mm
Height	154 mm
Weight	130 g
