Honeywell HH490 User Manual

HH490 User Guide 5

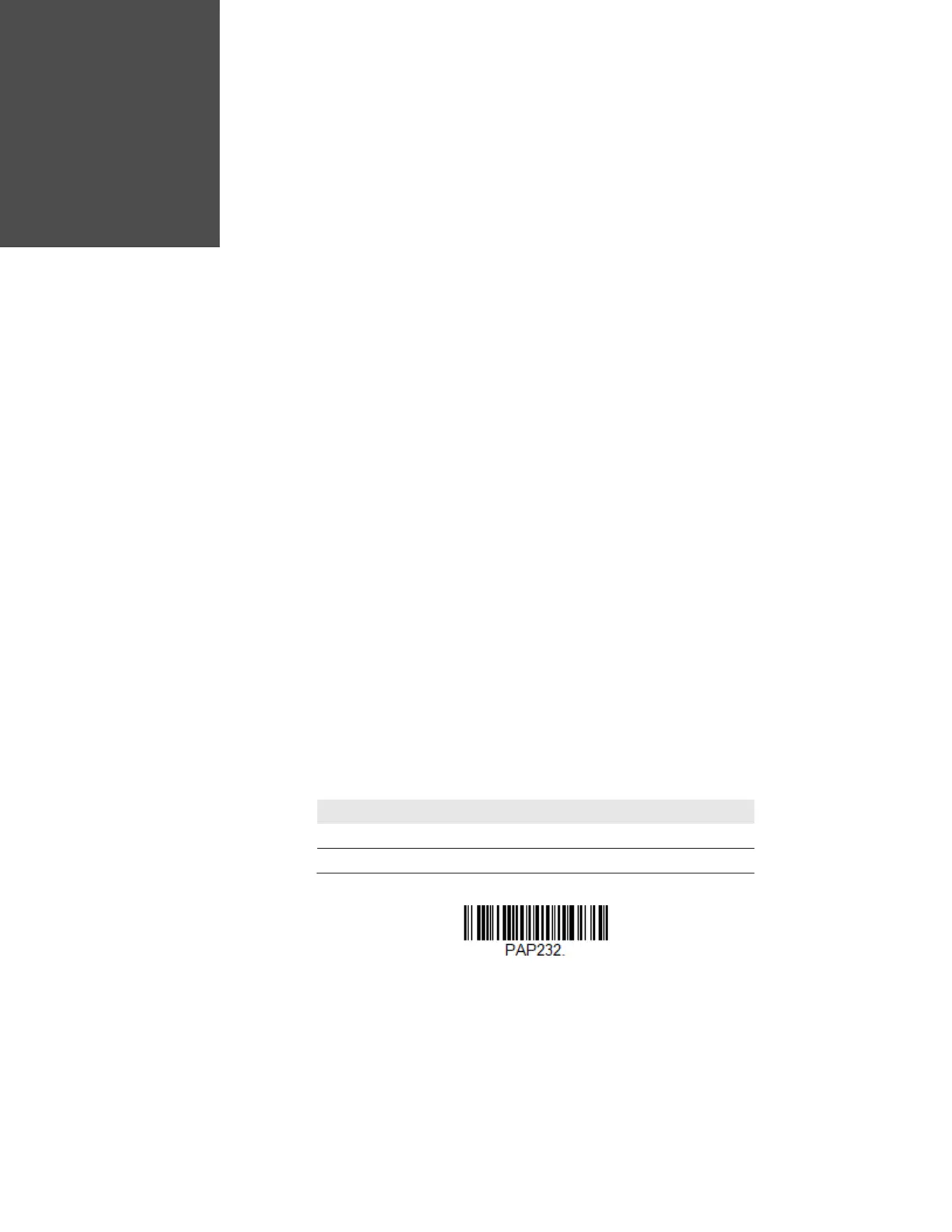

CHAPTER 2 - PROGRAM THE INTERFACE
Introduction
This chapter describes how to program your system for the desired interface.
Program the Interface - Plug and Play
Plug and Play barcodes provide instant scanner set up for commonly used
interfaces.
Note: After you scan one of the codes, power cycle the host terminal to have the interface
in effect.
RS232 Serial Port
The RS232 Interface barcode is used when connecting to the serial port of a PC
or terminal. The following RS232 Interface barcode also programs a carriage
return (CR) and a line feed (LF) suffix, baud rate, and data format as indicated
below. It also changes the trigger mode to manual.
Option Setting
Baud Rate 115,200 bps
Data Format 8 data bits, no parity bit, 1 stop bit
RS232 Interface
2
CHAPTER

Honeywell HH490 Specifications

General

Duplex scanning	No
Maximum scan size	- mm
Optical scanning resolution	1280 x 800 DPI
Scanner type	Handheld scanner
Product color	White
Quantity per pack	1 pc(s)
Sensor type	-
Barcode reader	Yes
Daily duty cycle (max)	- pages
Storage temperature (T-T)	-40 - 60 °C
Operating temperature (T-T)	0 - 50 °C
Operating relative humidity (H-H)	0 - 95 %
Power supply type	DC
Optional connectivity	Serial (RS-232)

Weight and Dimensions

Depth	72.5 mm
Width	125 mm
Height	154 mm
Weight	130 g
