RS232 Receiver Time-Out
RS232 Handshake
RS232 Handshaking allows control of data transmission from the scanner using
software commands from the host device. When RTS/CTS is turned Off, no data
flow control is used.
Flow Control, No Timeout: The scanner asserts RTS when it has data to send,
and will wait indefinitely for CTS to be asserted by the host.
Two-Direction Flow Control: The scanner asserts RTS when it is OK for the host
to transmit. The host asserts CTS when it is OK for the device to transmit.
Flow Control with Timeout: The scanner asserts RTS when it has data to send
and waits for a delay (see RS232 Timeout on page 37) for CTS to be asserted by
the host. If the delay time expires and CTS is not asserted, the device transmit
buffer is cleared and scanning may resume.
Default = RTS/CTS Off.

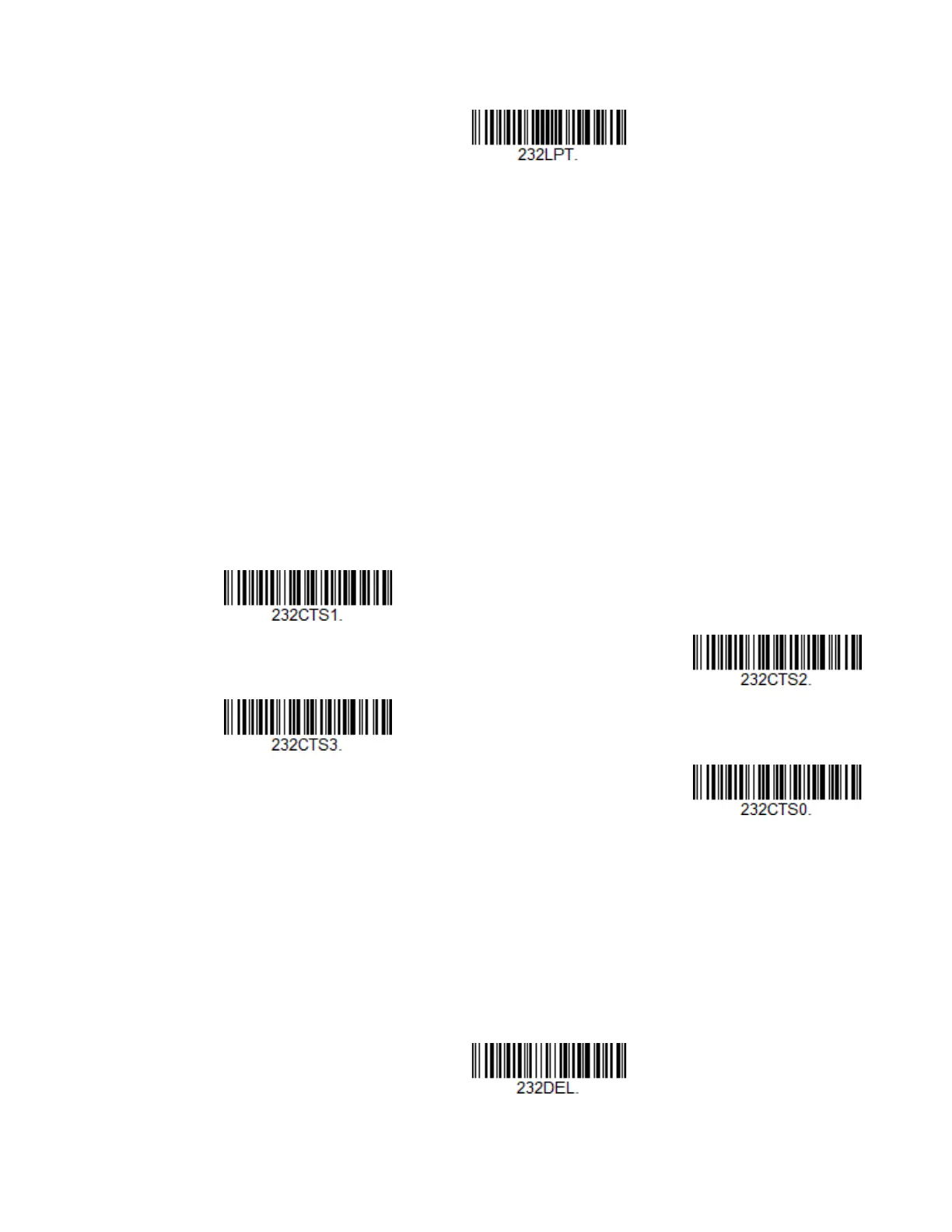

Flow Control, No Timeout
Two-Direction Flow Control
Flow Control with Timeout
* RTS/CTS Off
RS232 Timeout
When using Flow Control with Timeout, you must program the length of the
delay you want to wait for CTS from the host. Set the length (in milliseconds) for a
timeout by scanning the barcode below, then setting the timeout (from 1-5100
milliseconds) by scanning digits from the Programming Chart, beginning on
page 313, then scanning Save.
RS232 Timeout

Honeywell HH490 Specifications

General

Duplex scanning	No
Maximum scan size	- mm
Optical scanning resolution	1280 x 800 DPI
Scanner type	Handheld scanner
Product color	White
Quantity per pack	1 pc(s)
Sensor type	-
Barcode reader	Yes
Daily duty cycle (max)	- pages
Storage temperature (T-T)	-40 - 60 °C
Operating temperature (T-T)	0 - 50 °C
Operating relative humidity (H-H)	0 - 95 %
Power supply type	DC
Optional connectivity	Serial (RS-232)

Weight and Dimensions

Depth	72.5 mm
Width	125 mm
Height	154 mm
Weight	130 g
