156 HH490 User Guide

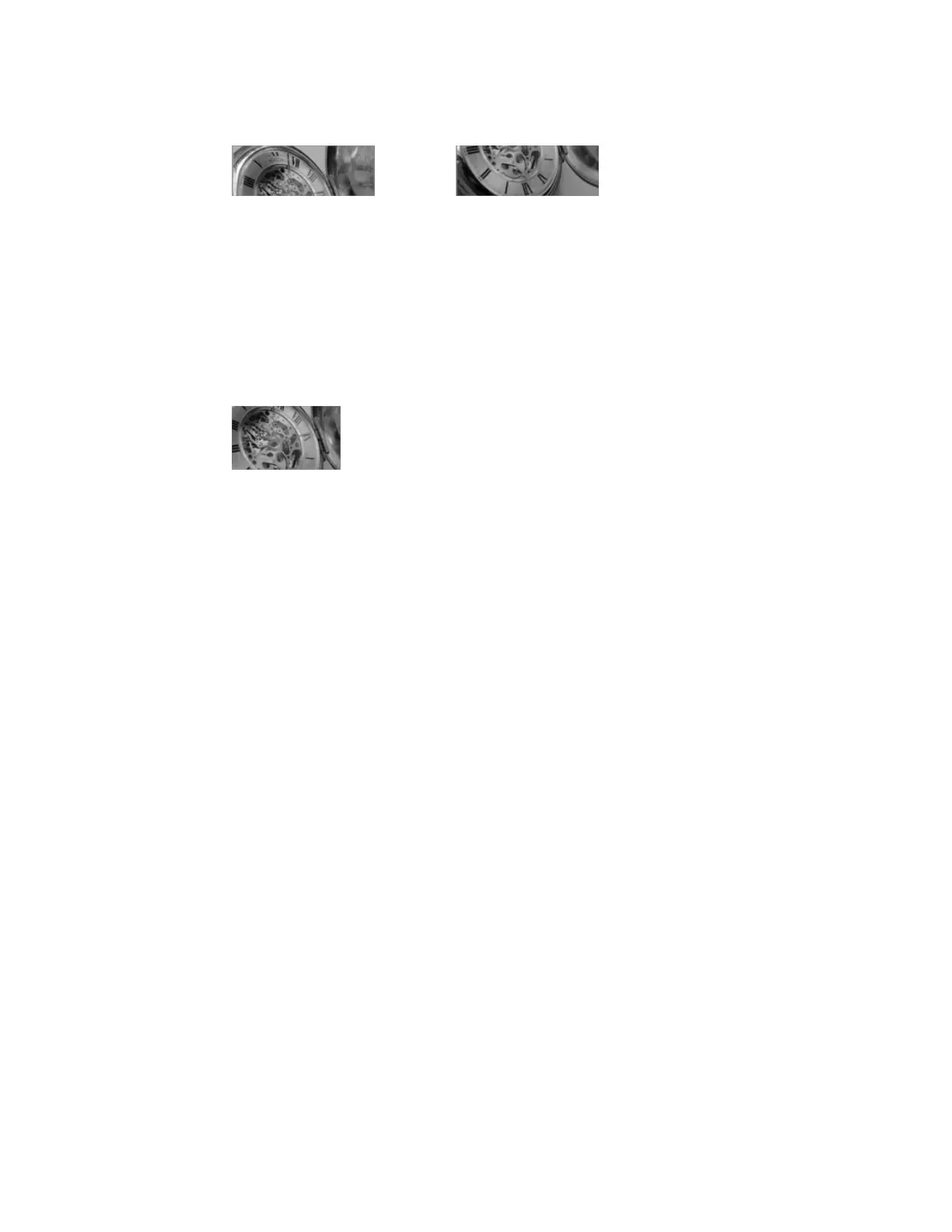

Image Crop set to 200B: Image Crop set to 200T:
Alternately, specify the number of pixels to cut from the outside margin of the
image; thus only the center pixels are transmitted.
n
M
Margin: cut
n
columns from the left,
n
+ 1 columns from the right,
n
rows from the top, and
n
+ 1 rows from the bottom of the image. Ship
the remaining center pixels. Range: 0 - 238.
(Default = 0, or full image)
Example:
Image Crop set to 238M:
P - Protocol
Used for shipping an image. Protocol covers two features of the image data being
sent to the host. It addresses the protocol used to send the data (Hmodem, which
is an Xmodem 1K variant that has additional header information), and the format
of the image data that is sent.
0P
2P
3P
None (raw data)
None
(default for USB)
Hmodem compressed
(default for RS232)
S - Pixel Ship
Pixel Ship sizes an image in proportion to its original size. It decimates the image
by shipping only certain, regularly spaced pixels.
Example: 4S would transmit every fourth pixel from every fourth line.
The smaller number of pixels shipped, the smaller the image, however, after a
certain point the image becomes unusable.
1S
2S
3S
ship every pixel
(default)
ship every 2nd pixel, both horizontally and vertically
ship every 3rd pixel, both horizontally and vertically
