Thor VM3 with Microsoft Windows Embedded Compact 7 User Guide 105

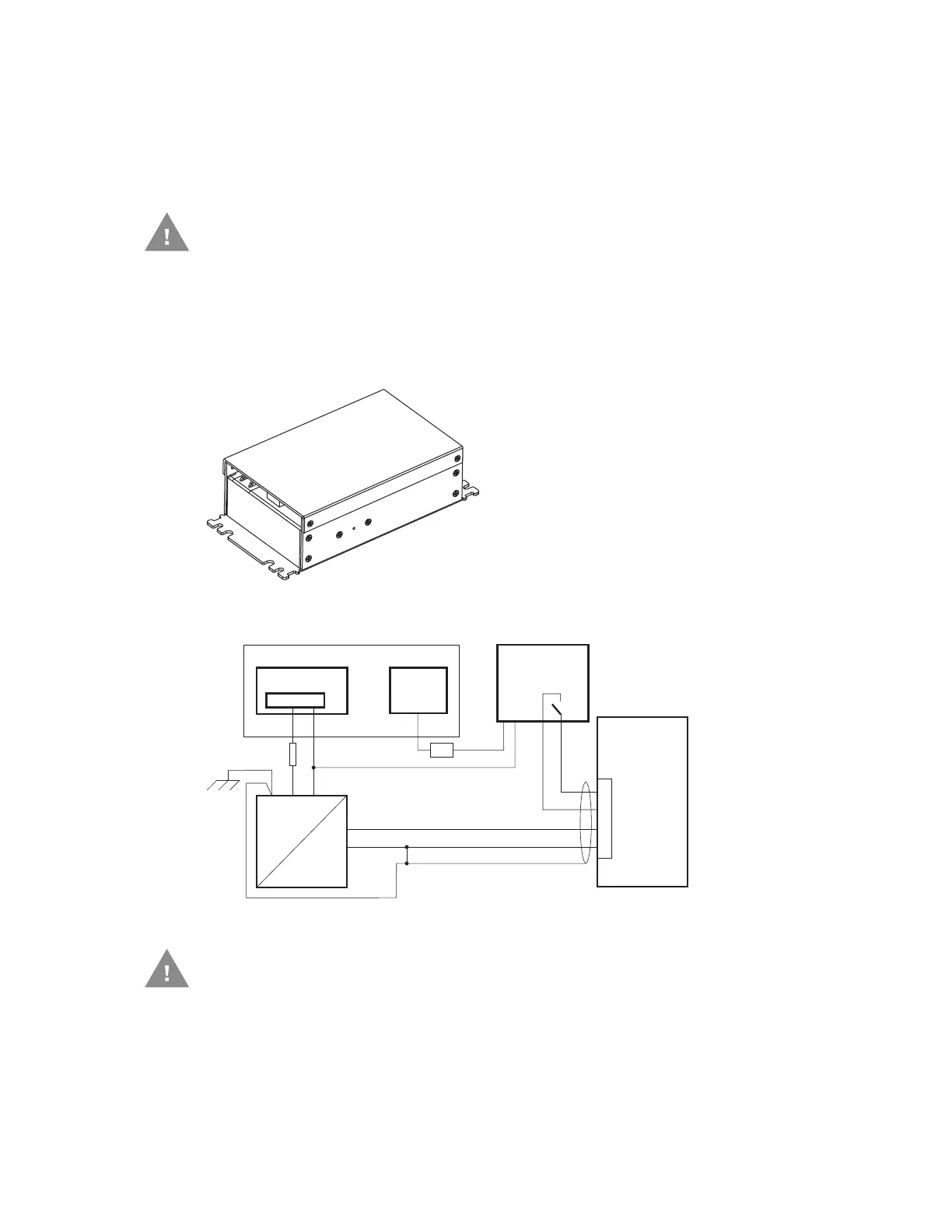

DC/DC Power Supply with Screws on Side of Lid
•VIN+ is connected to battery positive.
•Vi
N- must be connected to battery negative.
• GND must be connected to the vehicle chassis ground.
Caution: Inspect the cable shield to verify it is connected to chassis
ground. If there is no connection from the cable shield to
chassis ground, one must be added at this time. Use a jumper
wire to connect the cable shield to chassis ground as shown
below for the appropriate type of power supply installed on the
vehicle. A jumper wire, as shown in the illustrations below, may
be present to attach the chassis ground to the white wire of the
power cable. This wire is not necessary but can be left in place
if present. For proper screen blanking, verify the yellow and
green wires are attached to the screen blanking box as shown
in the illustrations below.
For this model, follow the diagram below to attach the power cable shield to
chassis ground:
Circular
Power
Connector
-Vi
-Vo
+Vo
5
6
1
3
-Vi
-Vo
+Vo
+Vi
GND
10A slow fuse
Close to power
source
Cable Shield
Existing Circuitry on Vehicle
Forklift Battery
Main Switch
Green
Yellow
Brown
White
DC/DC
Power
Supply
MOTION
CIRCUITRY
3A fuse
+Vi
GND
VMX004VMCRADLE
Vehicle Mount
Smart Dock
Caution: For battery powered vehicles:

Honeywell Thor VM3 Specifications

General

Stepping	D0
Tjunction	-40 °C
FSB Parity	No
Processor code	SR1X8
Processor cache	1 MB
Processor cores	2
Processor model	E3826
System bus rate	- GT/s
Processor family	Intel Atom®
Processor codename	Bay Trail
Processor frequency	1.46 GHz
Processor cache type	L2
Processor manufacturer	Intel
Processor package size	25 x 27 mm
Conflict-Free processor	Yes
Processor front side bus	- MHz
Processor operating modes	32-bit, 64-bit
Graphics & IMC lithography	22 nm
PCI Express configurations	1x1, 1x4, 2x1
Thermal Design Power (TDP)	7 W
Internal memory	4 GB
Internal memory type	DDR3-SDRAM
Storage media	Flash
Compatible memory cards	-
Internal storage capacity	64 GB
Display diagonal	12.1 \
Display brightness	900 cd/m²
Display resolution	1024 x 768 pixels
Graphics card	HD Graphics
Rear camera resolution (numeric)	- MP
Wi-Fi standards	802.11a, 802.11b, 802.11g
Bluetooth version	2.0+EDR
Top Wi-Fi standard	Wi-Fi 4 (802.11n)
HDMI ports quantity	0
USB 2.0 ports quantity	1
I/O ports	1x CAN-bus, RF
Processor ARK ID	78477
Processor socket	BGA 1170
Operating temperature (T-T)	-30 - 50 °C
Operating relative humidity (H-H)	5 - 95 %
Platform	Windows
Bundled software	Data Collection Engine, Microsoft Internet Explorer, Microsoft on-screen keyboard, Configuration Cloning Utility, Screen Blanking, Zoom Zone, Launcher
Operating system installed	Windows 7
AC adapter input voltage	90 - 240 V
Battery capacity	- mAh
Battery life (max)	0.5 h
Certification	EN 55024:2010, MIL-STD-810F, SAE-J1455, CCX
Device type	Tablet PC
Form factor	Slate
Product color	Grey, Silver
Protection features	Shock resistant, Vibration proof, Water resistant
International Protection (IP) code	IP66
Harmonized System (HS) code	84713000

Weight and Dimensions

Depth	62 mm
Width	318 mm
Height	260 mm
Weight	3000 g
