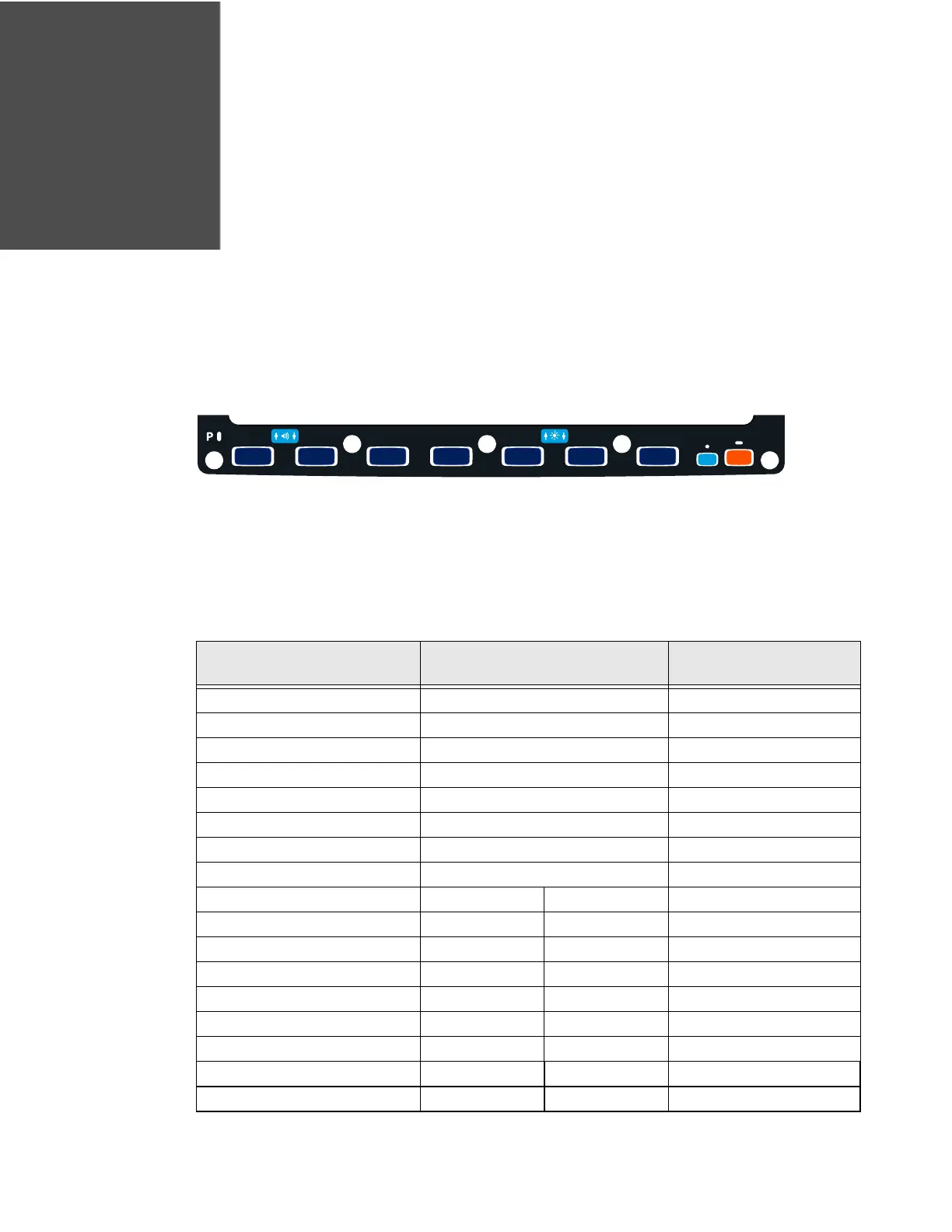

KEY MAPS
Integrated Keypad
There are seven integrated programmable keys located on the Thor VM3 below the dis-
play. Each programmable key can be modified by the Orange key for a total of 14 pro-
grammable keys.
See Keyboard Remapper to remap these keys.
The default values for these keys are:
To get this Programmable
Key
Press These Keys in this Order Default Key Value
P1 (Programmable key 1) P1 F1
P2 (Programmable key 2) P2 F2
P3 (Programmable key 3) P3 F3
P4 (Programmable key 4) P4 F4
P5 (Programmable key 5) P5 F5
P6 (Programmable key 6) P6 Open/Close Soft Keyboard
P7 (Programmable key 7) P7 Enter
P8 (Programmable key 8) Orange P1 <none>
P9 (Programmable key 9) Orange P2 <none>
P10 (Programmable key 10) Orange P3 <none>
P10 (Programmable key 11) Orange P4 <none>
P10 (Programmable key 12) Orange P5 <none>
P10 (Programmable key 13) Orange P6 <none>
P10 (Programmable key 14) Orange P7 <none>
Increase speaker volume Blue P1 Increase speaker volume
Decrease speaker volume Blue P2 Decrease speaker volume
P8
P1
P14
P7
P13
P6
P12
P5
P11
P4
P10
P3
P9
P2

Honeywell Thor VM3 Specifications

General

Stepping	D0
Tjunction	-40 °C
FSB Parity	No
Processor code	SR1X8
Processor cache	1 MB
Processor cores	2
Processor model	E3826
System bus rate	- GT/s
Processor family	Intel Atom®
Processor codename	Bay Trail
Processor frequency	1.46 GHz
Processor cache type	L2
Processor manufacturer	Intel
Processor package size	25 x 27 mm
Conflict-Free processor	Yes
Processor front side bus	- MHz
Processor operating modes	32-bit, 64-bit
Graphics & IMC lithography	22 nm
PCI Express configurations	1x1, 1x4, 2x1
Thermal Design Power (TDP)	7 W
Internal memory	4 GB
Internal memory type	DDR3-SDRAM
Storage media	Flash
Compatible memory cards	-
Internal storage capacity	64 GB
Display diagonal	12.1 \
Display brightness	900 cd/m²
Display resolution	1024 x 768 pixels
Graphics card	HD Graphics
Rear camera resolution (numeric)	- MP
Wi-Fi standards	802.11a, 802.11b, 802.11g
Bluetooth version	2.0+EDR
Top Wi-Fi standard	Wi-Fi 4 (802.11n)
HDMI ports quantity	0
USB 2.0 ports quantity	1
I/O ports	1x CAN-bus, RF
Processor ARK ID	78477
Processor socket	BGA 1170
Operating temperature (T-T)	-30 - 50 °C
Operating relative humidity (H-H)	5 - 95 %
Platform	Windows
Bundled software	Data Collection Engine, Microsoft Internet Explorer, Microsoft on-screen keyboard, Configuration Cloning Utility, Screen Blanking, Zoom Zone, Launcher
Operating system installed	Windows 7
AC adapter input voltage	90 - 240 V
Battery capacity	- mAh
Battery life (max)	0.5 h
Certification	EN 55024:2010, MIL-STD-810F, SAE-J1455, CCX
Device type	Tablet PC
Form factor	Slate
Product color	Grey, Silver
Protection features	Shock resistant, Vibration proof, Water resistant
International Protection (IP) code	IP66
Harmonized System (HS) code	84713000

Weight and Dimensions

Depth	62 mm
Width	318 mm
Height	260 mm
Weight	3000 g
