Honeywell Thor VM3 User Manual

Thor VM3 with Microsoft Windows Embedded Compact 7 User Guide 39
USB Keyboards
Two Honeywell ruggedized USB keyboards are available, 95-key alphanumeric and 21-
key numeric.

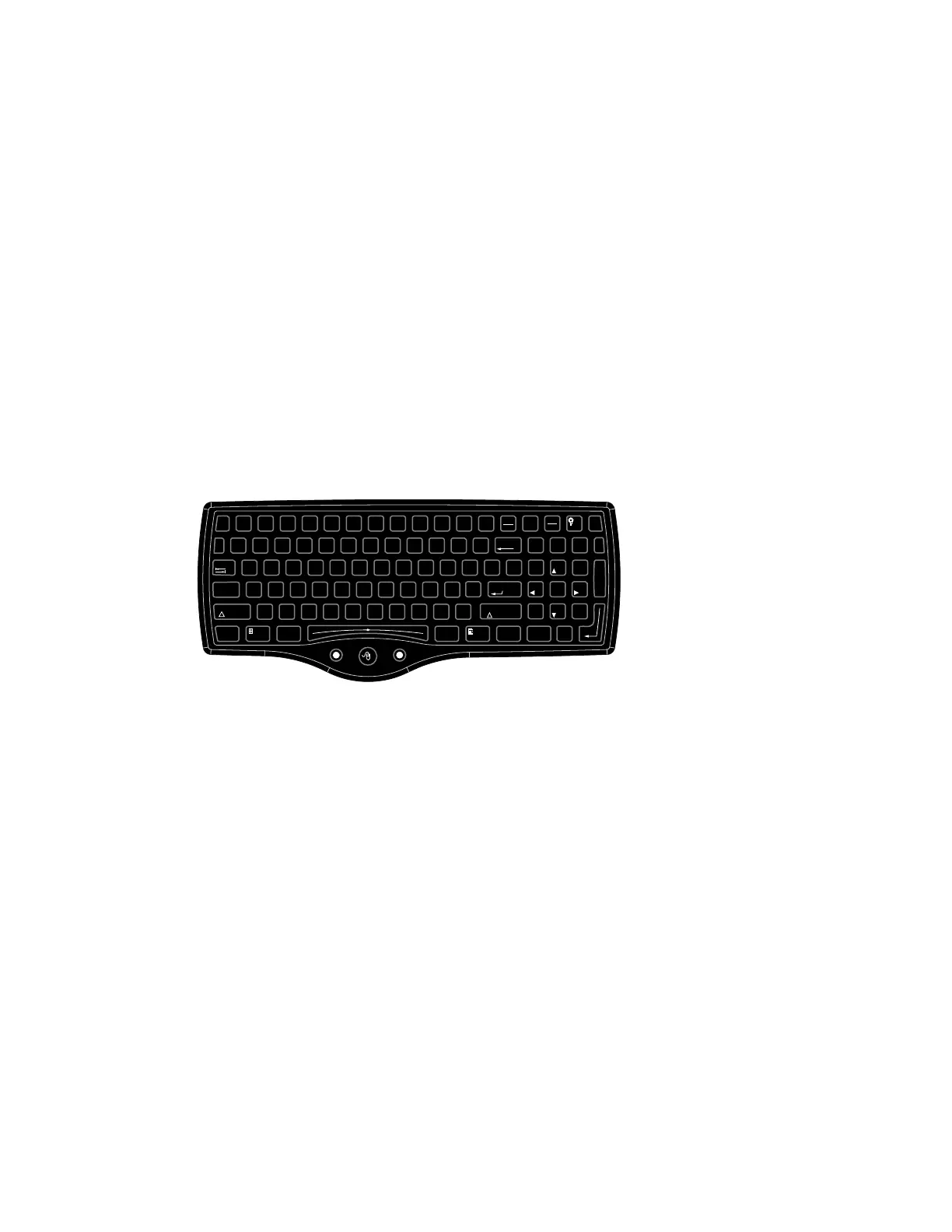

95-Key USB Keyboard
The 95-key USB keyboard may have any of the following markings on the decal on the
back of the keyboard:
• 164288-0001
•95 KEY USB
• 9000160KEYBRD
If the keyboard looks similar but has a different part number refer to 95-key PS/2
Keyboard.
If the keyboard is labeled as 164288-0001 Revision B (or greater) the keyboard has
sticky keys for Alt, Ctrl and Shift. These keys will remain active for the next keypress. Ear-
lier versions of this keyboard (Revision A) do not have sticky keys implemented.
The Thor VM3 uses an optional rugged QWERTY 95 key keyboard, designed for ease of
use with the Windows operating system. The USB keyboard connects directly to the D9
USB connector (Standard Dock) or USB1 connector (Enhanced Dock).
• The 95 key keyboard supports all 104 keyboard functions (101 standard keyboard
plus Windows keys) and includes an integrated pointing device and left and right
mouse buttons. However, because the keyboard only has 95 keys, all functions are
not visible (or printed on the keyboard). Therefore the keyboard supports what is
called hidden keys - keys that are accessible but not visible on the keyboard.
• The 95 key keyboard keys are backlit. The keyboard backlight is manually controlled.
Keyboard Backlight
The keyboard backlight key in the top right hand corner has a light bulb icon.
The keyboard keys are backlit. The keyboard backlight is manually controlled using the
backlight key in the upper right hand corner of the keyboard. Pressing the backlight key
cycles the keyboard backlight through the levels of backlight intensity: Off, Low inten-
sity, Medium intensity, Maximum intensity, Off, etc. When the Thor VM3 is powered on,
the keyboard backlight defaults to Off.
Esc
F2 F3 F4
F5
F6
F7
F8 F9 F10
F11
F12
Print
Screen
SysRq
Scroll
Lock
Pause
Break
Fn
`
1234567890
-
=
BackSpace
Num
Lock
/
*
-
Tab
QWE R T Y U I O P
[]
\
{}
|
789
456
12
0
3
Home PgUp
Caps
ASDFGHJ KL
;
'
:
"
Enter
Ctrl Alt
XCVB
N
M
,.
/
<>
?
Shift
Alt Ctrl
Ins
End PgDn
+
~
!
@
#
$%
^
&
*
(
)
_
+
Lock
Shift
Z
L
R
Enter
.
Del
F1

Honeywell Thor VM3 Specifications

General

Stepping	D0
Tjunction	-40 °C
FSB Parity	No
Processor code	SR1X8
Processor cache	1 MB
Processor cores	2
Processor model	E3826
System bus rate	- GT/s
Processor family	Intel Atom®
Processor codename	Bay Trail
Processor frequency	1.46 GHz
Processor cache type	L2
Processor manufacturer	Intel
Processor package size	25 x 27 mm
Conflict-Free processor	Yes
Processor front side bus	- MHz
Processor operating modes	32-bit, 64-bit
Graphics & IMC lithography	22 nm
PCI Express configurations	1x1, 1x4, 2x1
Thermal Design Power (TDP)	7 W
Internal memory	4 GB
Internal memory type	DDR3-SDRAM
Storage media	Flash
Compatible memory cards	-
Internal storage capacity	64 GB
Display diagonal	12.1 \
Display brightness	900 cd/m²
Display resolution	1024 x 768 pixels
Graphics card	HD Graphics
Rear camera resolution (numeric)	- MP
Wi-Fi standards	802.11a, 802.11b, 802.11g
Bluetooth version	2.0+EDR
Top Wi-Fi standard	Wi-Fi 4 (802.11n)
HDMI ports quantity	0
USB 2.0 ports quantity	1
I/O ports	1x CAN-bus, RF
Processor ARK ID	78477
Processor socket	BGA 1170
Operating temperature (T-T)	-30 - 50 °C
Operating relative humidity (H-H)	5 - 95 %
Platform	Windows
Bundled software	Data Collection Engine, Microsoft Internet Explorer, Microsoft on-screen keyboard, Configuration Cloning Utility, Screen Blanking, Zoom Zone, Launcher
Operating system installed	Windows 7
AC adapter input voltage	90 - 240 V
Battery capacity	- mAh
Battery life (max)	0.5 h
Certification	EN 55024:2010, MIL-STD-810F, SAE-J1455, CCX
Device type	Tablet PC
Form factor	Slate
Product color	Grey, Silver
Protection features	Shock resistant, Vibration proof, Water resistant
International Protection (IP) code	IP66
Harmonized System (HS) code	84713000

Weight and Dimensions

Depth	62 mm
Width	318 mm
Height	260 mm
Weight	3000 g
