Keypad Backlight
By default, the integrated keypad backlight follows the display backlight. The integrated
keypad backlight can be disabled.
To change this behavior, see the Misc tab of the Options control panel.
The external USB keyboard backlight is manually controlled.
Speaker Volume
The speaker volume can be adjusted via the Thor VM3 keypad:
1. Press the Blue key to enter Blue mode
2. Press the P1 key to increase speaker volume or the P2 key to decrease speaker
volume.
3. Press the Blue key to exit Blue mode.
The current volume level can be viewed on the Mixer control panel. This control panel
can also be used to adjust speaker volume.
Power Up
The dock has a power switch on the back.
The “On” side of this rocker switch has a raised bump to allow the state of the switch to
be determined when the switch may not be easily viewed, for example, after the dock is
mounted in a vehicle.
After external power has been connected and the Thor VM3 has been mounted in the
dock, press the side of the power switch with the raised bump to pass power from the
dock to the Thor VM3.
Next locate the power button on the front of the Thor VM3.
If a USB drive, such as a thumb drive is attached to the Thor VM3, the device
may attempt to boot from the USB drive. Remove the USB drive and power
up the Thor VM3 again.

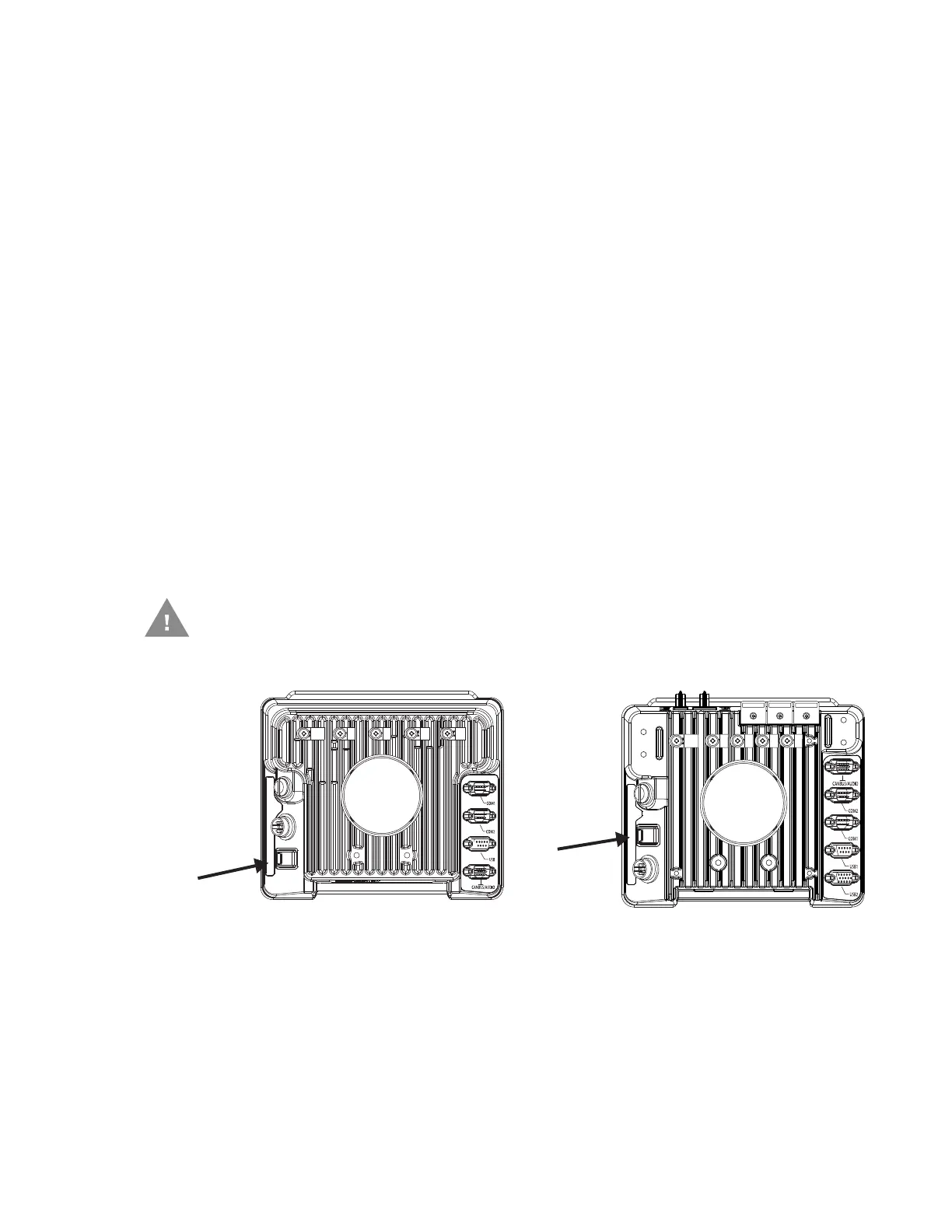

Standard Dock Enhanced Dock

Honeywell Thor VM3 Specifications

General

Stepping	D0
Tjunction	-40 °C
FSB Parity	No
Processor code	SR1X8
Processor cache	1 MB
Processor cores	2
Processor model	E3826
System bus rate	- GT/s
Processor family	Intel Atom®
Processor codename	Bay Trail
Processor frequency	1.46 GHz
Processor cache type	L2
Processor manufacturer	Intel
Processor package size	25 x 27 mm
Conflict-Free processor	Yes
Processor front side bus	- MHz
Processor operating modes	32-bit, 64-bit
Graphics & IMC lithography	22 nm
PCI Express configurations	1x1, 1x4, 2x1
Thermal Design Power (TDP)	7 W
Internal memory	4 GB
Internal memory type	DDR3-SDRAM
Storage media	Flash
Compatible memory cards	-
Internal storage capacity	64 GB
Display diagonal	12.1 \
Display brightness	900 cd/m²
Display resolution	1024 x 768 pixels
Graphics card	HD Graphics
Rear camera resolution (numeric)	- MP
Wi-Fi standards	802.11a, 802.11b, 802.11g
Bluetooth version	2.0+EDR
Top Wi-Fi standard	Wi-Fi 4 (802.11n)
HDMI ports quantity	0
USB 2.0 ports quantity	1
I/O ports	1x CAN-bus, RF
Processor ARK ID	78477
Processor socket	BGA 1170
Operating temperature (T-T)	-30 - 50 °C
Operating relative humidity (H-H)	5 - 95 %
Platform	Windows
Bundled software	Data Collection Engine, Microsoft Internet Explorer, Microsoft on-screen keyboard, Configuration Cloning Utility, Screen Blanking, Zoom Zone, Launcher
Operating system installed	Windows 7
AC adapter input voltage	90 - 240 V
Battery capacity	- mAh
Battery life (max)	0.5 h
Certification	EN 55024:2010, MIL-STD-810F, SAE-J1455, CCX
Device type	Tablet PC
Form factor	Slate
Product color	Grey, Silver
Protection features	Shock resistant, Vibration proof, Water resistant
International Protection (IP) code	IP66
Harmonized System (HS) code	84713000

Weight and Dimensions

Depth	62 mm
Width	318 mm
Height	260 mm
Weight	3000 g
