122 Thor VM3 with Microsoft Windows Embedded Compact 7 User Guide
Apply Touch Screen Protective Film
The optional Thor VM3 touch screen protective film is shipped in packs of 10. The pro-
tective film is flexible and treated with an anti-glare coating on the outer surface.
Installation
1. Make sure the touch screen is clean and dry before installation. See Cleaning for
instructions on suitable cleaning agents.
2. Pull the release tab to separate the protective backing from the rear of the protective
film. Avoid touching the rear side of the protective film while removing the liner.
3. Place the rear side of the protective film against the Thor VM3 display, roughly
centering the protective film over the display.
4. Slide the protective film until one corner can be slid back between the touch screen
and the display housing as the protective film is re-centered on the display. It may
be necessary to press the edges of the protective film against the display to ensure
the entire edge slides under the display housing. It is easiest to start with one of the
bottom corners.
5. Slide the protective film away from the other bottom corner. The film may bulge
slightly away from the Thor VM3 as it is being slid. Only slide the protective film
enough so that the protective film can slide under the display housing on that
corner when the protective film is returned to center.
6. Repeat with each of the top corners, sliding the protective film away from the corner
just enough that the protective film can slide under the display housing when the
protective film is returned to center.
7. It may be necessary to flex the protective film during the install, however use care
not to flex the protective film so much that the protective film kinks.
8. Once all corners are secure under the display housing, adjust the protective film, if
necessary, so it is centered on the touch screen.

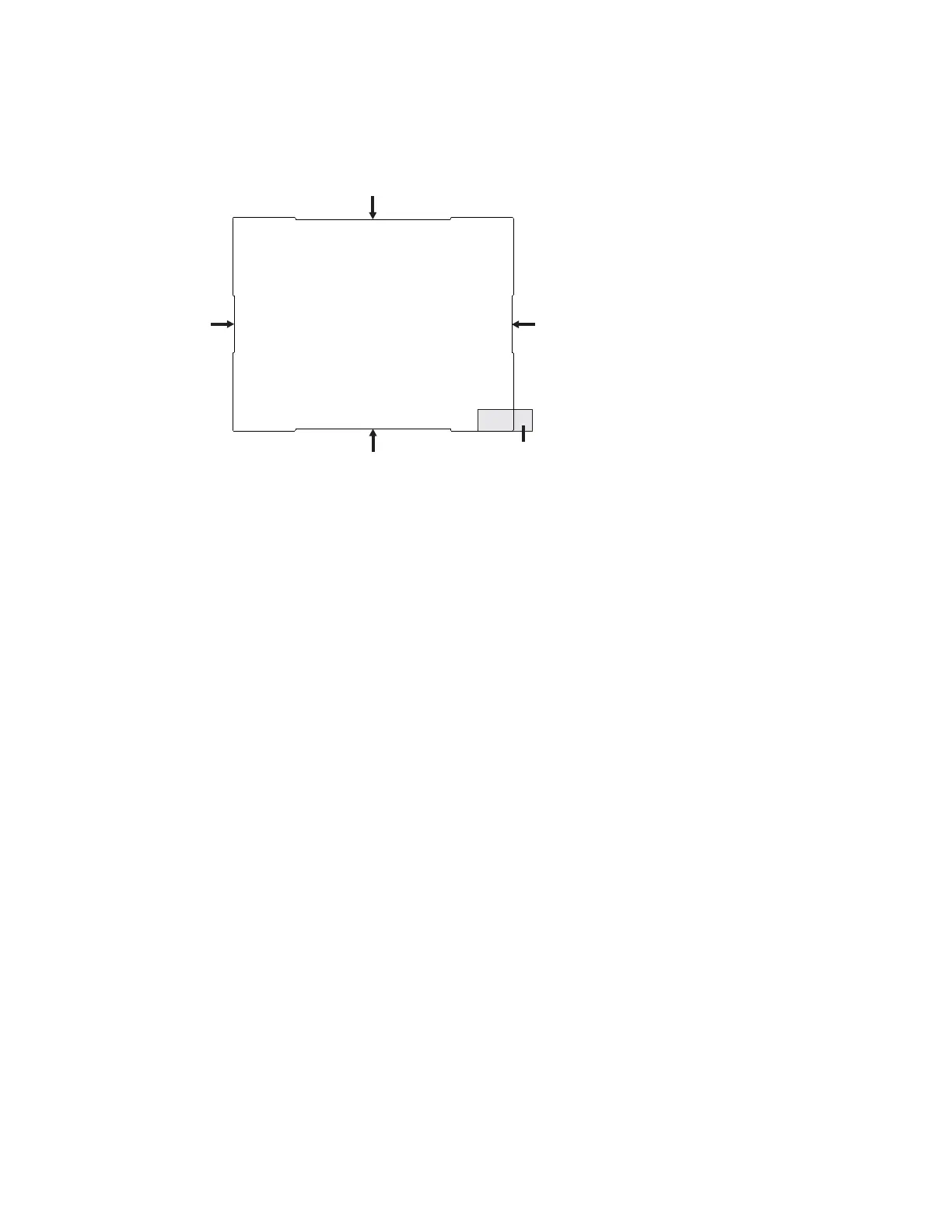

The protective film is slightly larger than
the Thor VM3 touch screen, however the
notches on the edge of the protective
film (indicated by the arrows) corre-
spond to the display size of the Thor
VM3. The protective film is not adhesive.
The corner edges are designed to fit
between the Thor VM3 display and the
display housing to hold the protective
film in place.
A protective backing is applied to the
rear surface of the protective film. A pull
tab is attached to the protective backing
for easy removal of the protective back-
ing from the film.
Pull Tab

Honeywell Thor VM3 Specifications

General

Stepping	D0
Tjunction	-40 °C
FSB Parity	No
Processor code	SR1X8
Processor cache	1 MB
Processor cores	2
Processor model	E3826
System bus rate	- GT/s
Processor family	Intel Atom®
Processor codename	Bay Trail
Processor frequency	1.46 GHz
Processor cache type	L2
Processor manufacturer	Intel
Processor package size	25 x 27 mm
Conflict-Free processor	Yes
Processor front side bus	- MHz
Processor operating modes	32-bit, 64-bit
Graphics & IMC lithography	22 nm
PCI Express configurations	1x1, 1x4, 2x1
Thermal Design Power (TDP)	7 W
Internal memory	4 GB
Internal memory type	DDR3-SDRAM
Storage media	Flash
Compatible memory cards	-
Internal storage capacity	64 GB
Display diagonal	12.1 \
Display brightness	900 cd/m²
Display resolution	1024 x 768 pixels
Graphics card	HD Graphics
Rear camera resolution (numeric)	- MP
Wi-Fi standards	802.11a, 802.11b, 802.11g
Bluetooth version	2.0+EDR
Top Wi-Fi standard	Wi-Fi 4 (802.11n)
HDMI ports quantity	0
USB 2.0 ports quantity	1
I/O ports	1x CAN-bus, RF
Processor ARK ID	78477
Processor socket	BGA 1170
Operating temperature (T-T)	-30 - 50 °C
Operating relative humidity (H-H)	5 - 95 %
Platform	Windows
Bundled software	Data Collection Engine, Microsoft Internet Explorer, Microsoft on-screen keyboard, Configuration Cloning Utility, Screen Blanking, Zoom Zone, Launcher
Operating system installed	Windows 7
AC adapter input voltage	90 - 240 V
Battery capacity	- mAh
Battery life (max)	0.5 h
Certification	EN 55024:2010, MIL-STD-810F, SAE-J1455, CCX
Device type	Tablet PC
Form factor	Slate
Product color	Grey, Silver
Protection features	Shock resistant, Vibration proof, Water resistant
International Protection (IP) code	IP66
Harmonized System (HS) code	84713000

Weight and Dimensions

Depth	62 mm
Width	318 mm
Height	260 mm
Weight	3000 g
