Honeywell Thor VM3 User Manual

34 Thor VM3 with Microsoft Windows Embedded Compact 7 User Guide
External Connectors
Power the Thor VM3 off before attaching a cable to any port (serial, USB, Audio/CAN,
etc.).
The external I/O connectors for the Thor VM3 are located on the right side of the dock
(when viewed from the back).
The Power Supply Connector is on the left side of the dock (when viewed from the back).
Antenna connectors are located on the top rear of the Thor VM3.
Serial Connector (COM1 and COM2)
Screen Blanking
The screen blanking signal can be provided either by a Honeywell Screen Blanking Box
or a user supplied switch or relay. See Screen Blanking for information on connecting
screen blanking accessories.

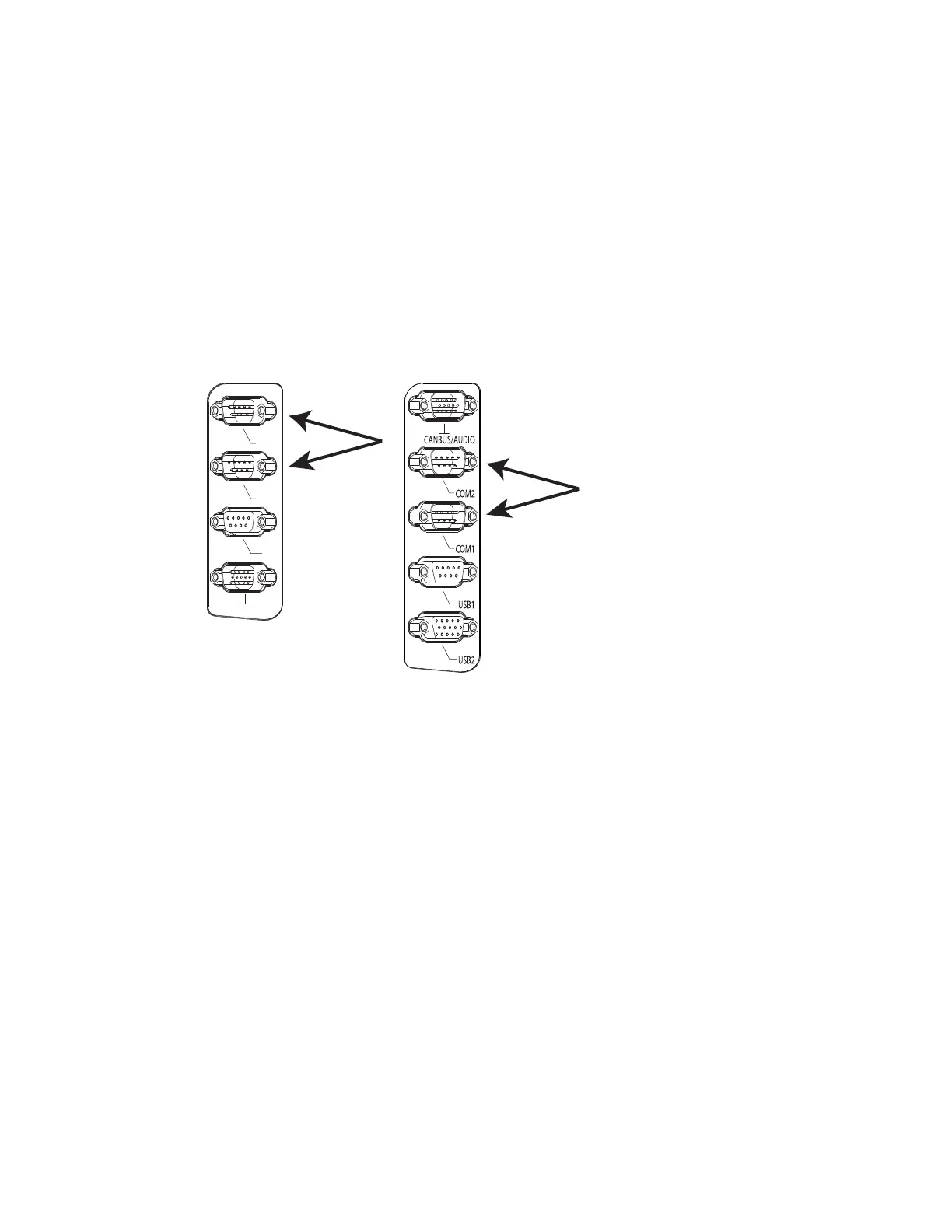

Standard Dock
Enhanced Dock
The COM1 and COM2 connectors
are D-9 male connectors located on
the back of the dock.
Power the Thor VM3 off before
attaching a cable to any port (serial,
USB, Audio/CAN, etc.).
The serial connectors are industry-
standard RS-232, PC/AT standard
9–pin “D” male connector. See
COM1 and COM2 Connector for
connector pinout detail.
See Connect Serial Device for more
information.
If a COM port is not being used for a
scanner, it can be used for Screen
Blanking when the vehicle is in
motion.
COM1
COM2
USB
CANBUS/AUDIO

Honeywell Thor VM3 Specifications

General

Stepping	D0
Tjunction	-40 °C
FSB Parity	No
Processor code	SR1X8
Processor cache	1 MB
Processor cores	2
Processor model	E3826
System bus rate	- GT/s
Processor family	Intel Atom®
Processor codename	Bay Trail
Processor frequency	1.46 GHz
Processor cache type	L2
Processor manufacturer	Intel
Processor package size	25 x 27 mm
Conflict-Free processor	Yes
Processor front side bus	- MHz
Processor operating modes	32-bit, 64-bit
Graphics & IMC lithography	22 nm
PCI Express configurations	1x1, 1x4, 2x1
Thermal Design Power (TDP)	7 W
Internal memory	4 GB
Internal memory type	DDR3-SDRAM
Storage media	Flash
Compatible memory cards	-
Internal storage capacity	64 GB
Display diagonal	12.1 \
Display brightness	900 cd/m²
Display resolution	1024 x 768 pixels
Graphics card	HD Graphics
Rear camera resolution (numeric)	- MP
Wi-Fi standards	802.11a, 802.11b, 802.11g
Bluetooth version	2.0+EDR
Top Wi-Fi standard	Wi-Fi 4 (802.11n)
HDMI ports quantity	0
USB 2.0 ports quantity	1
I/O ports	1x CAN-bus, RF
Processor ARK ID	78477
Processor socket	BGA 1170
Operating temperature (T-T)	-30 - 50 °C
Operating relative humidity (H-H)	5 - 95 %
Platform	Windows
Bundled software	Data Collection Engine, Microsoft Internet Explorer, Microsoft on-screen keyboard, Configuration Cloning Utility, Screen Blanking, Zoom Zone, Launcher
Operating system installed	Windows 7
AC adapter input voltage	90 - 240 V
Battery capacity	- mAh
Battery life (max)	0.5 h
Certification	EN 55024:2010, MIL-STD-810F, SAE-J1455, CCX
Device type	Tablet PC
Form factor	Slate
Product color	Grey, Silver
Protection features	Shock resistant, Vibration proof, Water resistant
International Protection (IP) code	IP66
Harmonized System (HS) code	84713000

Weight and Dimensions

Depth	62 mm
Width	318 mm
Height	260 mm
Weight	3000 g
