Honeywell Thor VM3 User Manual

212 Thor VM3 with Microsoft Windows Embedded Compact 7 User Guide
ZoomZone

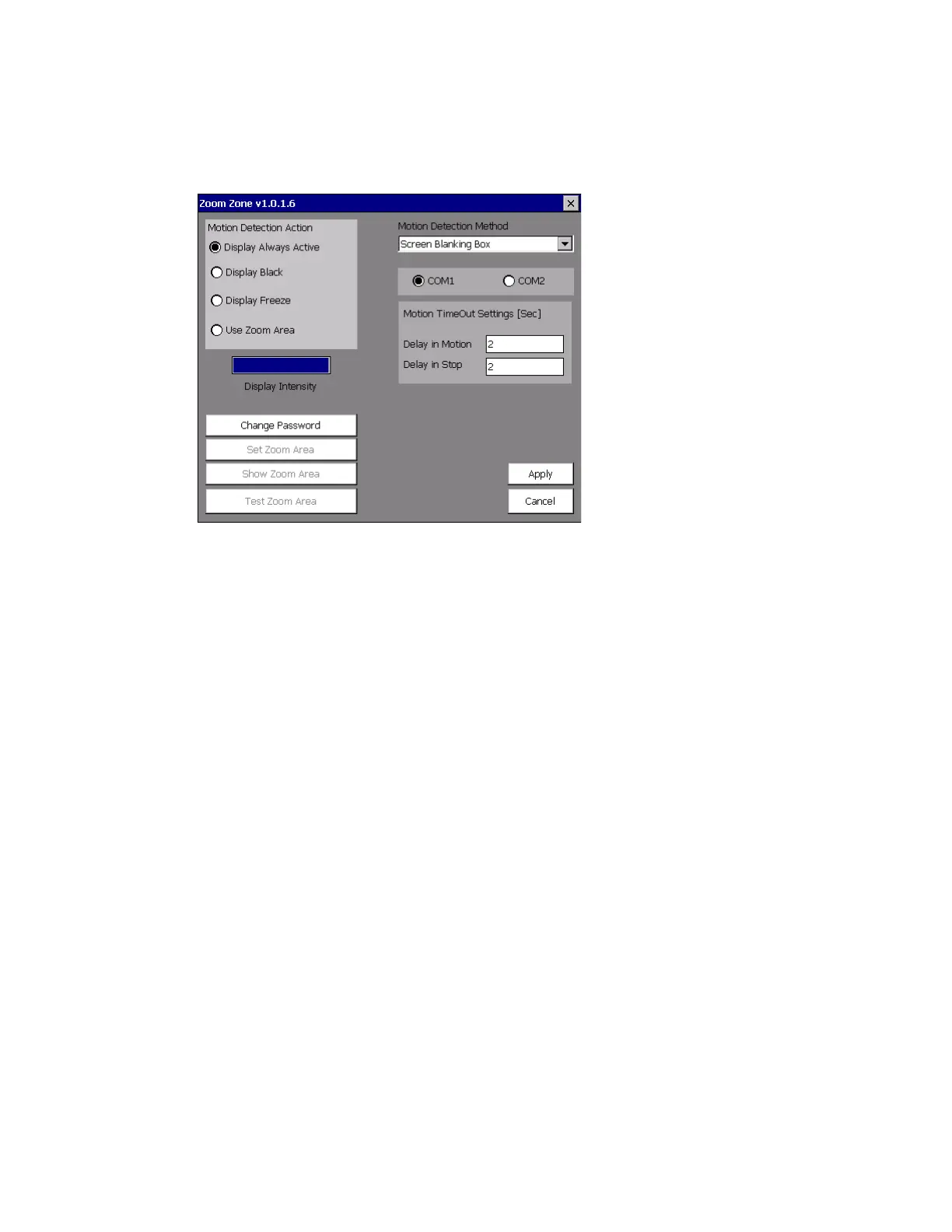

Start > Settings > Control Panel > ZoomZone
ZoomZone can be used to configure screen blanking behavior.
Motion Detection Action
Determine what to do when motion is detected:
• Display Always Active - The display does not change when motion is detected.
• Display Black - The display is blacked out when motion is detected.
• Display freeze - The display is frozen at the time motion is detected.
• Use Zoom Area - A preconfigured zoom area is displayed when motion is detected.
Motion Detection Method
Select the motion detection method.
The Thor VM3 supports the screen blanking box to determine motion. Select the port
(COM1 or COM2) to which the blanking box is attached.
Note: By default, COM1 and COM2 ports are used by Enterprise Data Collection. To use a COM
port for screen blanking, access Enterprise Settings and set Data Collection > Tethered
Scanners > Tethered Scanner (COMx) - Enable Scanner Port to off (where COMx is either
COM1 or COM2).
Motion Timeout Settings
Screen blanking can be configured to provide delays.
• Delay on Motion - Configure the delay between motion detection and screen
blanking. The default is 2 seconds.

Honeywell Thor VM3 Specifications

General

Stepping	D0
Tjunction	-40 °C
FSB Parity	No
Processor code	SR1X8
Processor cache	1 MB
Processor cores	2
Processor model	E3826
System bus rate	- GT/s
Processor family	Intel Atom®
Processor codename	Bay Trail
Processor frequency	1.46 GHz
Processor cache type	L2
Processor manufacturer	Intel
Processor package size	25 x 27 mm
Conflict-Free processor	Yes
Processor front side bus	- MHz
Processor operating modes	32-bit, 64-bit
Graphics & IMC lithography	22 nm
PCI Express configurations	1x1, 1x4, 2x1
Thermal Design Power (TDP)	7 W
Internal memory	4 GB
Internal memory type	DDR3-SDRAM
Storage media	Flash
Compatible memory cards	-
Internal storage capacity	64 GB
Display diagonal	12.1 \
Display brightness	900 cd/m²
Display resolution	1024 x 768 pixels
Graphics card	HD Graphics
Rear camera resolution (numeric)	- MP
Wi-Fi standards	802.11a, 802.11b, 802.11g
Bluetooth version	2.0+EDR
Top Wi-Fi standard	Wi-Fi 4 (802.11n)
HDMI ports quantity	0
USB 2.0 ports quantity	1
I/O ports	1x CAN-bus, RF
Processor ARK ID	78477
Processor socket	BGA 1170
Operating temperature (T-T)	-30 - 50 °C
Operating relative humidity (H-H)	5 - 95 %
Platform	Windows
Bundled software	Data Collection Engine, Microsoft Internet Explorer, Microsoft on-screen keyboard, Configuration Cloning Utility, Screen Blanking, Zoom Zone, Launcher
Operating system installed	Windows 7
AC adapter input voltage	90 - 240 V
Battery capacity	- mAh
Battery life (max)	0.5 h
Certification	EN 55024:2010, MIL-STD-810F, SAE-J1455, CCX
Device type	Tablet PC
Form factor	Slate
Product color	Grey, Silver
Protection features	Shock resistant, Vibration proof, Water resistant
International Protection (IP) code	IP66
Harmonized System (HS) code	84713000

Weight and Dimensions

Depth	62 mm
Width	318 mm
Height	260 mm
Weight	3000 g
