Antenna Connections
External Antenna Connector
Internal 802.11 Antenna
If the internal 802.11 antenna option is ordered, antennas are mounted inside the Thor
VM3. The internal antennas are not user accessible.
Vehicle Remote Antenna
The external antennas can be remotely mounted on the vehicle. See Install Remote
Antenna for instructions. External antenna kits are available for the 802.11 Wi-Fi radio,
GPS and WWAN.

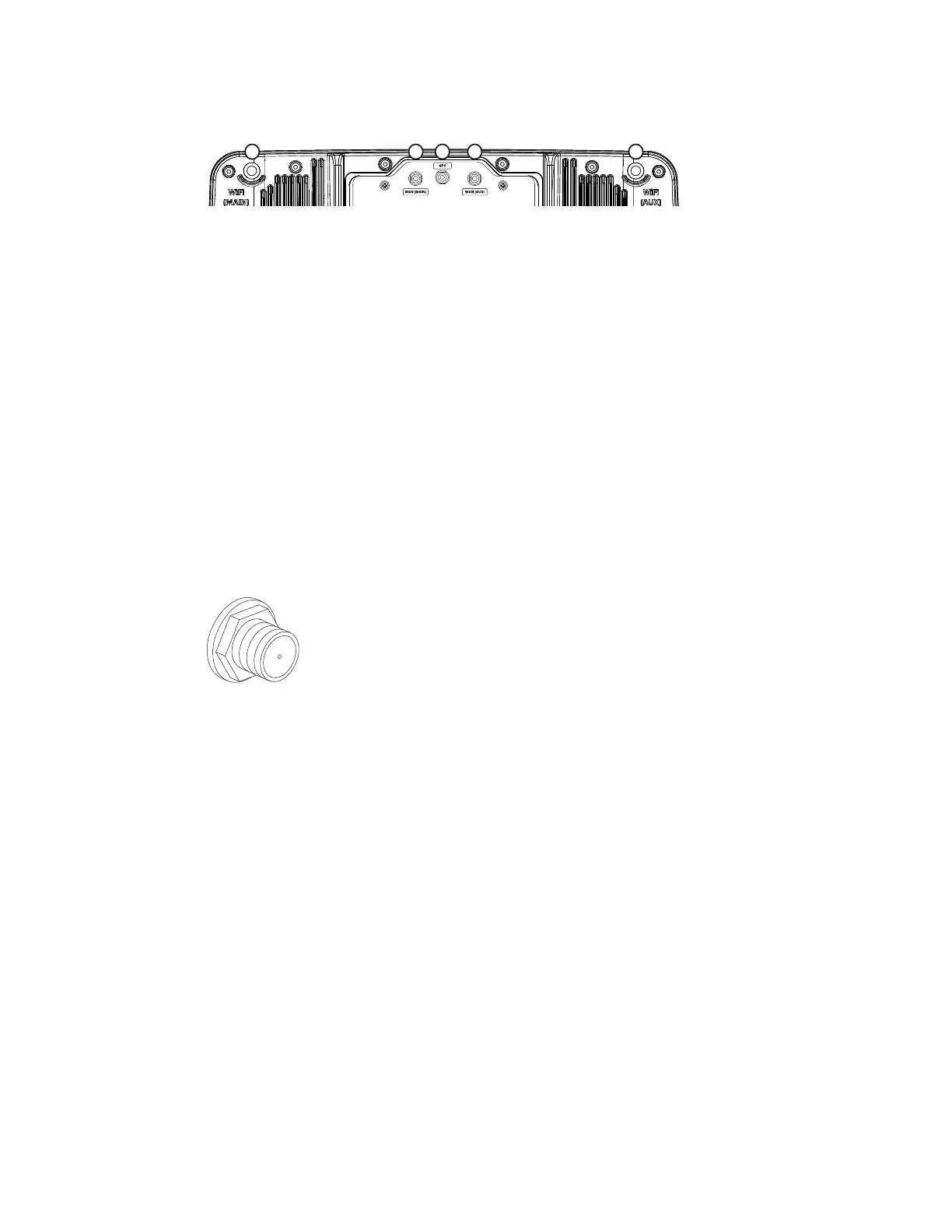

The Thor VM3 is equipped with an 802.11 radio and can be
ordered with internal antennas, external antennas or exter-
nal remote mount antennas. When the Thor VM3 is ordered
with internal antennas, the external antenna connectors are
not used. GPS and WWAN are optional on the Thor VM3 and
require external remote mount antennas.
1. WI-FI (MAIN)
802.11 Main Exter-
nal Antenna Con-
nector
2. WAN (MAIN) (Blue
label) Main WWAN
Antenna Connector
3. GPS (Green label)
GPS Antenna
Connector
4. WAN (AUX) (Blue
label) Auxiliary
WWAN Antenna
Connector
5. WI-FI (AUX) 802.11
Auxiliary External
Antenna Connector
When the Thor VM3 is ordered with the internal antenna option, the
802.11 antenna connectors on the back are not connected to the
802.11 radio. Instead the internal antenna connector is connected to
the 802.11 radio.
Remove the rubber cap, if present, from the antenna connector before
connecting an external antenna.
1 2 3 4 5

Honeywell Thor VM3 Specifications

General

Stepping	D0
Tjunction	-40 °C
FSB Parity	No
Processor code	SR1X8
Processor cache	1 MB
Processor cores	2
Processor model	E3826
System bus rate	- GT/s
Processor family	Intel Atom®
Processor codename	Bay Trail
Processor frequency	1.46 GHz
Processor cache type	L2
Processor manufacturer	Intel
Processor package size	25 x 27 mm
Conflict-Free processor	Yes
Processor front side bus	- MHz
Processor operating modes	32-bit, 64-bit
Graphics & IMC lithography	22 nm
PCI Express configurations	1x1, 1x4, 2x1
Thermal Design Power (TDP)	7 W
Internal memory	4 GB
Internal memory type	DDR3-SDRAM
Storage media	Flash
Compatible memory cards	-
Internal storage capacity	64 GB
Display diagonal	12.1 \
Display brightness	900 cd/m²
Display resolution	1024 x 768 pixels
Graphics card	HD Graphics
Rear camera resolution (numeric)	- MP
Wi-Fi standards	802.11a, 802.11b, 802.11g
Bluetooth version	2.0+EDR
Top Wi-Fi standard	Wi-Fi 4 (802.11n)
HDMI ports quantity	0
USB 2.0 ports quantity	1
I/O ports	1x CAN-bus, RF
Processor ARK ID	78477
Processor socket	BGA 1170
Operating temperature (T-T)	-30 - 50 °C
Operating relative humidity (H-H)	5 - 95 %
Platform	Windows
Bundled software	Data Collection Engine, Microsoft Internet Explorer, Microsoft on-screen keyboard, Configuration Cloning Utility, Screen Blanking, Zoom Zone, Launcher
Operating system installed	Windows 7
AC adapter input voltage	90 - 240 V
Battery capacity	- mAh
Battery life (max)	0.5 h
Certification	EN 55024:2010, MIL-STD-810F, SAE-J1455, CCX
Device type	Tablet PC
Form factor	Slate
Product color	Grey, Silver
Protection features	Shock resistant, Vibration proof, Water resistant
International Protection (IP) code	IP66
Harmonized System (HS) code	84713000

Weight and Dimensions

Depth	62 mm
Width	318 mm
Height	260 mm
Weight	3000 g
