110 Thor VM3 with Microsoft Windows Embedded Compact 7 User Guide
Connect PS/2 Keyboard
Note: While the 95-key USB keyboard and the 95-key PS/2 keyboard look similar the installation
procedure is different.
A legacy PS/2 keyboard (used with VX6, VX7, Thor VX8 or Thor VX9), available in either
60-key or 95-key versions can be used with the Thor VM3 via a PS/2 to USB adapter
cable. This function is only supported with the VM3D or VMXD Enhanced Docks. It is
not supported with the VM1D Standard Dock.
1. Seat the male connector of the cable over the USB connector on the Thor VM3 dock.
2. Tighten the thumbscrews in a clockwise direction. Do not over tighten.
3. Seat the keyboard connector over the female connector of the cable.
4. Tighten the thumbscrews in a clockwise direction. Do not overtighten.

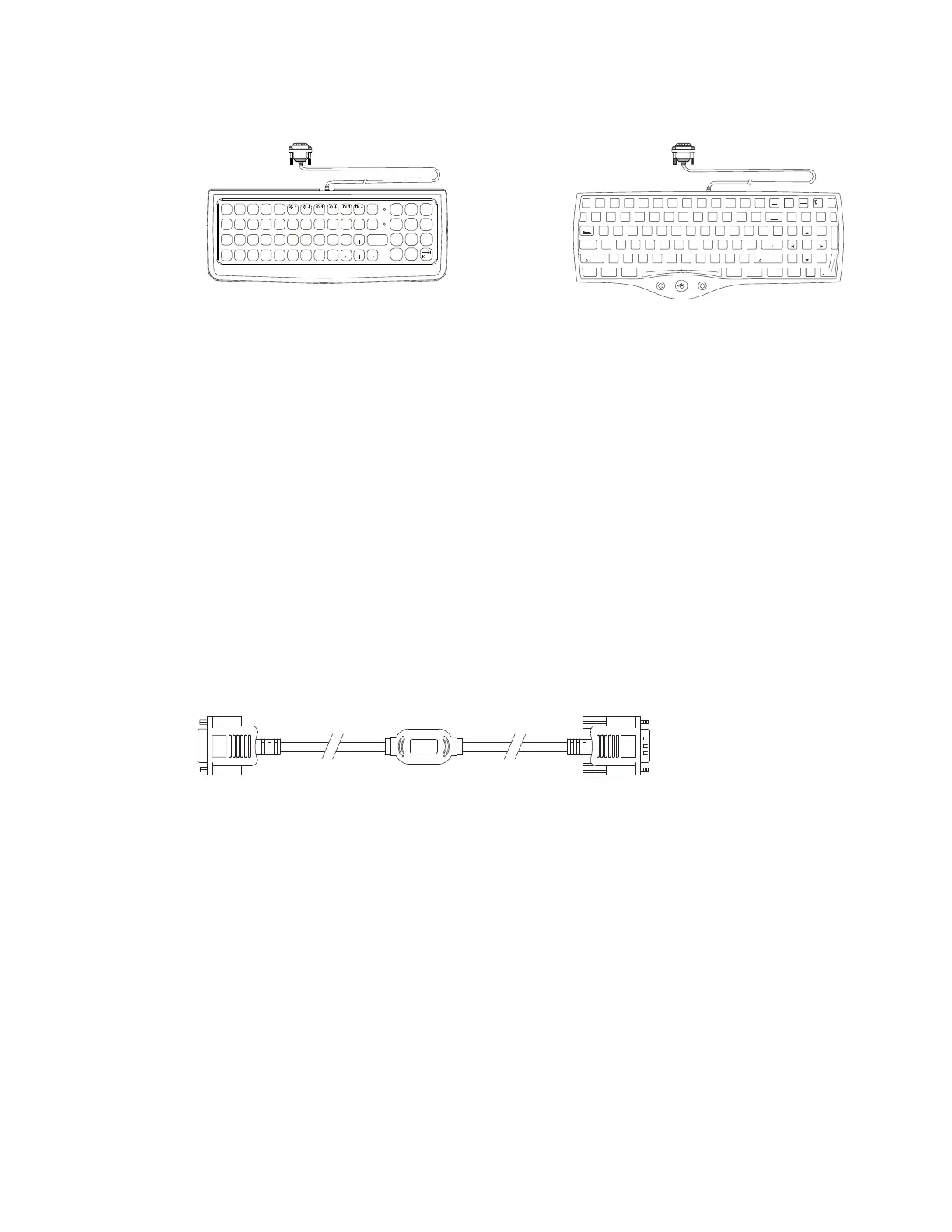

60-Key PS/2 Keyboard
Part number 160068-0001
Requires PS/2 to USB adapter cable
Not supported on the Thor VM3 with
VM1D Standard Dock
Note: The keyboard backlight must be
turned on manually. It does not
come on automatically at boot
up.
95-Key PS/2 Keyboard
Part number 160491-0001
Requires PS/2 to USB adapter cable
Not supported on the Thor VM3 with
VM1D Standard Dock
Note: The mouse function is not
supported with this keyboard.
