Honeywell Thor VM3 User Manual

38 Thor VM3 with Microsoft Windows Embedded Compact 7 User Guide
Keyboard Options

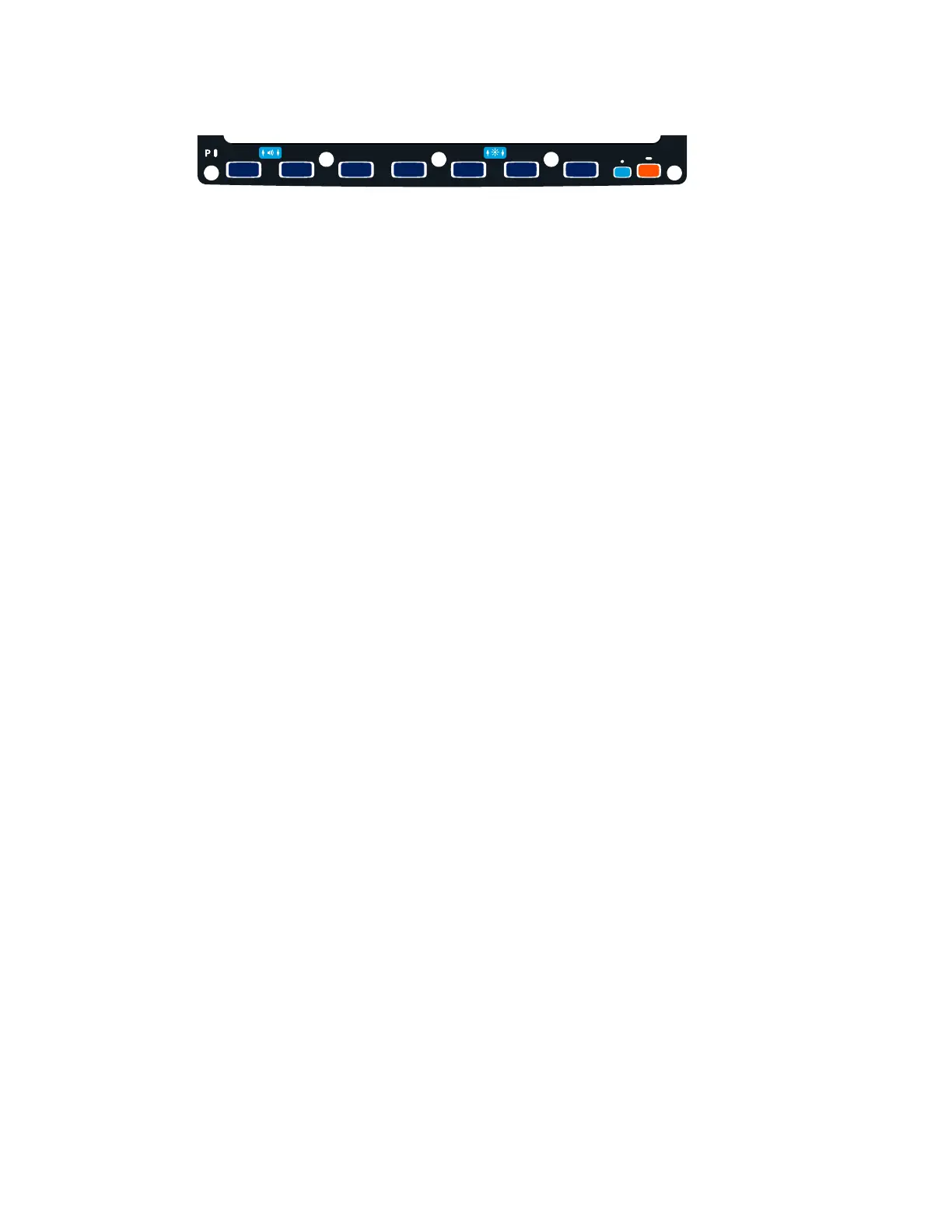

The integrated keypad contains seven programmable keys, a blue modifier key and an
orange modifier key.
The P1 though P7 keys are user programmable.
• When used with no modifier key, P1 through P7 can be configured for a user
programmable function.
• When used with the Orange modifier key, P1 through P7 provide secondary
programmable keys, P8 through P14, and can be configured for a user
programmable function.
• The programmable keys can be remapped to provide a single keypress, a string of
keypresses or to execute an application or command. Key remapping is configured
via the Keyboard Remapper option in the Control Panel.
• Programmable keys persist across a warmboot or power cycle.
• When used with the Blue modifier key, P1 and P2 keys are used to adjust speaker
volume and P5 and P6 keys are used to adjust display brightness.
The Thor VM3 integrated keypad is backlit.
• By default, the integrated keypad backlight follows the display backlight. When the
display backlight is on, the integrated keypad backlight is on.
• If the display backlight brightness is increased (or decreased) the integrated keypad
backlight brightness does not change.
• The integrated keypad backlight and the display share the same timer, which is
configured in the Power control panel.
• The integrated keypad backlight can be disabled via the Misc tab of the Options
control panel.
Keypad LEDs
See Keyboard LEDs for details.
P8
P1
P14
P7
P13
P6
P12
P5
P11
P4
P10
P3
P9
P2

Honeywell Thor VM3 Specifications

General

Stepping	D0
Tjunction	-40 °C
FSB Parity	No
Processor code	SR1X8
Processor cache	1 MB
Processor cores	2
Processor model	E3826
System bus rate	- GT/s
Processor family	Intel Atom®
Processor codename	Bay Trail
Processor frequency	1.46 GHz
Processor cache type	L2
Processor manufacturer	Intel
Processor package size	25 x 27 mm
Conflict-Free processor	Yes
Processor front side bus	- MHz
Processor operating modes	32-bit, 64-bit
Graphics & IMC lithography	22 nm
PCI Express configurations	1x1, 1x4, 2x1
Thermal Design Power (TDP)	7 W
Internal memory	4 GB
Internal memory type	DDR3-SDRAM
Storage media	Flash
Compatible memory cards	-
Internal storage capacity	64 GB
Display diagonal	12.1 \
Display brightness	900 cd/m²
Display resolution	1024 x 768 pixels
Graphics card	HD Graphics
Rear camera resolution (numeric)	- MP
Wi-Fi standards	802.11a, 802.11b, 802.11g
Bluetooth version	2.0+EDR
Top Wi-Fi standard	Wi-Fi 4 (802.11n)
HDMI ports quantity	0
USB 2.0 ports quantity	1
I/O ports	1x CAN-bus, RF
Processor ARK ID	78477
Processor socket	BGA 1170
Operating temperature (T-T)	-30 - 50 °C
Operating relative humidity (H-H)	5 - 95 %
Platform	Windows
Bundled software	Data Collection Engine, Microsoft Internet Explorer, Microsoft on-screen keyboard, Configuration Cloning Utility, Screen Blanking, Zoom Zone, Launcher
Operating system installed	Windows 7
AC adapter input voltage	90 - 240 V
Battery capacity	- mAh
Battery life (max)	0.5 h
Certification	EN 55024:2010, MIL-STD-810F, SAE-J1455, CCX
Device type	Tablet PC
Form factor	Slate
Product color	Grey, Silver
Protection features	Shock resistant, Vibration proof, Water resistant
International Protection (IP) code	IP66
Harmonized System (HS) code	84713000

Weight and Dimensions

Depth	62 mm
Width	318 mm
Height	260 mm
Weight	3000 g
