Thor VM3 with Microsoft Windows Embedded Compact 7 User Guide 303

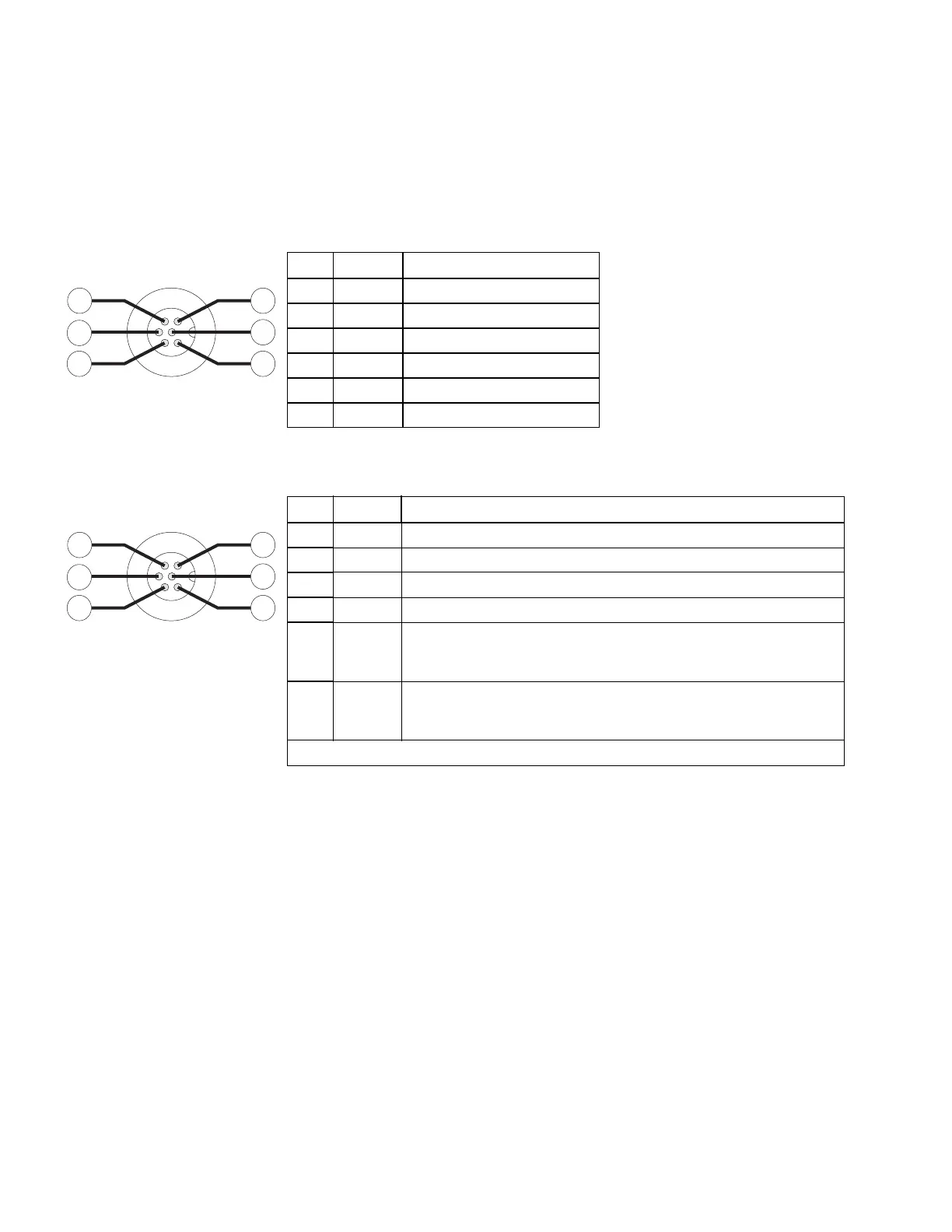

Port and Connector Pinouts
Power Supply Connector
VM1D Standard Dock and VM3D Enhanced Dock
VMXD Enhanced Dock
Pin Signal Description
1V In+ 10-60V DC input +
2V In+ 10-60V DC input +
3V In- input -
4V In- input -
5 GND Chassis ground
6 Ignition +0V to 60V to start terminal
Pin Signal Description
1 V In+ 13.2V DC Input + provided by DC/DC power supply
2 V In+ 13.2V DC Input + provided by DC/DC power supply
3V In- Input -
4V In- Input -
5COM1
RTS
Screen Blanking Box + The green wire in the power cable must be
connected to the switched side of the screen blanking box. See
the applicable wiring diagram below.
6COM1
CTS
Screen Blanking Box - The white wire in the power cable must be
connected to the unswitched side of the screen blanking box. See
applicable wiring diagram below.
Cable shell provides chassis ground connection.
3
1
6
5
2
4
3
1
6
5
2
4
