Thor VM3 with Microsoft Windows Embedded Compact 7 User Guide 41
PS/2 Keyboards
Legacy PS/2 keyboards can be used with the Thor VM3 via a USB to PS/2 adapter cable.
PS/2 keyboards are available in 60-key and 95-key versions and were used with the
VX6, VX7, Thor VX8 or Thor VX9.
Note: The PS/2 adapter cable does not work with the Thor VM3 and the VM1D Standard Dock.
The PS/2 adapter cable works with either the VM3D or VMXD Enhanced Docks.

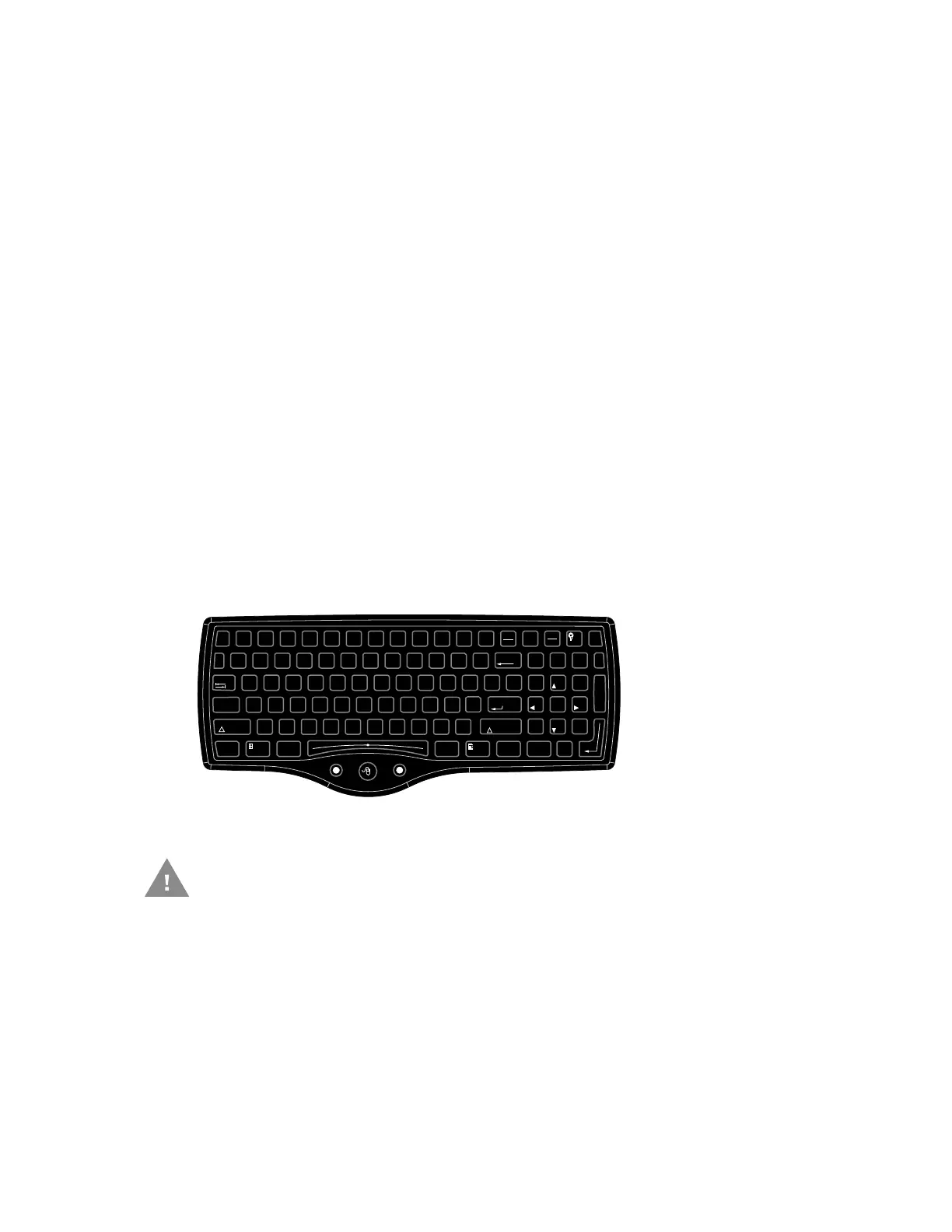

95-key PS/2 Keyboard
The 95-key PS/2 keyboard may have any of the following markings on the decal on the
back of the keyboard:
• 160491-0001
•95 KEY PS-2
• 9000154KEYBRD (also available as VX89154KEYBRD)
If the keyboard looks similar but has a different part number refer to 95-Key USB
Keyboard.
An adapter cable is required to attach this keyboard to the Thor VM3. See Connect PS/2
Keyboard for details.
Note: If the keyboard was previously used with Thor VX8 or Thor VX9, the adapter cable for the
Thor VX8/VX9 is not used. The new PS/2 to USB adapter cable must be used.
This keyboard is visually similar to the USB external keyboard.
Key Maps
The 95-key keyboard supports all 104 keyboard functions (101 keyboard standard plus
Windows keys) and includes an integrated pointing device and left and right mouse
buttons. However, because the keyboard only has 95 keys, all functions are not visible
(or printed on the keyboard). Therefore the Thor VM3 keyboard supports what is called
hidden keys -- keys that are accessible but not visible on the keyboard. Refer to External
95-Key Keyboard for keymaps.
Esc
F2 F3 F4
F5
F6
F7
F8 F9 F10
F11
F12
Print
Screen
SysRq
Scroll
Lock
Pause
Break
Fn
`
1234567890
-
=
BackSpace
Num
Lock
/
*
-
Tab
QWE R T Y U I O P
[]
\
{}
|
789
456
12
0
3
Home PgUp
Caps
ASDFGHJ KL
;
'
:
"
Enter
Ctrl Alt
XCVB
N
M
,.
/
<>
?
Shift
Alt Ctrl
Ins
End PgDn
+
~
!
@
#
$%
^
&
*
(
)
_
+
Lock
Shift
Z
L
R
Enter
.
Del
F1
The mouse pointer function on the PS/2 keyboard is not available when
connected via an adapter cable to the Thor VM3.

Honeywell Thor VM3 Specifications

General

Stepping	D0
Tjunction	-40 °C
FSB Parity	No
Processor code	SR1X8
Processor cache	1 MB
Processor cores	2
Processor model	E3826
System bus rate	- GT/s
Processor family	Intel Atom®
Processor codename	Bay Trail
Processor frequency	1.46 GHz
Processor cache type	L2
Processor manufacturer	Intel
Processor package size	25 x 27 mm
Conflict-Free processor	Yes
Processor front side bus	- MHz
Processor operating modes	32-bit, 64-bit
Graphics & IMC lithography	22 nm
PCI Express configurations	1x1, 1x4, 2x1
Thermal Design Power (TDP)	7 W
Internal memory	4 GB
Internal memory type	DDR3-SDRAM
Storage media	Flash
Compatible memory cards	-
Internal storage capacity	64 GB
Display diagonal	12.1 \
Display brightness	900 cd/m²
Display resolution	1024 x 768 pixels
Graphics card	HD Graphics
Rear camera resolution (numeric)	- MP
Wi-Fi standards	802.11a, 802.11b, 802.11g
Bluetooth version	2.0+EDR
Top Wi-Fi standard	Wi-Fi 4 (802.11n)
HDMI ports quantity	0
USB 2.0 ports quantity	1
I/O ports	1x CAN-bus, RF
Processor ARK ID	78477
Processor socket	BGA 1170
Operating temperature (T-T)	-30 - 50 °C
Operating relative humidity (H-H)	5 - 95 %
Platform	Windows
Bundled software	Data Collection Engine, Microsoft Internet Explorer, Microsoft on-screen keyboard, Configuration Cloning Utility, Screen Blanking, Zoom Zone, Launcher
Operating system installed	Windows 7
AC adapter input voltage	90 - 240 V
Battery capacity	- mAh
Battery life (max)	0.5 h
Certification	EN 55024:2010, MIL-STD-810F, SAE-J1455, CCX
Device type	Tablet PC
Form factor	Slate
Product color	Grey, Silver
Protection features	Shock resistant, Vibration proof, Water resistant
International Protection (IP) code	IP66
Harmonized System (HS) code	84713000

Weight and Dimensions

Depth	62 mm
Width	318 mm
Height	260 mm
Weight	3000 g
