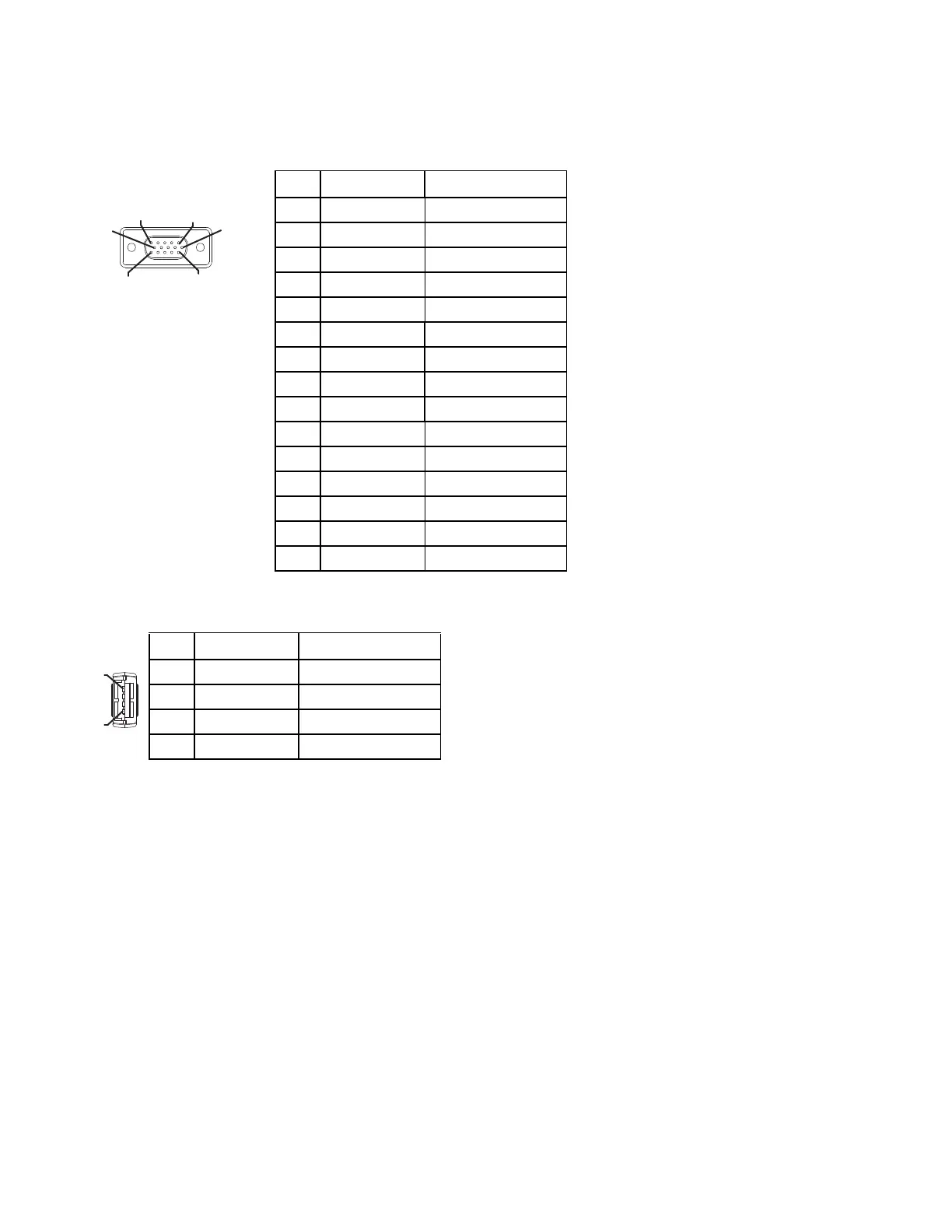

Thor VM3 with Microsoft Windows Embedded Compact 7 User Guide 311
Headset Adapter Cable
D15 Female Connector
Quick Connect Headset Connector
Pin Signal Description
1Not used
2Not used
3Not used
4Not used
5Not used
6 Audio return Headset return
7 Audio output Headset output
8 Mic input Microphone input
9 Mic return Microphone return
10 Not used
11 Not used
12 Not used
13 Not used
14 Not used
15 Not used
Pin Signal Description
1 Mic input Microphone input
2 Mic return Microphone return
3 Audio output Headset output
4 Audio return Headset return
PIN 15
PIN
10
PIN 11
PI
N6
PIN 5
PIN 1
PIN 4
PIN 1
