124 Thor VM3 with Microsoft Windows Embedded Compact 7 User Guide
Disconnect UPS Battery
Equipment Required
The following equipment is user-supplied:
• Torquing tool capable of measuring inch pounds
• #2 Phillips screwdriver bit
Disconnect Procedure
1. For convenience, the Thor VM3 can be removed from the dock, though it is not nec-
essary.
2. If the Thor VM3 remains in the
dock, disconnect the power cable
from the dock.
3. Place the Thor VM3 in Suspend by
pressing the Power button.

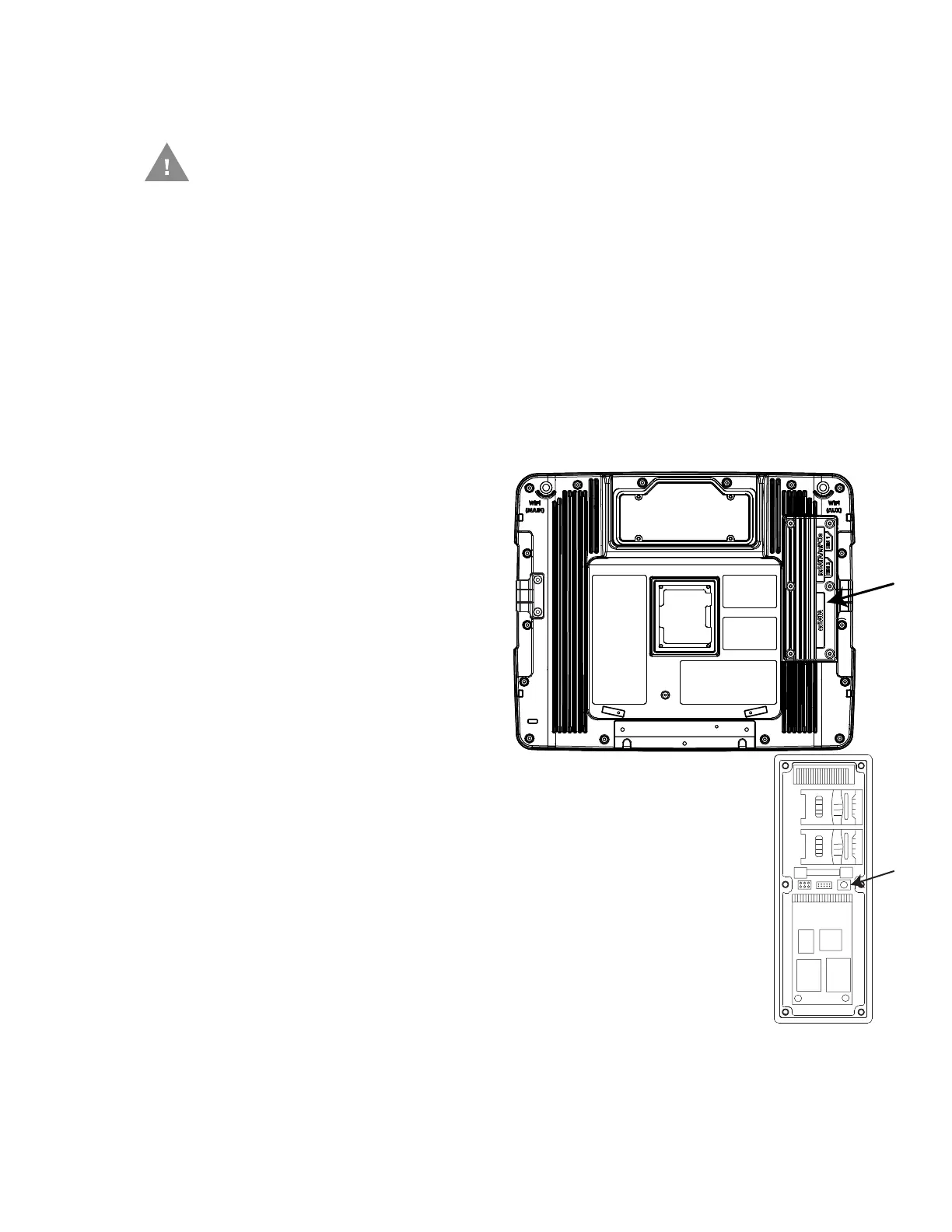

4. Place the Thor VM3 face down on
a stable surface.
5. Use a #2 Phillips bit to loosen the
captive M3 screws on the access
panel with the mSATA and SIM
labels.
6. Locate the small push button
located just below the SIM card installation slot.
7. Press the push button to disconnect the UPS. The UPS battery
maintains its charge but is disconnected from the power circuitry of
the Thor VM3.
8. Reattach the access panel, torquing the M3 screws to 7.0 ± 0.5 inch
pounds using a #2 Phillips bit.
9. When the Thor VM3 is attached to external power, the UPS battery
is automatically reconnected.
10. Restart the Thor VM3
Caution: The UPS battery must be disconnected before you ship the Thor
VM3 or Replace Front Panel.

Honeywell Thor VM3 Specifications

General

Stepping	D0
Tjunction	-40 °C
FSB Parity	No
Processor code	SR1X8
Processor cache	1 MB
Processor cores	2
Processor model	E3826
System bus rate	- GT/s
Processor family	Intel Atom®
Processor codename	Bay Trail
Processor frequency	1.46 GHz
Processor cache type	L2
Processor manufacturer	Intel
Processor package size	25 x 27 mm
Conflict-Free processor	Yes
Processor front side bus	- MHz
Processor operating modes	32-bit, 64-bit
Graphics & IMC lithography	22 nm
PCI Express configurations	1x1, 1x4, 2x1
Thermal Design Power (TDP)	7 W
Internal memory	4 GB
Internal memory type	DDR3-SDRAM
Storage media	Flash
Compatible memory cards	-
Internal storage capacity	64 GB
Display diagonal	12.1 \
Display brightness	900 cd/m²
Display resolution	1024 x 768 pixels
Graphics card	HD Graphics
Rear camera resolution (numeric)	- MP
Wi-Fi standards	802.11a, 802.11b, 802.11g
Bluetooth version	2.0+EDR
Top Wi-Fi standard	Wi-Fi 4 (802.11n)
HDMI ports quantity	0
USB 2.0 ports quantity	1
I/O ports	1x CAN-bus, RF
Processor ARK ID	78477
Processor socket	BGA 1170
Operating temperature (T-T)	-30 - 50 °C
Operating relative humidity (H-H)	5 - 95 %
Platform	Windows
Bundled software	Data Collection Engine, Microsoft Internet Explorer, Microsoft on-screen keyboard, Configuration Cloning Utility, Screen Blanking, Zoom Zone, Launcher
Operating system installed	Windows 7
AC adapter input voltage	90 - 240 V
Battery capacity	- mAh
Battery life (max)	0.5 h
Certification	EN 55024:2010, MIL-STD-810F, SAE-J1455, CCX
Device type	Tablet PC
Form factor	Slate
Product color	Grey, Silver
Protection features	Shock resistant, Vibration proof, Water resistant
International Protection (IP) code	IP66
Harmonized System (HS) code	84713000

Weight and Dimensions

Depth	62 mm
Width	318 mm
Height	260 mm
Weight	3000 g
