Honeywell Thor VM3 User Manual

56 Thor VM3 with Microsoft Windows Embedded Compact 7 User Guide
Install RAM Mount
Before installation begins, verify you have the applicable vehicle mounting bracket
assembly components necessary, as shown in the following figures.
Components - RAM Mounting Kits
Mounting kits that do not include an external keyboard are shown below.
Mounting kits that include a provision for an external keyboard include the parts on this
page plus the parts on the next page.
In addition to the kits below, individual RAM mounting components are also available.
Mounting Kits without Keyboards
Each mounting kit contains:
Caution: This device is intended to transmit RF energy. For protection
against RF exposure to humans and in accordance with FCC
rules and Industry Canada rules, this transmitter should be
installed such that a minimum separation distance of at least
20 cm (7.8 in.) is maintained between the antenna and the
general population. This device is not to be co-located with
other transmitters.

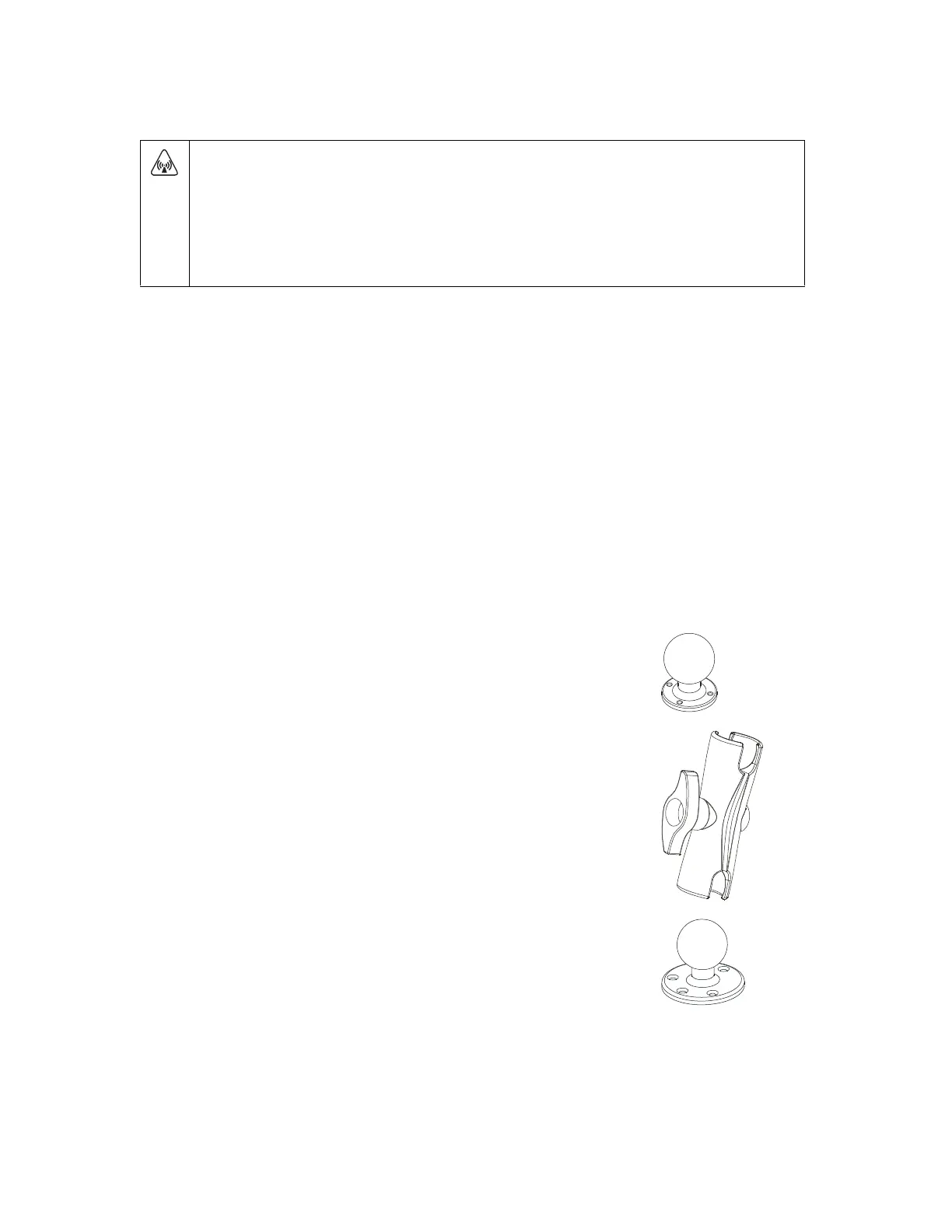

RAM Ball (Size D) for back of Thor VM3 dock with
hardware (screws and washers) to attach RAM ball to
dock
RAM Arm (Size D), length varies by kit selected
One of three mounting options:
• RAM Ball mount (Size D, may include 3 cone
washers), or

Honeywell Thor VM3 Specifications

General

Stepping	D0
Tjunction	-40 °C
FSB Parity	No
Processor code	SR1X8
Processor cache	1 MB
Processor cores	2
Processor model	E3826
System bus rate	- GT/s
Processor family	Intel Atom®
Processor codename	Bay Trail
Processor frequency	1.46 GHz
Processor cache type	L2
Processor manufacturer	Intel
Processor package size	25 x 27 mm
Conflict-Free processor	Yes
Processor front side bus	- MHz
Processor operating modes	32-bit, 64-bit
Graphics & IMC lithography	22 nm
PCI Express configurations	1x1, 1x4, 2x1
Thermal Design Power (TDP)	7 W
Internal memory	4 GB
Internal memory type	DDR3-SDRAM
Storage media	Flash
Compatible memory cards	-
Internal storage capacity	64 GB
Display diagonal	12.1 \
Display brightness	900 cd/m²
Display resolution	1024 x 768 pixels
Graphics card	HD Graphics
Rear camera resolution (numeric)	- MP
Wi-Fi standards	802.11a, 802.11b, 802.11g
Bluetooth version	2.0+EDR
Top Wi-Fi standard	Wi-Fi 4 (802.11n)
HDMI ports quantity	0
USB 2.0 ports quantity	1
I/O ports	1x CAN-bus, RF
Processor ARK ID	78477
Processor socket	BGA 1170
Operating temperature (T-T)	-30 - 50 °C
Operating relative humidity (H-H)	5 - 95 %
Platform	Windows
Bundled software	Data Collection Engine, Microsoft Internet Explorer, Microsoft on-screen keyboard, Configuration Cloning Utility, Screen Blanking, Zoom Zone, Launcher
Operating system installed	Windows 7
AC adapter input voltage	90 - 240 V
Battery capacity	- mAh
Battery life (max)	0.5 h
Certification	EN 55024:2010, MIL-STD-810F, SAE-J1455, CCX
Device type	Tablet PC
Form factor	Slate
Product color	Grey, Silver
Protection features	Shock resistant, Vibration proof, Water resistant
International Protection (IP) code	IP66
Harmonized System (HS) code	84713000

Weight and Dimensions

Depth	62 mm
Width	318 mm
Height	260 mm
Weight	3000 g
