Thor VM3 with Microsoft Windows Embedded Compact 7 User Guide 55
Dock I/O Pin Cover.
Padlock
Laptop Security Cable

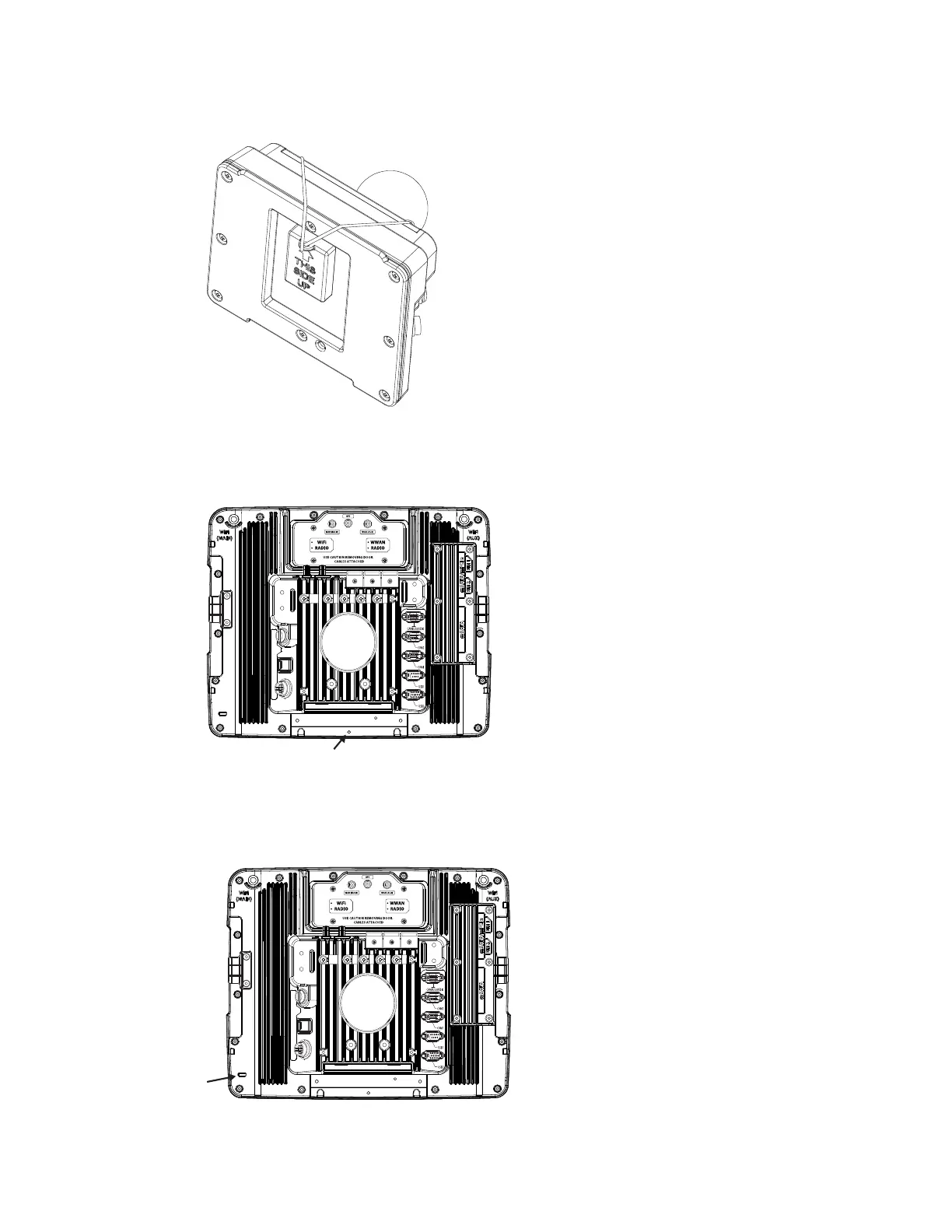

The dock contains a tethered I/O Pin Cover to protect
the I/O pins on the dock when a Thor VM3 is not
mounted in the dock.
• When the Thor VM3 is not installed in the dock,
use the I/O Pin Cover to protect the pins on the
dock as shown.
• When a Thor VM3 is installed in the dock, the I/O
Pin Cover can be placed out of the way behind the
dock.
It may be desirable to secure the Thor VM3 in
the dock so it cannot be removed from the
dock. The quick release handle on the Thor
VM3 is notched to allow a user supplied stan-
dard padlock to be placed through a hole in the
bracket on the back of the Thor VM3 in the
location shown below. Once the padlock is
installed, the release handle cannot be moved
so the Thor VM3 cannot be removed from the
dock. The padlock shackle must be smaller
than 3/16” (4.76mm).
A cable tie wrap can be used instead of a pad-
lock if desired.
The Thor VM3 can be secured with a stan-
dard laptop security cable using the slot
on the back of the Thor VM3.
