Honeywell Thor VM3 User Manual

Thor VM3 with Microsoft Windows Embedded Compact 7 User Guide 117
Connect CANbus Cable
The CANbus/Audio connector supports a headset adapter cable or a CANbus Y cable.
The Thor VM3 does not support connecting audio and CANbus simultaneously.
See CANbus / Audio Connector for connector pinouts.
1. Seat the D15 cable end connector firmly over the CANbus/Audio Connector on the
dock.
2. Tighten the thumbscrews in a clockwise direction. Do not over tighten.

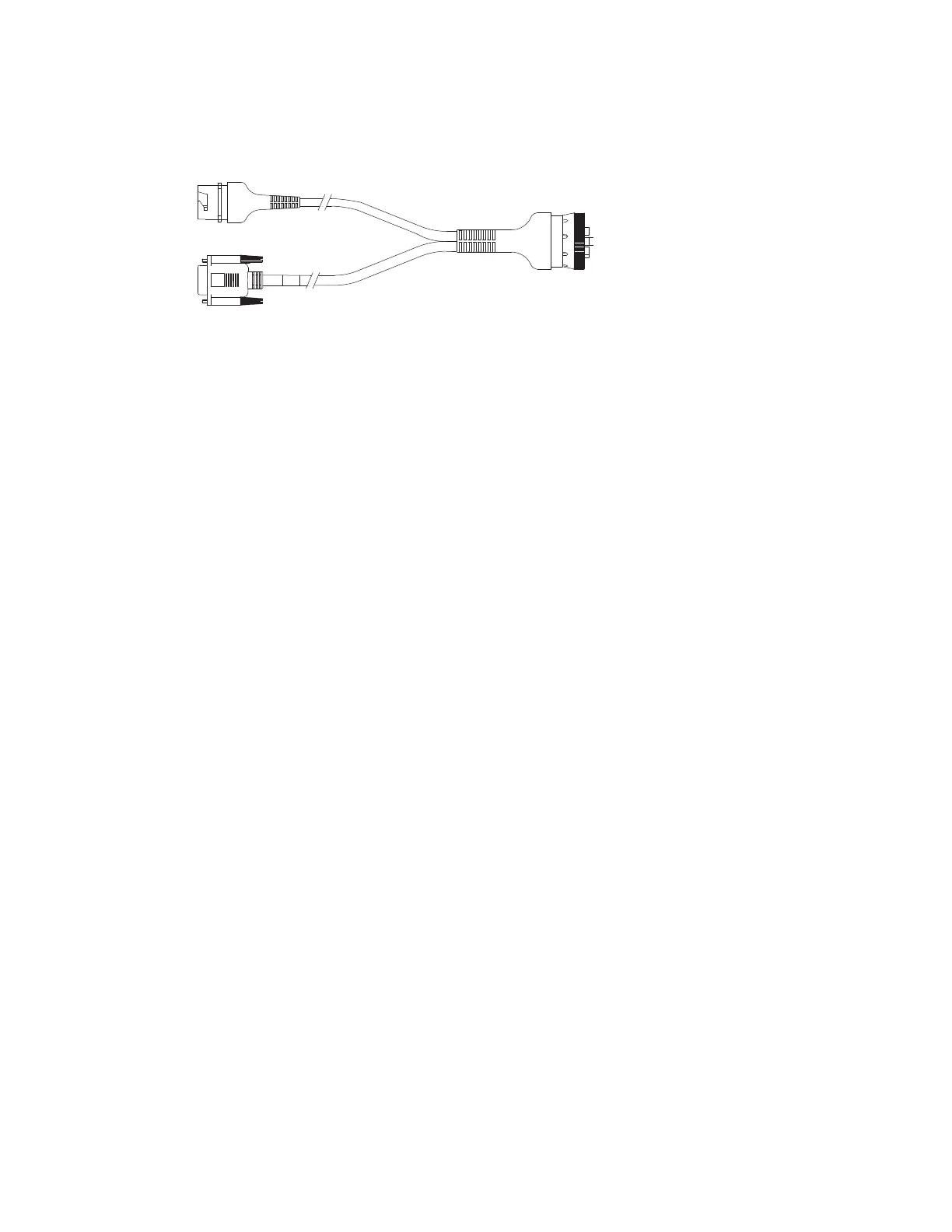

3. The CANbus Y cable has a 9 pin F SAE J1939 (Deutsch) and 9 pin M SAE J1939
(Deutsch) connector. Connect the appropriate cable connector as needed.
Install External Antenna
The external antenna cannot be used by devices with an internal antenna.
1. Remove the rubber cap, if present, from the antenna connector before connecting
an external antenna.
2. Place the antenna over the antenna connector. If only one antenna is used, be sure
to connect it to the Wi-Fi Main connector.
3. Push down and twist the antenna base clockwise until secure.
4. Repeat for second antenna, if used.

Honeywell Thor VM3 Specifications

General

Stepping	D0
Tjunction	-40 °C
FSB Parity	No
Processor code	SR1X8
Processor cache	1 MB
Processor cores	2
Processor model	E3826
System bus rate	- GT/s
Processor family	Intel Atom®
Processor codename	Bay Trail
Processor frequency	1.46 GHz
Processor cache type	L2
Processor manufacturer	Intel
Processor package size	25 x 27 mm
Conflict-Free processor	Yes
Processor front side bus	- MHz
Processor operating modes	32-bit, 64-bit
Graphics & IMC lithography	22 nm
PCI Express configurations	1x1, 1x4, 2x1
Thermal Design Power (TDP)	7 W
Internal memory	4 GB
Internal memory type	DDR3-SDRAM
Storage media	Flash
Compatible memory cards	-
Internal storage capacity	64 GB
Display diagonal	12.1 \
Display brightness	900 cd/m²
Display resolution	1024 x 768 pixels
Graphics card	HD Graphics
Rear camera resolution (numeric)	- MP
Wi-Fi standards	802.11a, 802.11b, 802.11g
Bluetooth version	2.0+EDR
Top Wi-Fi standard	Wi-Fi 4 (802.11n)
HDMI ports quantity	0
USB 2.0 ports quantity	1
I/O ports	1x CAN-bus, RF
Processor ARK ID	78477
Processor socket	BGA 1170
Operating temperature (T-T)	-30 - 50 °C
Operating relative humidity (H-H)	5 - 95 %
Platform	Windows
Bundled software	Data Collection Engine, Microsoft Internet Explorer, Microsoft on-screen keyboard, Configuration Cloning Utility, Screen Blanking, Zoom Zone, Launcher
Operating system installed	Windows 7
AC adapter input voltage	90 - 240 V
Battery capacity	- mAh
Battery life (max)	0.5 h
Certification	EN 55024:2010, MIL-STD-810F, SAE-J1455, CCX
Device type	Tablet PC
Form factor	Slate
Product color	Grey, Silver
Protection features	Shock resistant, Vibration proof, Water resistant
International Protection (IP) code	IP66
Harmonized System (HS) code	84713000

Weight and Dimensions

Depth	62 mm
Width	318 mm
Height	260 mm
Weight	3000 g
