Honeywell Thor VM3 User Manual

130 Thor VM3 with Microsoft Windows Embedded Compact 7 User Guide
Replace Front Panel
Front Panel Options
The front panel of the Thor VM3 is field replaceable. The front panel assembly contains
the keypad, touch screen and optional defroster. Should any of these components fail,
the front panel assembly can easily be replaced to reduce downtime. The replacement
front panel is available in these configurations:
• Standard temperature with resistive touch screen
• Cold storage with resistive touch screen
• Outdoor with resistive touch screen
Note: The Thor VM3 with Microsoft Windows Embedded Compact operating system does not
support PCAP touch screens.
Equipment Required
The following equipment is user-supplied:
• Torquing tool capable of measuring inch pounds
• #2 Phillips screwdriver bit
Replacement Procedure
1. Place the Thor VM3 on a clean, well-lit
surface before performing the front panel
replacement.
2. Place the Thor VM3 in Suspend by
pressing the Power button.
3. Remove the Thor VM3 from the dock.
4. Disconnect UPS Battery.

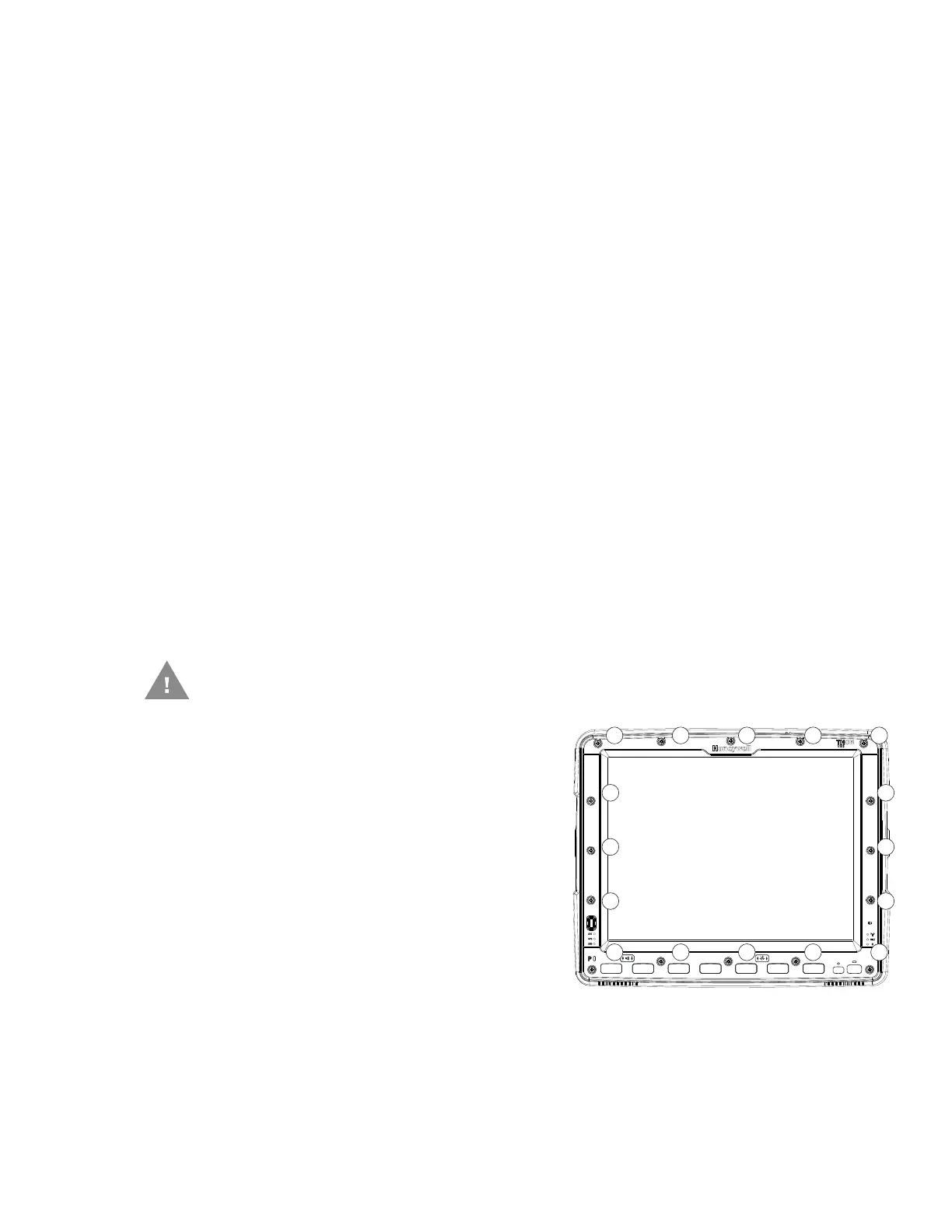

5. Loosen the sixteen (16) captive M3
screws holding the front panel. Use a #2
Phillips bit.
Caution: Before replacing the Thor VM3 front panel, Disconnect UPS
Battery.
14
16
11
1 795 4
3
6
108 2
12
15
13

Honeywell Thor VM3 Specifications

General

Stepping	D0
Tjunction	-40 °C
FSB Parity	No
Processor code	SR1X8
Processor cache	1 MB
Processor cores	2
Processor model	E3826
System bus rate	- GT/s
Processor family	Intel Atom®
Processor codename	Bay Trail
Processor frequency	1.46 GHz
Processor cache type	L2
Processor manufacturer	Intel
Processor package size	25 x 27 mm
Conflict-Free processor	Yes
Processor front side bus	- MHz
Processor operating modes	32-bit, 64-bit
Graphics & IMC lithography	22 nm
PCI Express configurations	1x1, 1x4, 2x1
Thermal Design Power (TDP)	7 W
Internal memory	4 GB
Internal memory type	DDR3-SDRAM
Storage media	Flash
Compatible memory cards	-
Internal storage capacity	64 GB
Display diagonal	12.1 \
Display brightness	900 cd/m²
Display resolution	1024 x 768 pixels
Graphics card	HD Graphics
Rear camera resolution (numeric)	- MP
Wi-Fi standards	802.11a, 802.11b, 802.11g
Bluetooth version	2.0+EDR
Top Wi-Fi standard	Wi-Fi 4 (802.11n)
HDMI ports quantity	0
USB 2.0 ports quantity	1
I/O ports	1x CAN-bus, RF
Processor ARK ID	78477
Processor socket	BGA 1170
Operating temperature (T-T)	-30 - 50 °C
Operating relative humidity (H-H)	5 - 95 %
Platform	Windows
Bundled software	Data Collection Engine, Microsoft Internet Explorer, Microsoft on-screen keyboard, Configuration Cloning Utility, Screen Blanking, Zoom Zone, Launcher
Operating system installed	Windows 7
AC adapter input voltage	90 - 240 V
Battery capacity	- mAh
Battery life (max)	0.5 h
Certification	EN 55024:2010, MIL-STD-810F, SAE-J1455, CCX
Device type	Tablet PC
Form factor	Slate
Product color	Grey, Silver
Protection features	Shock resistant, Vibration proof, Water resistant
International Protection (IP) code	IP66
Harmonized System (HS) code	84713000

Weight and Dimensions

Depth	62 mm
Width	318 mm
Height	260 mm
Weight	3000 g
