274 Thor VM3 with Microsoft Windows Embedded Compact 7 User Guide

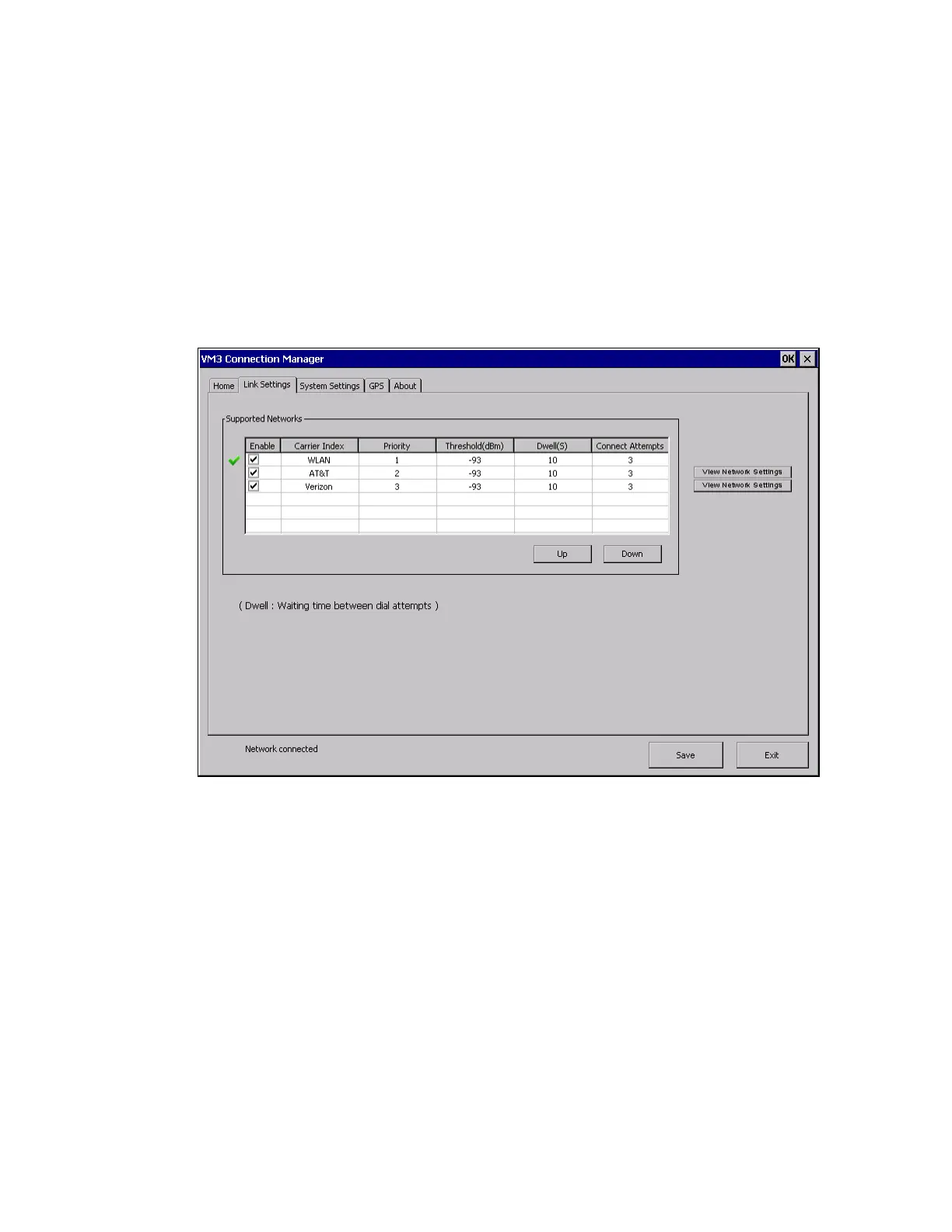

Link Settings
The available network connections are shown on this tab:
The WLAN network can be enabled or disabled from this tab, however configuration
settings for the 802.11 a/b/g/n radio are set with the WLAN Wireless Configuration
Utility (WCU).
The WWAN networks, if any, are shown on this page. A WWAN network is only displayed
if a SIM card has been installed for that network. The Thor VM3 supports two SIM cards.
See Install SIM Card(s) for SIM card installation instructions. A WWAN network can be
enabled or disabled from this screen, however the connection is configured by tapping
the applicable Network Settings button.
To change the order (Priority) of the networks:
1. Select the desired network. When selected, the network has a green check mark to
the left.
2. Tap the Up or Down button to move the network in the desired direction.
3. Tap the Save button after the order is set.
To change the other options (Enable, Threshold, Dwell, Connect Attempts):
1. To enable or disable a carrier, tap the checkbox to the left of the carrier name. When
checked, the carrier is enabled.
2. For other parameters, double tap the cell containing the value that is to be changed.
The value in the cell can now be edited.
3. Enter the desired value.
