Honeywell Thor VM3 User Manual

230 Thor VM3 with Microsoft Windows Embedded Compact 7 User Guide
Important Notes
Using the Wireless Configuration Utility
Note: When finished making changes the device should be restarted afterwards.
Start > All Programs > Honeywell > Honeywell (version ID) > WCU or
WCU Icon on Desktop

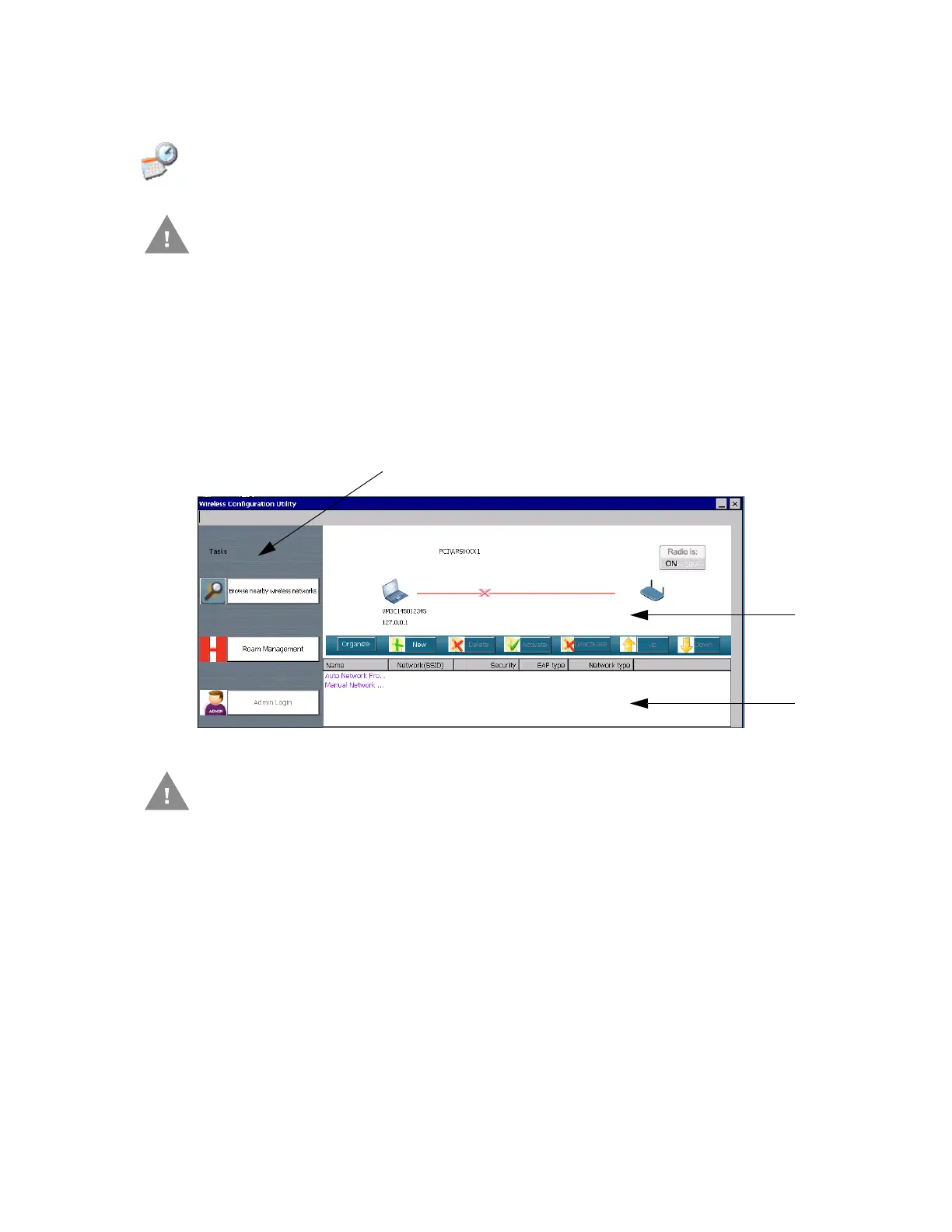

This screen contains several items:
• Tasks
• Status
• Profile List
It is important that all dates are correct on the Thor VM3 and host computers when
using any type of certificate. Certificates are date sensitive and if the date is not cor-
rect authentication will fail.
When using the 802.11 radio, the U-NII 1 band is the preferred band for indoor oper-
ation. For regulatory domains in which the U-NII 3 band is allowed, the following
channels are supported: 149, 153, 157 and 161. The AP must be configured accord-
ingly.
Status
Profile
List
Tasks
When using any profile that requires the user to enter credentials (user
name, password), the user should enter those credentials when the window
pops up. If the credentials are not entered then, the credentials window may
be hidden by other windows.

Honeywell Thor VM3 Specifications

General

Stepping	D0
Tjunction	-40 °C
FSB Parity	No
Processor code	SR1X8
Processor cache	1 MB
Processor cores	2
Processor model	E3826
System bus rate	- GT/s
Processor family	Intel Atom®
Processor codename	Bay Trail
Processor frequency	1.46 GHz
Processor cache type	L2
Processor manufacturer	Intel
Processor package size	25 x 27 mm
Conflict-Free processor	Yes
Processor front side bus	- MHz
Processor operating modes	32-bit, 64-bit
Graphics & IMC lithography	22 nm
PCI Express configurations	1x1, 1x4, 2x1
Thermal Design Power (TDP)	7 W
Internal memory	4 GB
Internal memory type	DDR3-SDRAM
Storage media	Flash
Compatible memory cards	-
Internal storage capacity	64 GB
Display diagonal	12.1 \
Display brightness	900 cd/m²
Display resolution	1024 x 768 pixels
Graphics card	HD Graphics
Rear camera resolution (numeric)	- MP
Wi-Fi standards	802.11a, 802.11b, 802.11g
Bluetooth version	2.0+EDR
Top Wi-Fi standard	Wi-Fi 4 (802.11n)
HDMI ports quantity	0
USB 2.0 ports quantity	1
I/O ports	1x CAN-bus, RF
Processor ARK ID	78477
Processor socket	BGA 1170
Operating temperature (T-T)	-30 - 50 °C
Operating relative humidity (H-H)	5 - 95 %
Platform	Windows
Bundled software	Data Collection Engine, Microsoft Internet Explorer, Microsoft on-screen keyboard, Configuration Cloning Utility, Screen Blanking, Zoom Zone, Launcher
Operating system installed	Windows 7
AC adapter input voltage	90 - 240 V
Battery capacity	- mAh
Battery life (max)	0.5 h
Certification	EN 55024:2010, MIL-STD-810F, SAE-J1455, CCX
Device type	Tablet PC
Form factor	Slate
Product color	Grey, Silver
Protection features	Shock resistant, Vibration proof, Water resistant
International Protection (IP) code	IP66
Harmonized System (HS) code	84713000

Weight and Dimensions

Depth	62 mm
Width	318 mm
Height	260 mm
Weight	3000 g
