Honeywell Thor VM3 User Manual

Thor VM3 with Microsoft Windows Embedded Compact 7 User Guide 175
Keyboard Remapper
Start > Settings > Control Panel > Keyboard Remapper
Keyboard Remapper is designed to remap keys on the integrated keypad (P1 thought
P7) or keys on an attached USB keyboard (such as the Honeywell 21-key numeric key-
board).
1. If a USB keyboard has already been attached, remove the USB keyboard to program
the integrated keys.
2. Start the remapping utility.
3. Program the integrated programmable keys (i.e.: P1 - P7) on the Thor VM3.
4. Exit the remapping utility.
5. Attach the USB keyboard.
6. Restart the remapping utility.
7. Remap any keys desired on the USB keyboard.
If any modifications need to be made to the P1 - P7 keys at a later time, it is necessary to
remove any USB keyboard to edit these keys in the remapping utility.
To remap a key:
1. Select the desired key to remap from the Physical Key pull-down list.
2. Select the desired modifier key, for example:
• Normal (no modifier), Orange or Blue for the integrated programmable keys (P1-
P7)
• Normal (no modifier), Yellow or Green for the 21-key numeric keyboard.
3. Select the desired value for the remapped key from the Key Value pull-down list.

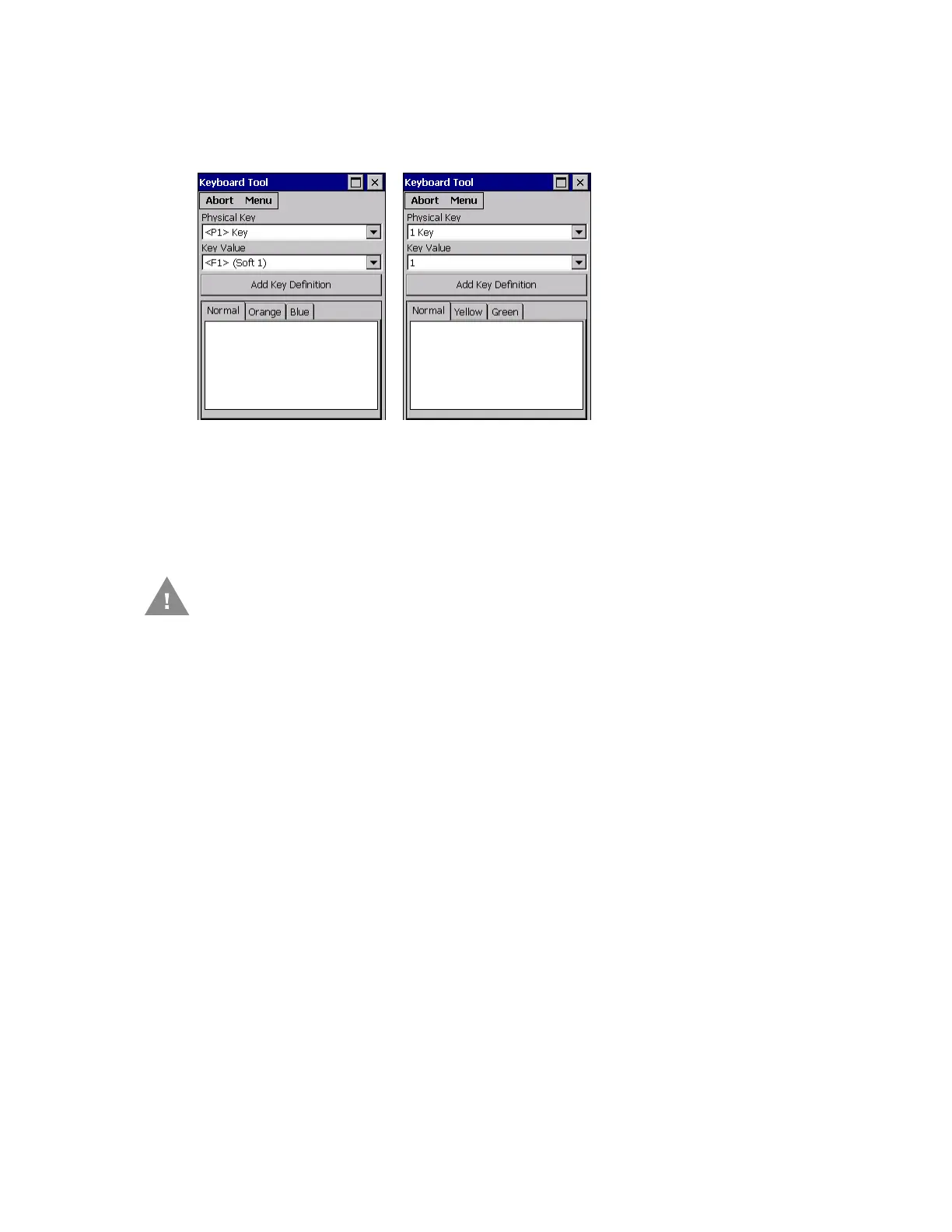

Keyboard Remapper for
integrated Programmable
Keys
Keyboard Remapper for
21-key Numeric Keyboard
If programming both the integrated programmable keys and keys on a USB
keyboard, follow the process below.

Honeywell Thor VM3 Specifications

General

Stepping	D0
Tjunction	-40 °C
FSB Parity	No
Processor code	SR1X8
Processor cache	1 MB
Processor cores	2
Processor model	E3826
System bus rate	- GT/s
Processor family	Intel Atom®
Processor codename	Bay Trail
Processor frequency	1.46 GHz
Processor cache type	L2
Processor manufacturer	Intel
Processor package size	25 x 27 mm
Conflict-Free processor	Yes
Processor front side bus	- MHz
Processor operating modes	32-bit, 64-bit
Graphics & IMC lithography	22 nm
PCI Express configurations	1x1, 1x4, 2x1
Thermal Design Power (TDP)	7 W
Internal memory	4 GB
Internal memory type	DDR3-SDRAM
Storage media	Flash
Compatible memory cards	-
Internal storage capacity	64 GB
Display diagonal	12.1 \
Display brightness	900 cd/m²
Display resolution	1024 x 768 pixels
Graphics card	HD Graphics
Rear camera resolution (numeric)	- MP
Wi-Fi standards	802.11a, 802.11b, 802.11g
Bluetooth version	2.0+EDR
Top Wi-Fi standard	Wi-Fi 4 (802.11n)
HDMI ports quantity	0
USB 2.0 ports quantity	1
I/O ports	1x CAN-bus, RF
Processor ARK ID	78477
Processor socket	BGA 1170
Operating temperature (T-T)	-30 - 50 °C
Operating relative humidity (H-H)	5 - 95 %
Platform	Windows
Bundled software	Data Collection Engine, Microsoft Internet Explorer, Microsoft on-screen keyboard, Configuration Cloning Utility, Screen Blanking, Zoom Zone, Launcher
Operating system installed	Windows 7
AC adapter input voltage	90 - 240 V
Battery capacity	- mAh
Battery life (max)	0.5 h
Certification	EN 55024:2010, MIL-STD-810F, SAE-J1455, CCX
Device type	Tablet PC
Form factor	Slate
Product color	Grey, Silver
Protection features	Shock resistant, Vibration proof, Water resistant
International Protection (IP) code	IP66
Harmonized System (HS) code	84713000

Weight and Dimensions

Depth	62 mm
Width	318 mm
Height	260 mm
Weight	3000 g
