Taskbar Icons
As Thor VM3 devices and applications open and change state, icons are placed in the
Taskbar. In most cases, tapping the icon in the Taskbar opens the related application.
Refer to Start > Help for an explanation of standard Windows Embedded Compact task-
bar icons.

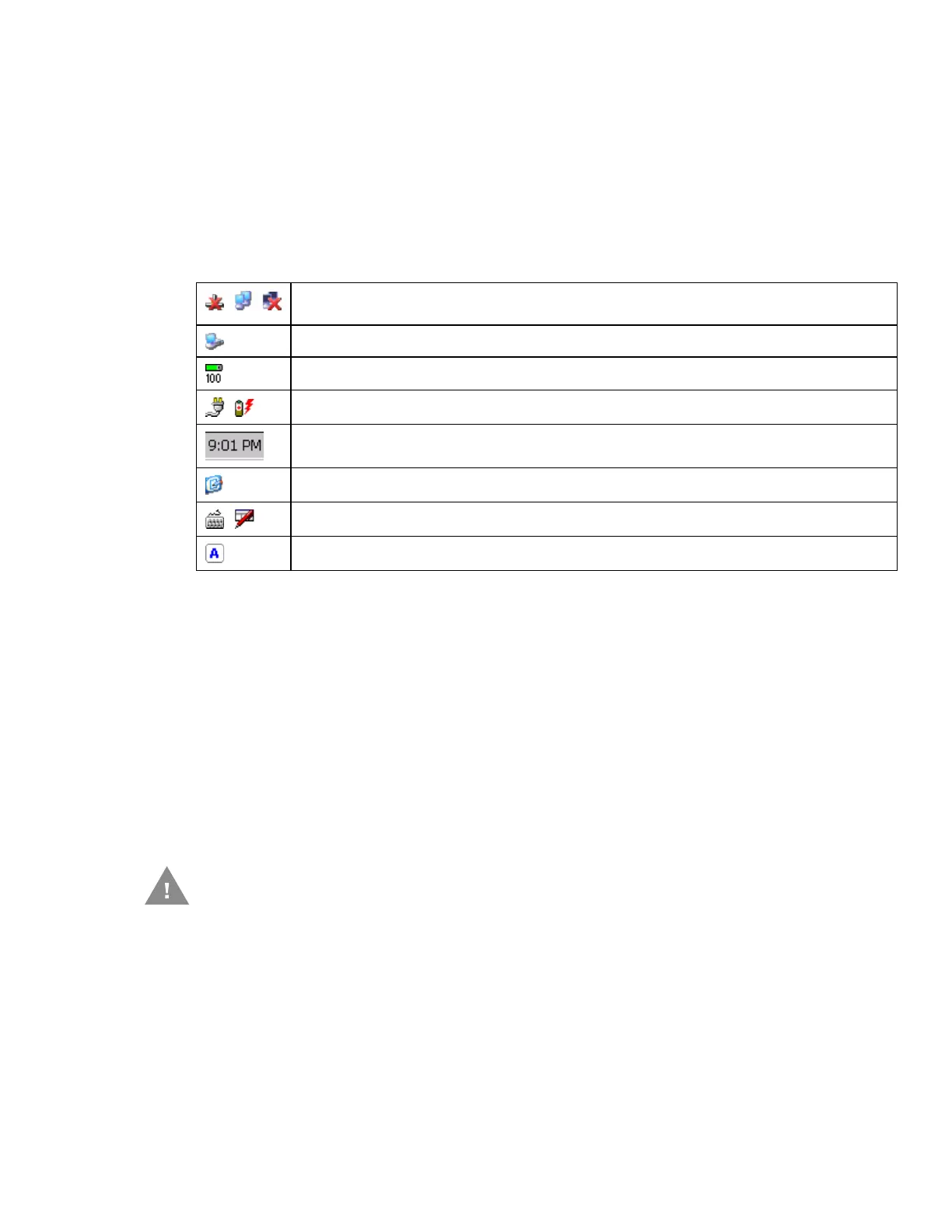

Following are a few of the Thor VM3 taskbar icons that may appear in the Taskbar. These
icons are in addition to the Windows Embedded Compact taskbar icons.
Thor VM3 OS Upgrade
Introduction
Depending on the size of the operating system, the total time required for a successful
upgrade may require several minutes.
There may be firmware and BIOS upgrades available for the Thor VM3. Contact
Technical Assistance for upgrade information and instructions. In some cases, it may be
necessary to upgrade firmware before upgrading the operating system.
Preparation
•Contact Technical Assistance to get the OS upgrade files.
• Honeywell Technical Assistance may advise you that additional upgrades such as
BIOS or firmware are required before upgrading the OS. Please follow any additional
upgrade instructions provided by Technical Assistance.
Wireless Zero Config Inactive / Connected / Not Connected.
Clicking on the icon opens the Wireless Zero Config utility.
ActiveSync connection
UPS battery charge indicator. Percent of battery charge is indicated.
External power connected / connected and UPS battery charging.
Current time. Clicking the time display opens the Date / Time control panel.
Click this icon to return to the Desktop.
Input method, keyboard / input panel.
CapsLock active.
Caution: The Thor VM3 must be connected to external power before
upgrading the BIOS, firmware or operating systems.
If the Thor VM3 is operating on UPS battery power, the upgrade
process does not initiate and the Thor VM3 is not upgraded.

Honeywell Thor VM3 Specifications

General

Stepping	D0
Tjunction	-40 °C
FSB Parity	No
Processor code	SR1X8
Processor cache	1 MB
Processor cores	2
Processor model	E3826
System bus rate	- GT/s
Processor family	Intel Atom®
Processor codename	Bay Trail
Processor frequency	1.46 GHz
Processor cache type	L2
Processor manufacturer	Intel
Processor package size	25 x 27 mm
Conflict-Free processor	Yes
Processor front side bus	- MHz
Processor operating modes	32-bit, 64-bit
Graphics & IMC lithography	22 nm
PCI Express configurations	1x1, 1x4, 2x1
Thermal Design Power (TDP)	7 W
Internal memory	4 GB
Internal memory type	DDR3-SDRAM
Storage media	Flash
Compatible memory cards	-
Internal storage capacity	64 GB
Display diagonal	12.1 \
Display brightness	900 cd/m²
Display resolution	1024 x 768 pixels
Graphics card	HD Graphics
Rear camera resolution (numeric)	- MP
Wi-Fi standards	802.11a, 802.11b, 802.11g
Bluetooth version	2.0+EDR
Top Wi-Fi standard	Wi-Fi 4 (802.11n)
HDMI ports quantity	0
USB 2.0 ports quantity	1
I/O ports	1x CAN-bus, RF
Processor ARK ID	78477
Processor socket	BGA 1170
Operating temperature (T-T)	-30 - 50 °C
Operating relative humidity (H-H)	5 - 95 %
Platform	Windows
Bundled software	Data Collection Engine, Microsoft Internet Explorer, Microsoft on-screen keyboard, Configuration Cloning Utility, Screen Blanking, Zoom Zone, Launcher
Operating system installed	Windows 7
AC adapter input voltage	90 - 240 V
Battery capacity	- mAh
Battery life (max)	0.5 h
Certification	EN 55024:2010, MIL-STD-810F, SAE-J1455, CCX
Device type	Tablet PC
Form factor	Slate
Product color	Grey, Silver
Protection features	Shock resistant, Vibration proof, Water resistant
International Protection (IP) code	IP66
Harmonized System (HS) code	84713000

Weight and Dimensions

Depth	62 mm
Width	318 mm
Height	260 mm
Weight	3000 g
