NumLock
For the 95-key PS/2 keyboard, the NumLock key and the numeric keys are backlit green
when NumLock is off. When NumLock is on, the backlight for the NumLock key and the
numeric keys is amber.
CapsLock and Scroll Lock
For the 95-key PS/2 keyboard, the CapsLock key is backlit green when CapsLock is off.
When CapsLock is on, the backlight for the CapsLock key is amber.
The Scroll Lock key is backlit green when Scroll Lock is off. When Scroll Lock is on, the
backlight for the Scroll Lock key is amber.
The default values for CapsLock and Scroll Lock are Off.
Keyboard Backlight
The keyboard keys are backlit. The keyboard backlight is manually controlled using the
backlight key in the upper right hand corner of the keyboard. Pressing the backlight key
cycles the keyboard backlight through the levels of backlight intensity: Off, Low inten-
sity, Medium intensity, Maximum intensity, Off, etc.

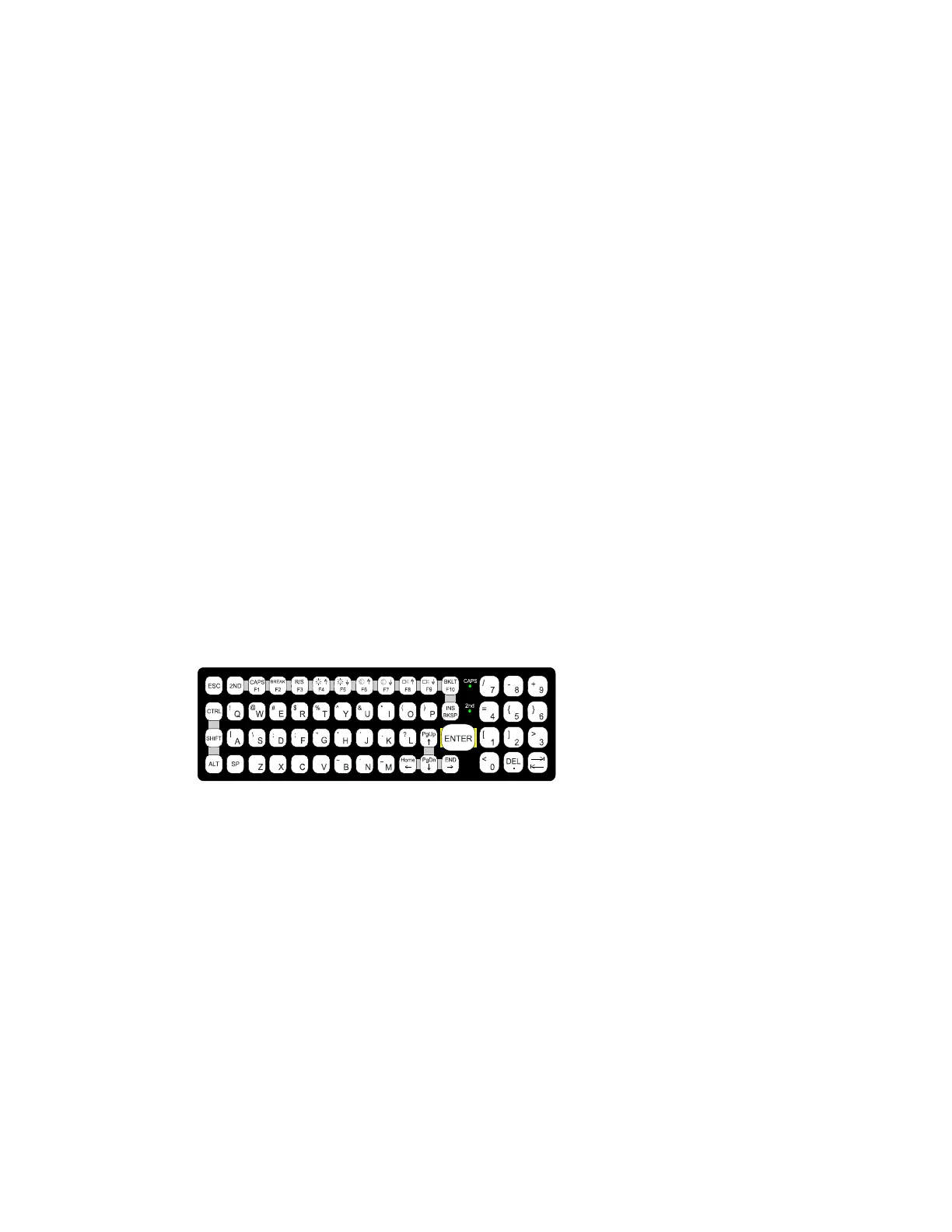

60-key PS/2 Keyboard
The 60-key PS/2 keyboard is part number 160068-0001 (see decal on back of key-
board).
An adapter cable is required to attach this keyboard to the Thor VM3. See Connect PS/2
Keyboard for details.
The 60-key keyboard has 101 keyboard functions, including a numeric keyboard pad.
Key Maps
The 60-key keyboard supports all 101 keyboard functions. However, because the key-
board only has 60 keys, all functions are not visible (or printed on the keyboard). There-
fore the Thor VM3 keyboard supports what is called hidden keys - keys that are
accessible but not visible on the keyboard.
On standard keyboards many keys are found in the Alphanumeric section as well as on
the Numeric keypad (i.e. the 1 key is found on the numeric keypad and above the alpha
characters on standard keyboards). However these keys send distinctly different scan
codes when the keys are pressed. The default codes for the Thor VM3 number keys cor-
respond to the numeric keypad on standard keyboards. In order to duplicate the codes
sent when the alphanumeric key is pressed, the hidden keystroke must be used.
Refer to External 60-Key Keyboard for keymaps.

Honeywell Thor VM3 Specifications

General

Stepping	D0
Tjunction	-40 °C
FSB Parity	No
Processor code	SR1X8
Processor cache	1 MB
Processor cores	2
Processor model	E3826
System bus rate	- GT/s
Processor family	Intel Atom®
Processor codename	Bay Trail
Processor frequency	1.46 GHz
Processor cache type	L2
Processor manufacturer	Intel
Processor package size	25 x 27 mm
Conflict-Free processor	Yes
Processor front side bus	- MHz
Processor operating modes	32-bit, 64-bit
Graphics & IMC lithography	22 nm
PCI Express configurations	1x1, 1x4, 2x1
Thermal Design Power (TDP)	7 W
Internal memory	4 GB
Internal memory type	DDR3-SDRAM
Storage media	Flash
Compatible memory cards	-
Internal storage capacity	64 GB
Display diagonal	12.1 \
Display brightness	900 cd/m²
Display resolution	1024 x 768 pixels
Graphics card	HD Graphics
Rear camera resolution (numeric)	- MP
Wi-Fi standards	802.11a, 802.11b, 802.11g
Bluetooth version	2.0+EDR
Top Wi-Fi standard	Wi-Fi 4 (802.11n)
HDMI ports quantity	0
USB 2.0 ports quantity	1
I/O ports	1x CAN-bus, RF
Processor ARK ID	78477
Processor socket	BGA 1170
Operating temperature (T-T)	-30 - 50 °C
Operating relative humidity (H-H)	5 - 95 %
Platform	Windows
Bundled software	Data Collection Engine, Microsoft Internet Explorer, Microsoft on-screen keyboard, Configuration Cloning Utility, Screen Blanking, Zoom Zone, Launcher
Operating system installed	Windows 7
AC adapter input voltage	90 - 240 V
Battery capacity	- mAh
Battery life (max)	0.5 h
Certification	EN 55024:2010, MIL-STD-810F, SAE-J1455, CCX
Device type	Tablet PC
Form factor	Slate
Product color	Grey, Silver
Protection features	Shock resistant, Vibration proof, Water resistant
International Protection (IP) code	IP66
Harmonized System (HS) code	84713000

Weight and Dimensions

Depth	62 mm
Width	318 mm
Height	260 mm
Weight	3000 g
