Honeywell Thor VM3 User Manual

Thor VM3 with Microsoft Windows Embedded Compact 7 User Guide 107
External AC/DC Power Supply
The optional external AC/DC power supply is for use in environments, such as an office,
where DC power is not available.
Note: The Honeywell-approved AC/DC Power Supply and Adapter Cable are only intended for
use in a 40ºC (104ºF) maximum ambient temperature environment.
In North America, this unit is intended for use with a UL Listed ITE power supply with
output rated 15 VDC, 4 Amp (maximum), 60 W (maximum). Outside North America, this
unit is intended for use with an IEC certified ITE power supply with output rated 15 VDC,
4 Amp (maximum), 60 W (maximum).
The external power supply may be connected to either a 120V, 60Hz supply or, outside
North America, to a 230V, 50Hz supply, using the appropriate detachable cordset. In all
cases, connect to a properly grounded source of supply provided with maximum 15
Amp overcurrent protection (10 Amp for 230V circuits).
Connect External Power Supply
1. Connect the provided detachable cordset (US only, all others must order cable sepa-
rately) to the external power supply (IEC 320 connector).
2. Plug cordset into appropriate, grounded, electrical supply receptacle (AC mains).
3. Connect the DC output cable end to the corresponding connector on the adapter
cable.
4. Connect the watertight connector end of the Adapter Cable to the VMXD Off-Vehicle
Dock power connector by aligning the connector pins to the power connector; push
down on the watertight connector and twist it to fasten securely.
5. Press the Power Switch on the back of the Thor VM3 dock.
6. Press the Power Button on the front of the Thor VM3 to turn on the Thor VM3.
These instructions for use with VMXD Enhanced Dock for Off-Vehicle Use
only.

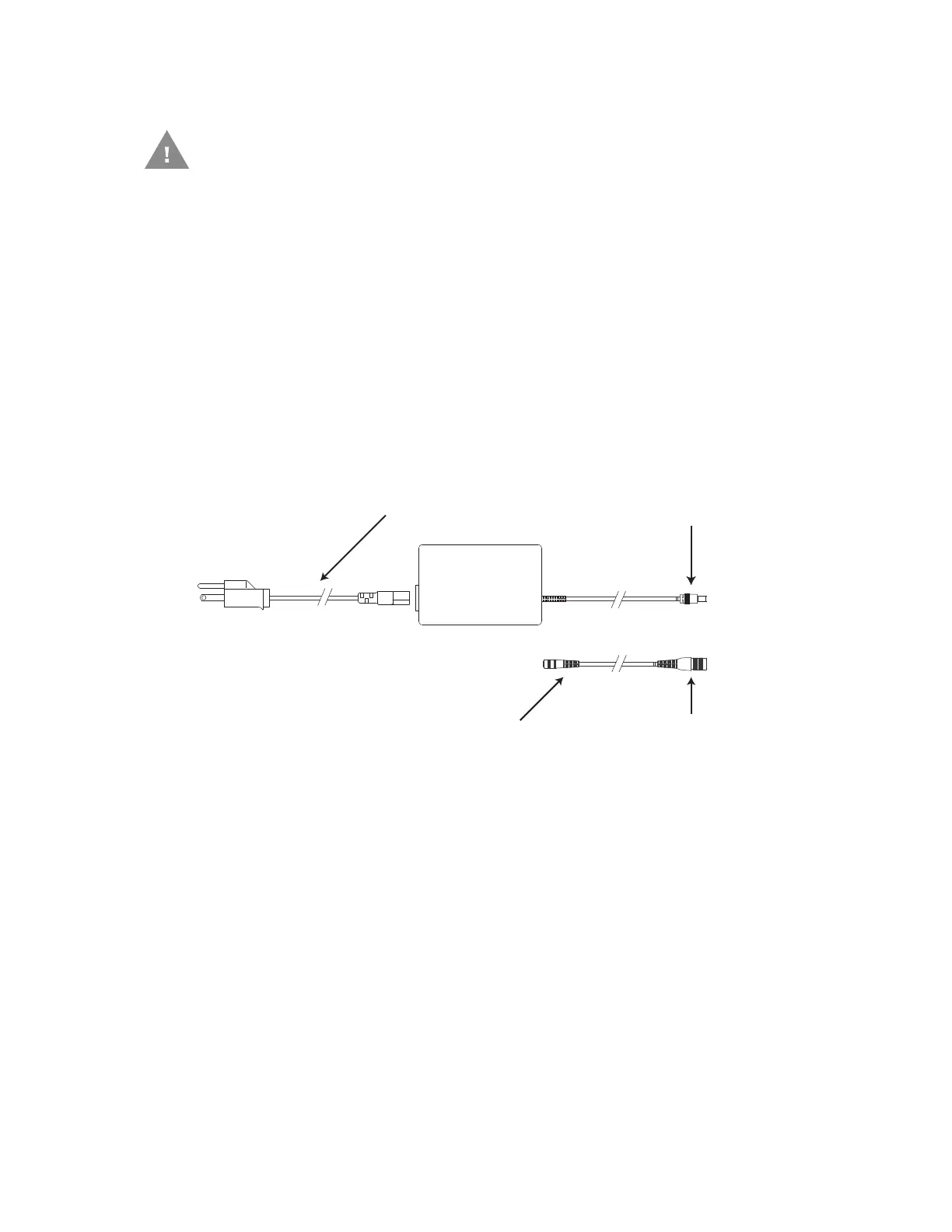

AC Input Cable (US only)
DC Output Cable
To DC Output Cable
To Dock

Honeywell Thor VM3 Specifications

General

Stepping	D0
Tjunction	-40 °C
FSB Parity	No
Processor code	SR1X8
Processor cache	1 MB
Processor cores	2
Processor model	E3826
System bus rate	- GT/s
Processor family	Intel Atom®
Processor codename	Bay Trail
Processor frequency	1.46 GHz
Processor cache type	L2
Processor manufacturer	Intel
Processor package size	25 x 27 mm
Conflict-Free processor	Yes
Processor front side bus	- MHz
Processor operating modes	32-bit, 64-bit
Graphics & IMC lithography	22 nm
PCI Express configurations	1x1, 1x4, 2x1
Thermal Design Power (TDP)	7 W
Internal memory	4 GB
Internal memory type	DDR3-SDRAM
Storage media	Flash
Compatible memory cards	-
Internal storage capacity	64 GB
Display diagonal	12.1 \
Display brightness	900 cd/m²
Display resolution	1024 x 768 pixels
Graphics card	HD Graphics
Rear camera resolution (numeric)	- MP
Wi-Fi standards	802.11a, 802.11b, 802.11g
Bluetooth version	2.0+EDR
Top Wi-Fi standard	Wi-Fi 4 (802.11n)
HDMI ports quantity	0
USB 2.0 ports quantity	1
I/O ports	1x CAN-bus, RF
Processor ARK ID	78477
Processor socket	BGA 1170
Operating temperature (T-T)	-30 - 50 °C
Operating relative humidity (H-H)	5 - 95 %
Platform	Windows
Bundled software	Data Collection Engine, Microsoft Internet Explorer, Microsoft on-screen keyboard, Configuration Cloning Utility, Screen Blanking, Zoom Zone, Launcher
Operating system installed	Windows 7
AC adapter input voltage	90 - 240 V
Battery capacity	- mAh
Battery life (max)	0.5 h
Certification	EN 55024:2010, MIL-STD-810F, SAE-J1455, CCX
Device type	Tablet PC
Form factor	Slate
Product color	Grey, Silver
Protection features	Shock resistant, Vibration proof, Water resistant
International Protection (IP) code	IP66
Harmonized System (HS) code	84713000

Weight and Dimensions

Depth	62 mm
Width	318 mm
Height	260 mm
Weight	3000 g
