5. Select the type of scanner to add:
Note: The bar codes below are samples. Do not scan these to connect a Bluetooth scanner. Scan
the bar code on your device
Note: If this choice is not presented, the on-screen bar code displayed is only valid for SF51,
SF61 or SR61 bar code scanners.
Note: Not all bar code scanners can read the bar code from the screen. If this process fails, use
the printed label on the device. See Using Quick Connect with On Screen Bar Code.
Search
To search for a Bluetooth scanner:
1. Select Bluetooth Scanning from the Control Panel (either large or small icon view
option must be selected).
2. Tap Add Device.
3. Select Search.
4. Tap Next.
5. Select the scanner from the devices shown.
6. Tap Next.

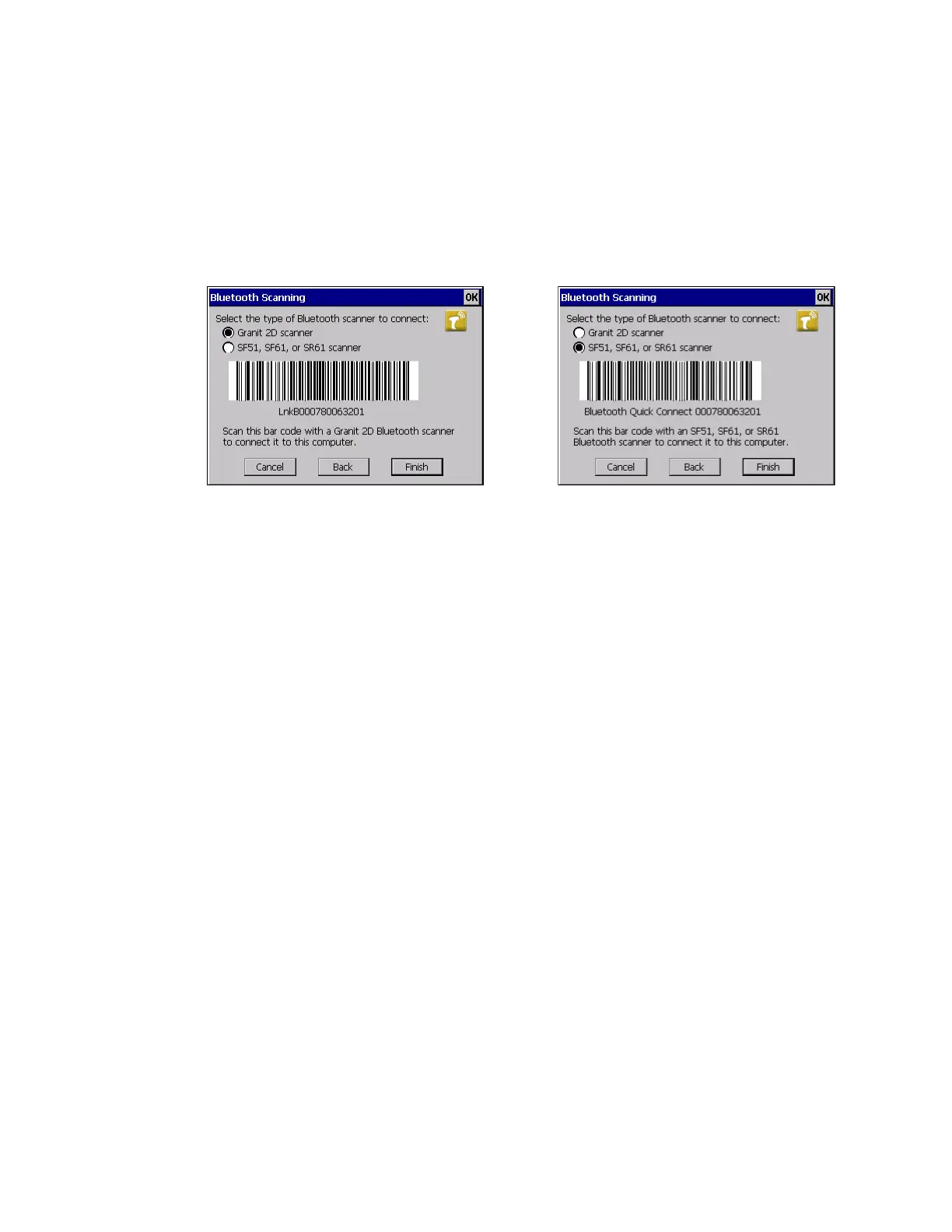

Select Granit 2D scanner to display this
bar code
Select SF51, SF61 or SR61 scanner to
display this bar code
Scan the displayed bar code to connect
one of these scanners:
• Honeywell/LXE 8650 family of
Bluetooth ring scanners
• Honeywell Granit 1911i Bluetooth
scanner
• Honeywell Granit 1981i Bluetooth
scanner
• LXE 88x0 family of Bluetooth
scanners
Scan the displayed bar code to connect
one of these scanners:
• Intermec SF51 Bluetooth scanner
• Intermec SF61 Bluetooth scanner
• Intermec SR61 Bluetooth scanner

Honeywell Thor VM3 Specifications

General

Stepping	D0
Tjunction	-40 °C
FSB Parity	No
Processor code	SR1X8
Processor cache	1 MB
Processor cores	2
Processor model	E3826
System bus rate	- GT/s
Processor family	Intel Atom®
Processor codename	Bay Trail
Processor frequency	1.46 GHz
Processor cache type	L2
Processor manufacturer	Intel
Processor package size	25 x 27 mm
Conflict-Free processor	Yes
Processor front side bus	- MHz
Processor operating modes	32-bit, 64-bit
Graphics & IMC lithography	22 nm
PCI Express configurations	1x1, 1x4, 2x1
Thermal Design Power (TDP)	7 W
Internal memory	4 GB
Internal memory type	DDR3-SDRAM
Storage media	Flash
Compatible memory cards	-
Internal storage capacity	64 GB
Display diagonal	12.1 \
Display brightness	900 cd/m²
Display resolution	1024 x 768 pixels
Graphics card	HD Graphics
Rear camera resolution (numeric)	- MP
Wi-Fi standards	802.11a, 802.11b, 802.11g
Bluetooth version	2.0+EDR
Top Wi-Fi standard	Wi-Fi 4 (802.11n)
HDMI ports quantity	0
USB 2.0 ports quantity	1
I/O ports	1x CAN-bus, RF
Processor ARK ID	78477
Processor socket	BGA 1170
Operating temperature (T-T)	-30 - 50 °C
Operating relative humidity (H-H)	5 - 95 %
Platform	Windows
Bundled software	Data Collection Engine, Microsoft Internet Explorer, Microsoft on-screen keyboard, Configuration Cloning Utility, Screen Blanking, Zoom Zone, Launcher
Operating system installed	Windows 7
AC adapter input voltage	90 - 240 V
Battery capacity	- mAh
Battery life (max)	0.5 h
Certification	EN 55024:2010, MIL-STD-810F, SAE-J1455, CCX
Device type	Tablet PC
Form factor	Slate
Product color	Grey, Silver
Protection features	Shock resistant, Vibration proof, Water resistant
International Protection (IP) code	IP66
Harmonized System (HS) code	84713000

Weight and Dimensions

Depth	62 mm
Width	318 mm
Height	260 mm
Weight	3000 g
