Modifying Settings
Advanced user only. Basic user cannot view the expanded tree or modify settings.
When settings have been loaded (either from Registry > Import Settings or File > Open)

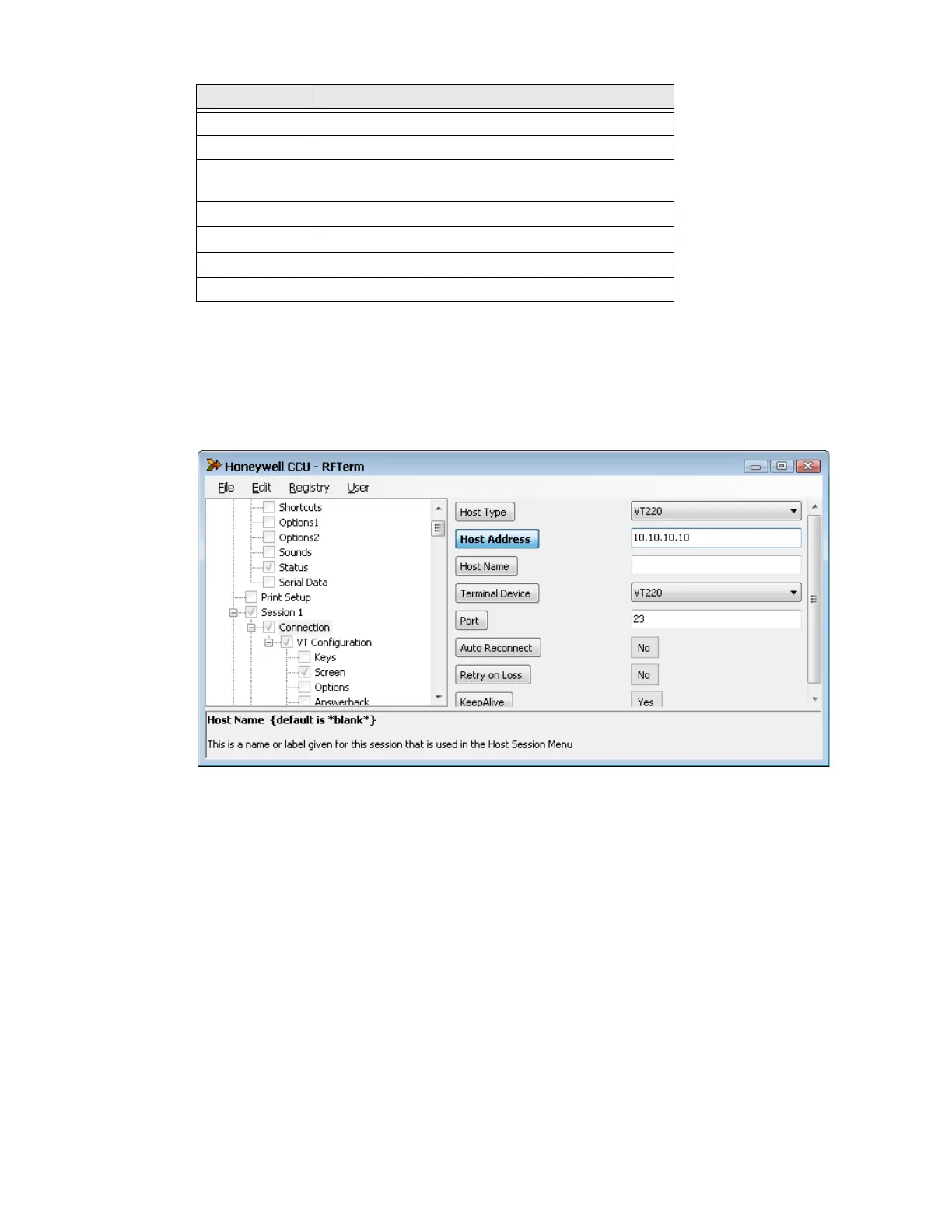

the following screen is displayed.
The left side of the upper pane displays the current program settings that have been
imported or are part of the open ccf file. Click the + icon to expand the tree or the - icon
to condense the tree. When the tree is expanded sufficiently to view the settings, the
settings are displayed in the right portion of the upper pane. When a parameter is
selected, the name of the parameter is highlighted in blue. The parameter name
remains highlighted in blue (regardless of if the value was changed or not) until the
parameter name button is tapped a second time. Enter a new value for the parameter as
desired. Depending on the parameter selected, the following entry types are available:
• Text box - This is an open entry field and a new value can be typed into the text box.
Depending on the parameter, there may be validity checking to ensure the entry in
the text box is within the valid range.
• Pull-down list - A down arrow indicates the setting must be selected from a pull-down
list of available values. Expand the list and select the desired setting from the list of
options.
CTRL + X Cuts the data
CTRL + C Copies the selected data to the clipboard
CTRL + V Pastes the data from the clipboard at the current
location
CTRL + I Displays import setting list
CTRL + L Modified settings are applied
CTRL + B Basic settings are displayed
CTRL + D Advanced settings are displayed
Shortcut key Action

Honeywell Thor VM3 Specifications

General

Stepping	D0
Tjunction	-40 °C
FSB Parity	No
Processor code	SR1X8
Processor cache	1 MB
Processor cores	2
Processor model	E3826
System bus rate	- GT/s
Processor family	Intel Atom®
Processor codename	Bay Trail
Processor frequency	1.46 GHz
Processor cache type	L2
Processor manufacturer	Intel
Processor package size	25 x 27 mm
Conflict-Free processor	Yes
Processor front side bus	- MHz
Processor operating modes	32-bit, 64-bit
Graphics & IMC lithography	22 nm
PCI Express configurations	1x1, 1x4, 2x1
Thermal Design Power (TDP)	7 W
Internal memory	4 GB
Internal memory type	DDR3-SDRAM
Storage media	Flash
Compatible memory cards	-
Internal storage capacity	64 GB
Display diagonal	12.1 \
Display brightness	900 cd/m²
Display resolution	1024 x 768 pixels
Graphics card	HD Graphics
Rear camera resolution (numeric)	- MP
Wi-Fi standards	802.11a, 802.11b, 802.11g
Bluetooth version	2.0+EDR
Top Wi-Fi standard	Wi-Fi 4 (802.11n)
HDMI ports quantity	0
USB 2.0 ports quantity	1
I/O ports	1x CAN-bus, RF
Processor ARK ID	78477
Processor socket	BGA 1170
Operating temperature (T-T)	-30 - 50 °C
Operating relative humidity (H-H)	5 - 95 %
Platform	Windows
Bundled software	Data Collection Engine, Microsoft Internet Explorer, Microsoft on-screen keyboard, Configuration Cloning Utility, Screen Blanking, Zoom Zone, Launcher
Operating system installed	Windows 7
AC adapter input voltage	90 - 240 V
Battery capacity	- mAh
Battery life (max)	0.5 h
Certification	EN 55024:2010, MIL-STD-810F, SAE-J1455, CCX
Device type	Tablet PC
Form factor	Slate
Product color	Grey, Silver
Protection features	Shock resistant, Vibration proof, Water resistant
International Protection (IP) code	IP66
Harmonized System (HS) code	84713000

Weight and Dimensions

Depth	62 mm
Width	318 mm
Height	260 mm
Weight	3000 g
