60 Thor VM3 with Microsoft Windows Embedded Compact 7 User Guide

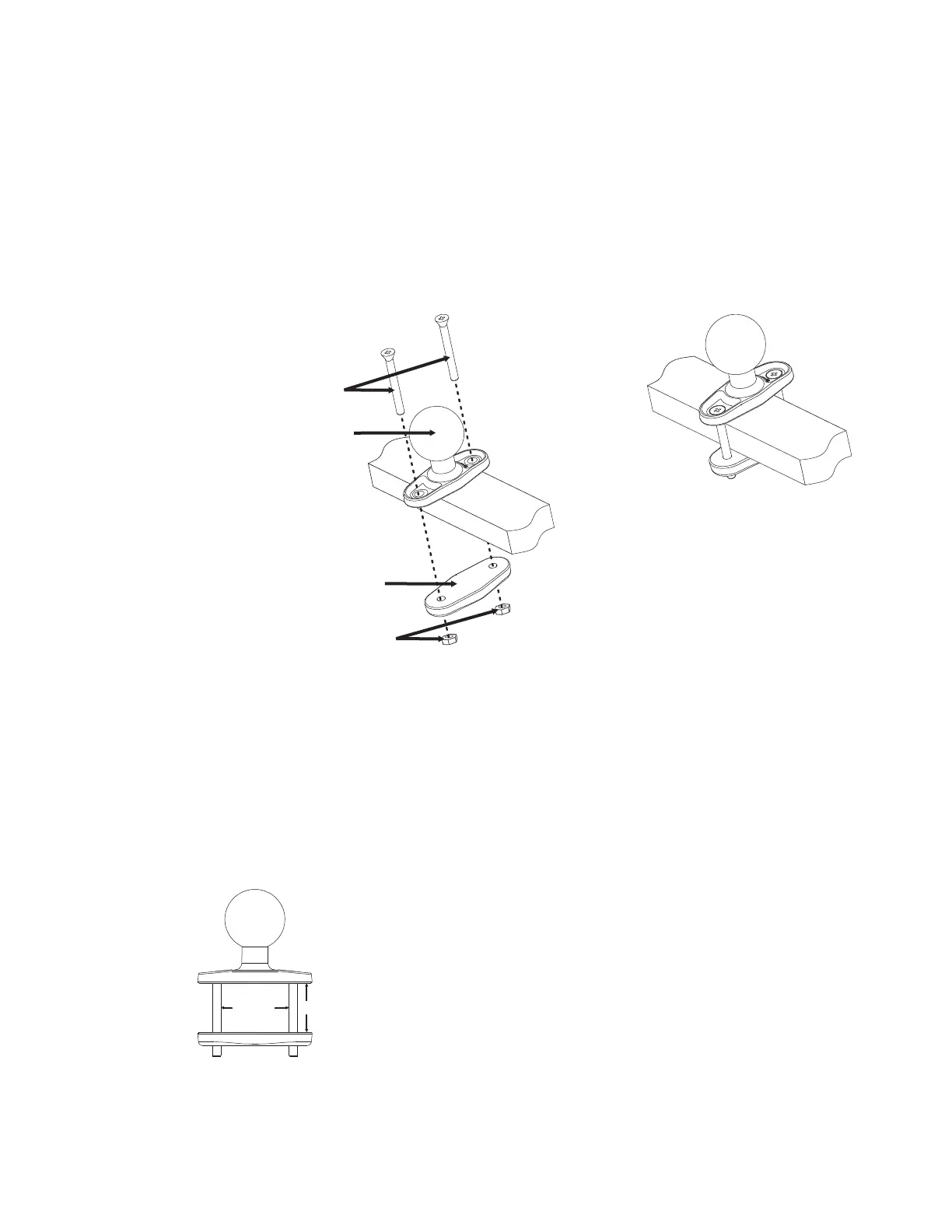

Step 1b – Mount RAM Clamp to Vehicle
Note: If you are using the RAM ball mount, please go to Step 1a – Attach RAM Ball to Vehicle. If
you are using the RAM plate mount, please go to Step 1c – Attach RAM Plate to Vehicle and
Attach RAM Ball.
1. Determine the position for mounting the RAM clamp mount. The clamp mount can
be used on a beam (such as on a fork lift truck) up to 2.5” (63.5 mm) wide and
approximately 2” (50.8 mm) thick. The clamp may be attached to a thicker beam by
substituting longer bolts (not included). Be sure to position the RAM clamp mount
to allow access to the switches and ports on the bottom of the Thor VM3.
Position the upper clamp piece with ball on the beam. Place the bolts through the
holes in the upper clamp piece.
2. Position the lower clamp piece below the beam. Align the bolts with the holes in the
lower clamp piece.
3. Place the nylon locking nuts on the bolts and tighten the bolts.
Mounting Dimensions
Note: Drawing not to scale.
Upper clamp piece
Bolts
Lower clamp piece
Nuts
2.56” /
65.02mm
1.84”
(46.74mm)

Honeywell Thor VM3 Specifications

General

Stepping	D0
Tjunction	-40 °C
FSB Parity	No
Processor code	SR1X8
Processor cache	1 MB
Processor cores	2
Processor model	E3826
System bus rate	- GT/s
Processor family	Intel Atom®
Processor codename	Bay Trail
Processor frequency	1.46 GHz
Processor cache type	L2
Processor manufacturer	Intel
Processor package size	25 x 27 mm
Conflict-Free processor	Yes
Processor front side bus	- MHz
Processor operating modes	32-bit, 64-bit
Graphics & IMC lithography	22 nm
PCI Express configurations	1x1, 1x4, 2x1
Thermal Design Power (TDP)	7 W
Internal memory	4 GB
Internal memory type	DDR3-SDRAM
Storage media	Flash
Compatible memory cards	-
Internal storage capacity	64 GB
Display diagonal	12.1 \
Display brightness	900 cd/m²
Display resolution	1024 x 768 pixels
Graphics card	HD Graphics
Rear camera resolution (numeric)	- MP
Wi-Fi standards	802.11a, 802.11b, 802.11g
Bluetooth version	2.0+EDR
Top Wi-Fi standard	Wi-Fi 4 (802.11n)
HDMI ports quantity	0
USB 2.0 ports quantity	1
I/O ports	1x CAN-bus, RF
Processor ARK ID	78477
Processor socket	BGA 1170
Operating temperature (T-T)	-30 - 50 °C
Operating relative humidity (H-H)	5 - 95 %
Platform	Windows
Bundled software	Data Collection Engine, Microsoft Internet Explorer, Microsoft on-screen keyboard, Configuration Cloning Utility, Screen Blanking, Zoom Zone, Launcher
Operating system installed	Windows 7
AC adapter input voltage	90 - 240 V
Battery capacity	- mAh
Battery life (max)	0.5 h
Certification	EN 55024:2010, MIL-STD-810F, SAE-J1455, CCX
Device type	Tablet PC
Form factor	Slate
Product color	Grey, Silver
Protection features	Shock resistant, Vibration proof, Water resistant
International Protection (IP) code	IP66
Harmonized System (HS) code	84713000

Weight and Dimensions

Depth	62 mm
Width	318 mm
Height	260 mm
Weight	3000 g
