72 Thor VM3 with Microsoft Windows Embedded Compact 7 User Guide
Step 2 - Remove RAM Ball
If the Thor VM3 dock has a RAM ball attached, the RAM ball must be removed from the
dock to use the U Bracket mount.
Remove the RAM ball. The hardware used to attach the RAM ball to the dock is not
reused for the U bracket mount.

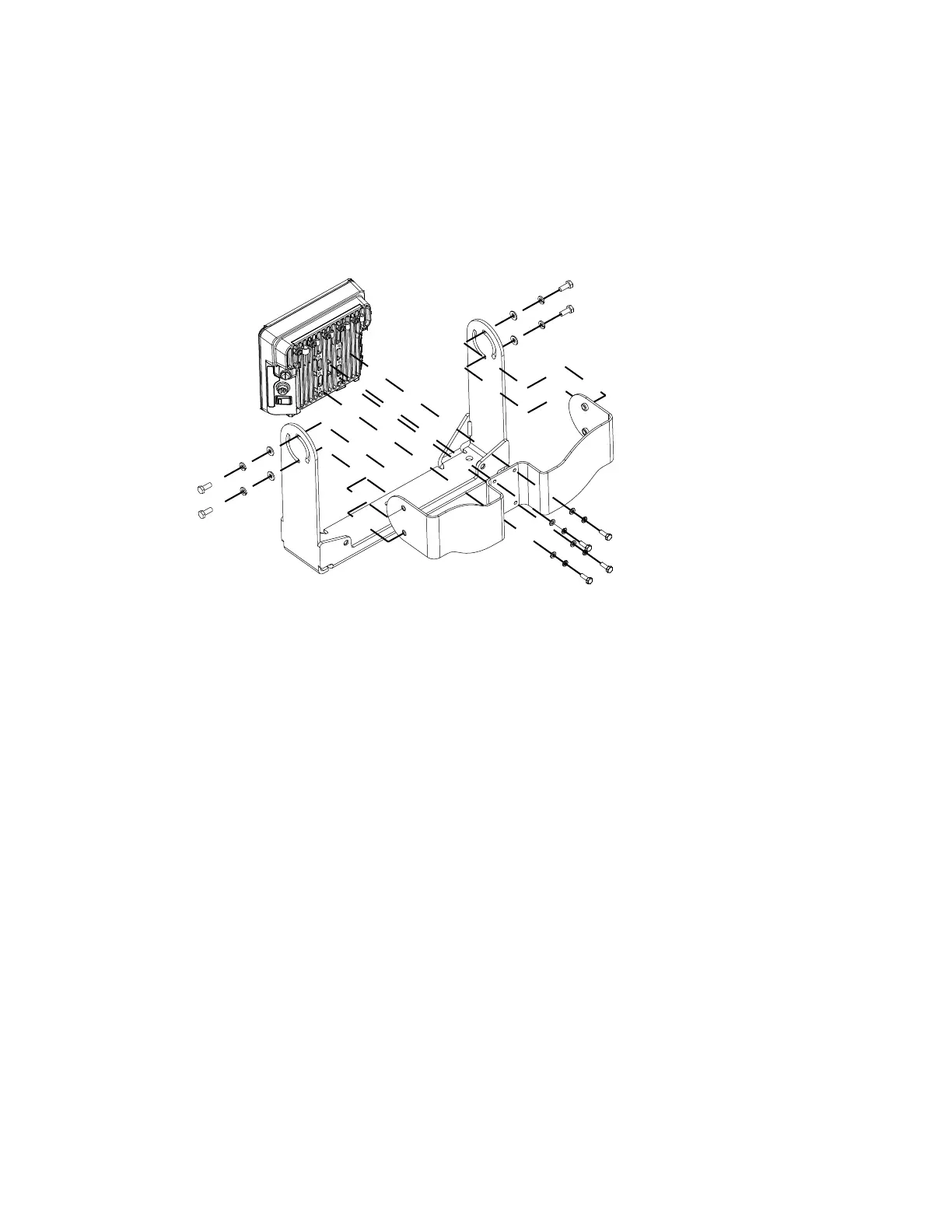

Step 3 - Attach Adapter Bracket
Note: For the steps below, always place the lock washer on the bolt before the flat washer.
1. Attach the Adapter Bracket to the Thor VM3 dock using four each M5x16mm bolt,
M5 lock washer and M5 flat washer. Torque to 35 in/lbs (4.0 N/m).
2. Attach the Thor VM3/Adapter Bracket assembly to the U Bracket using 4 each 1/4-
20x5/8 bolt, 1/4 lock washer and 1/4 flat washer.
3. If the Thor VM3 is not already mounted to the dock, Place Thor VM3 in the Dock.
4. Adjust the Thor VM3 to the desired viewing angle.
5. Torque the 14-20 bolts to 50 in/lbs (5.6 N/m).

Honeywell Thor VM3 Specifications

General

Stepping	D0
Tjunction	-40 °C
FSB Parity	No
Processor code	SR1X8
Processor cache	1 MB
Processor cores	2
Processor model	E3826
System bus rate	- GT/s
Processor family	Intel Atom®
Processor codename	Bay Trail
Processor frequency	1.46 GHz
Processor cache type	L2
Processor manufacturer	Intel
Processor package size	25 x 27 mm
Conflict-Free processor	Yes
Processor front side bus	- MHz
Processor operating modes	32-bit, 64-bit
Graphics & IMC lithography	22 nm
PCI Express configurations	1x1, 1x4, 2x1
Thermal Design Power (TDP)	7 W
Internal memory	4 GB
Internal memory type	DDR3-SDRAM
Storage media	Flash
Compatible memory cards	-
Internal storage capacity	64 GB
Display diagonal	12.1 \
Display brightness	900 cd/m²
Display resolution	1024 x 768 pixels
Graphics card	HD Graphics
Rear camera resolution (numeric)	- MP
Wi-Fi standards	802.11a, 802.11b, 802.11g
Bluetooth version	2.0+EDR
Top Wi-Fi standard	Wi-Fi 4 (802.11n)
HDMI ports quantity	0
USB 2.0 ports quantity	1
I/O ports	1x CAN-bus, RF
Processor ARK ID	78477
Processor socket	BGA 1170
Operating temperature (T-T)	-30 - 50 °C
Operating relative humidity (H-H)	5 - 95 %
Platform	Windows
Bundled software	Data Collection Engine, Microsoft Internet Explorer, Microsoft on-screen keyboard, Configuration Cloning Utility, Screen Blanking, Zoom Zone, Launcher
Operating system installed	Windows 7
AC adapter input voltage	90 - 240 V
Battery capacity	- mAh
Battery life (max)	0.5 h
Certification	EN 55024:2010, MIL-STD-810F, SAE-J1455, CCX
Device type	Tablet PC
Form factor	Slate
Product color	Grey, Silver
Protection features	Shock resistant, Vibration proof, Water resistant
International Protection (IP) code	IP66
Harmonized System (HS) code	84713000

Weight and Dimensions

Depth	62 mm
Width	318 mm
Height	260 mm
Weight	3000 g
