Honeywell Thor VM3 User Manual

Thor VM3 with Microsoft Windows Embedded Compact 7 User Guide 85
Fuse Requirements
•For all voltages, use the 3A fuse from the kit or a slow blow fuse that has a DC voltage
rating greater than the vehicle input voltage.
Note: Note: For North America, a UL Listed fuse is to be used.
Power Cable Identification
The DC power cable is included with the dock:
Note: Correct electrical polarity is required for safe and proper installation. See Wiring Diagram
for additional wire color-coding specifics.
The Thor VM3 DC input wires (Red, Red/White DC+ and Black, Black/White DC-) and
the Blue ignition input wire are galvanically isolated. The Green ground input is used for
electrostatic discharge (ESD) protection.
Vehicle 50-150VDC Power Connection
1. Please review the Wiring Diagram, before beginning power cable install.
2. The Thor VM3 must not be mounted in the dock. The power switch on the dock must
be turned Off. The power cable must be UNPLUGGED from the dock.
3. Route the cable from the Thor VM3 to the DC/DC power supply. Route the power
cable the shortest way possible. The cable is rated for a maximum temperature of
105°C (221°F). When routing this cable, it should be protected from physical
damage and from surfaces that might exceed this temperature. Do not expose the
cable to chemicals or oil that may cause the wiring insulation to deteriorate. Always
route the cable so that it does not interfere with safe operation and maintenance of
the vehicle.
4. Cut the cable to length and strip the wire ends.
5. Remove the lid from the DC/DC power supply.
Warning: For proper and safe installation, the input power cable must be
connected to a fused circuit on the vehicle. If the supply
connection is made directly to the battery, the fuse should be
installed in the positive lead within 5 inches of the battery’s
positive (+) terminal. Use VM3055FUSE (or equivalent) to
install the fuse as shown below:

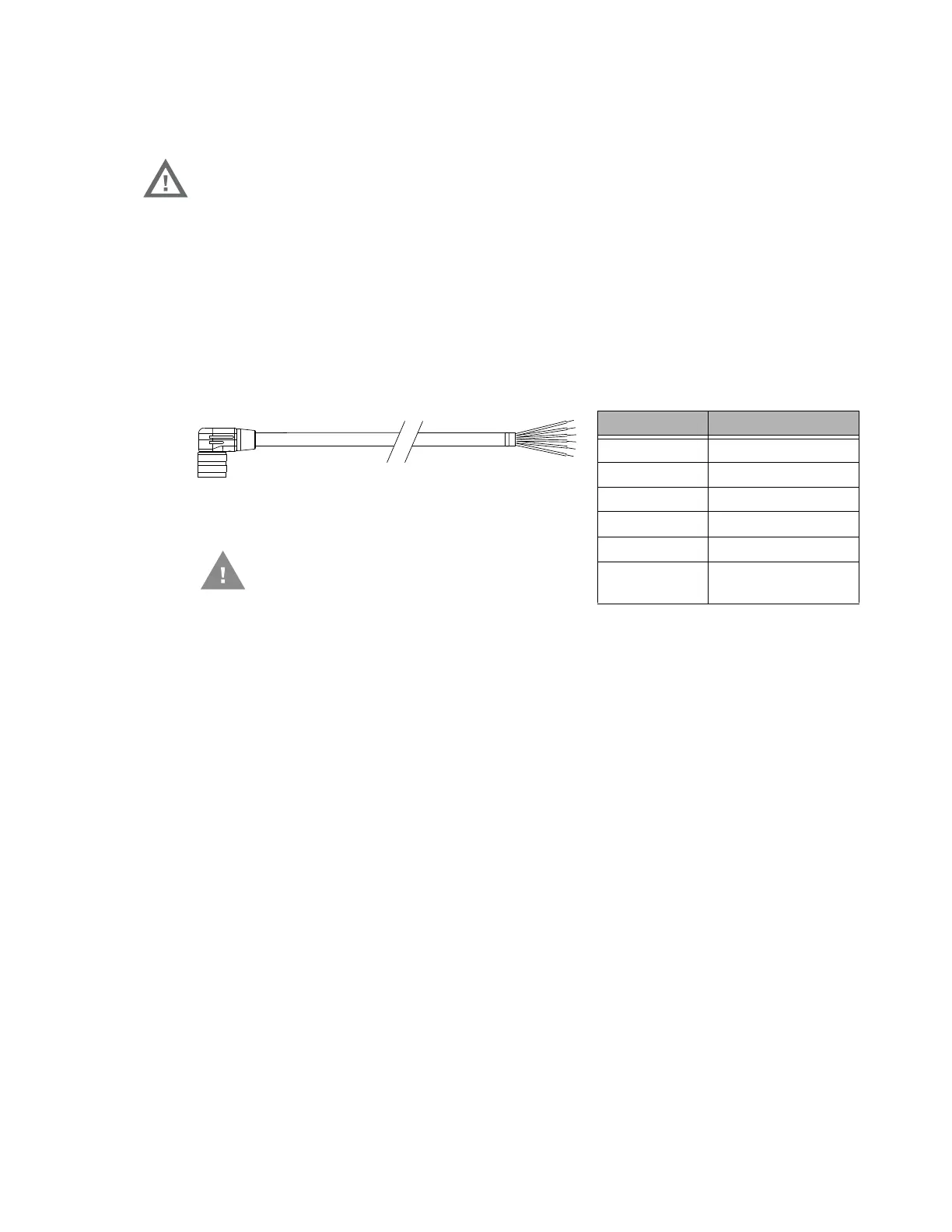

Wire Color Connection
Red DC + (10-60 VDC)
Red/White DC + (10-60 VDC)
Black DC -
Black/White DC -
Twist the red and red/white wires together and
twist the black and black/white wires together
before connecting to vehicle power.
Green Ground
Blue Ignition Input
(optional)

Honeywell Thor VM3 Specifications

General

Stepping	D0
Tjunction	-40 °C
FSB Parity	No
Processor code	SR1X8
Processor cache	1 MB
Processor cores	2
Processor model	E3826
System bus rate	- GT/s
Processor family	Intel Atom®
Processor codename	Bay Trail
Processor frequency	1.46 GHz
Processor cache type	L2
Processor manufacturer	Intel
Processor package size	25 x 27 mm
Conflict-Free processor	Yes
Processor front side bus	- MHz
Processor operating modes	32-bit, 64-bit
Graphics & IMC lithography	22 nm
PCI Express configurations	1x1, 1x4, 2x1
Thermal Design Power (TDP)	7 W
Internal memory	4 GB
Internal memory type	DDR3-SDRAM
Storage media	Flash
Compatible memory cards	-
Internal storage capacity	64 GB
Display diagonal	12.1 \
Display brightness	900 cd/m²
Display resolution	1024 x 768 pixels
Graphics card	HD Graphics
Rear camera resolution (numeric)	- MP
Wi-Fi standards	802.11a, 802.11b, 802.11g
Bluetooth version	2.0+EDR
Top Wi-Fi standard	Wi-Fi 4 (802.11n)
HDMI ports quantity	0
USB 2.0 ports quantity	1
I/O ports	1x CAN-bus, RF
Processor ARK ID	78477
Processor socket	BGA 1170
Operating temperature (T-T)	-30 - 50 °C
Operating relative humidity (H-H)	5 - 95 %
Platform	Windows
Bundled software	Data Collection Engine, Microsoft Internet Explorer, Microsoft on-screen keyboard, Configuration Cloning Utility, Screen Blanking, Zoom Zone, Launcher
Operating system installed	Windows 7
AC adapter input voltage	90 - 240 V
Battery capacity	- mAh
Battery life (max)	0.5 h
Certification	EN 55024:2010, MIL-STD-810F, SAE-J1455, CCX
Device type	Tablet PC
Form factor	Slate
Product color	Grey, Silver
Protection features	Shock resistant, Vibration proof, Water resistant
International Protection (IP) code	IP66
Harmonized System (HS) code	84713000

Weight and Dimensions

Depth	62 mm
Width	318 mm
Height	260 mm
Weight	3000 g
