Parts List
8.2 Removing the chassis

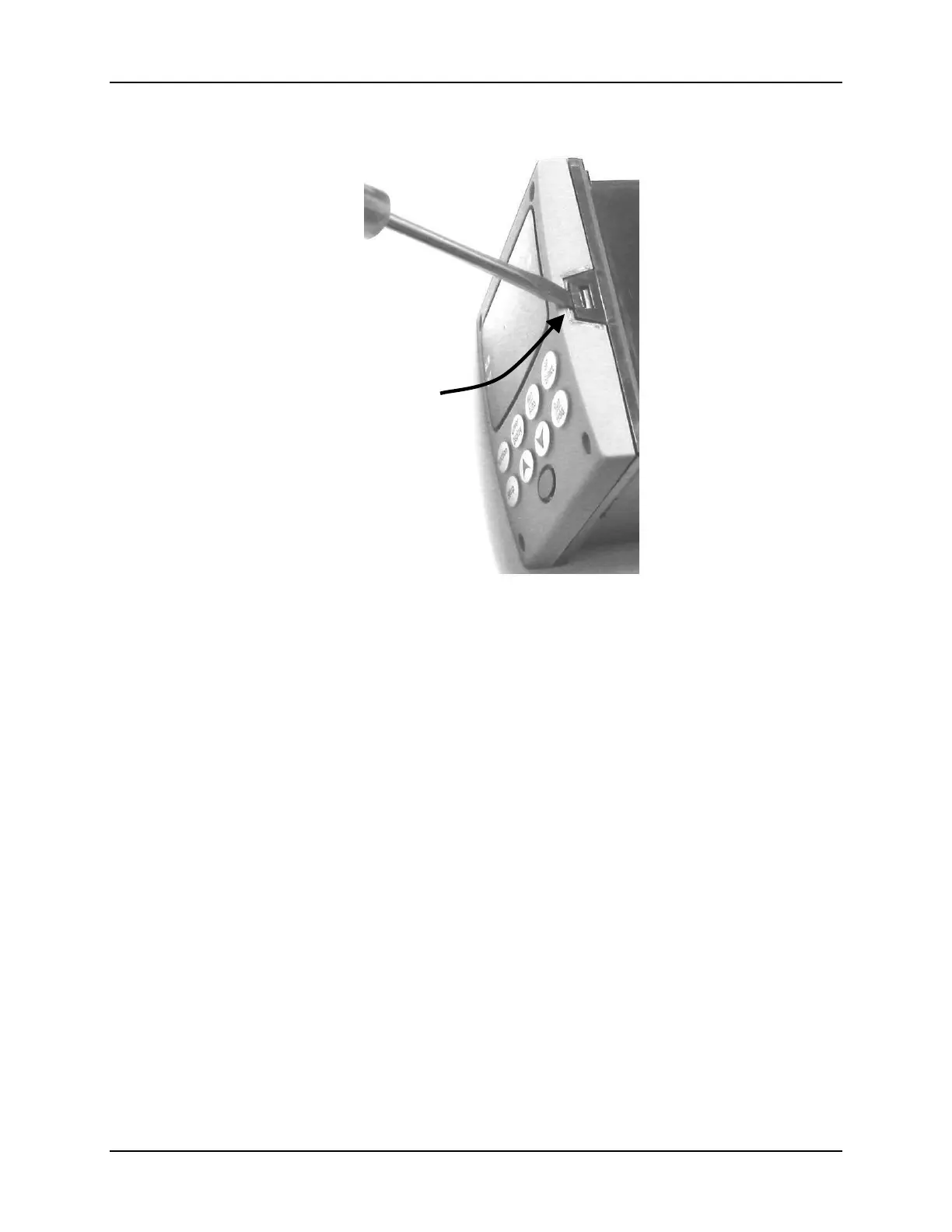

Insert thin screwdriver under
tabs and twist slightly and
gently to disengage front
Using a thin screwdriver, gently twist the screwdriver to pry the side tabs from the front
face. Pry just enough to release it, otherwise you’ll bend or break the tab. If you break or
bend the tab and can’t reattach the front snugly, you’ll need to reattach the front using the
4 NEMA4 screws provided. See Section 2.5 Mounting.
12/04 UDC3200 Universal Digital Controller Product Manual 175
