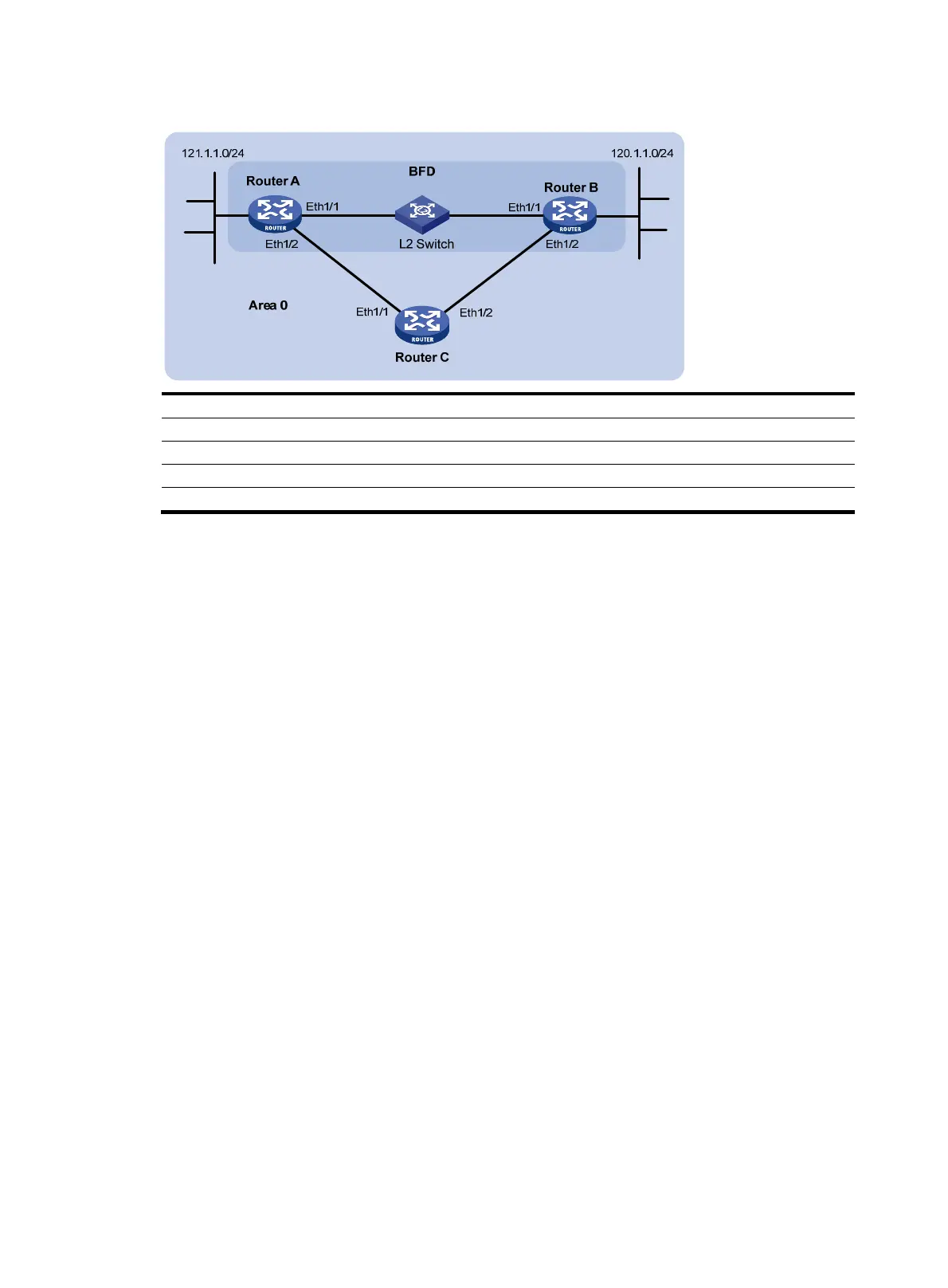

Figure 45 Network diagram

Device Interface IP address Device Interface IP address

Router A Eth1/1 192.168.0.102/24

Router B

Eth1/1

192.168.0.100/24

Eth1/2 10.1.1.102/24

Eth1/2

13.1.1.1/24

Router C Eth1/1 10.1.1.100/24

Eth1/2 13.1.1.2/24

Configuration procedure

1. Configure IP addresses for interfaces. (Details not shown.)

2. Configure basic IS-IS:

# Configure Router A.

<RouterA> system-view

[RouterA] isis

[RouterA-isis-1] network-entity 10.0000.0000.0001.00

[RouterA-isis-1] quit

[RouterA] interface ethernet 1/1

[RouterA-Ethernet1/1] isis enable

[RouterA-Ethernet1/1] quit

[RouterA] interface ethernet 1/2

[RouterA-Ethernet1/2] isis enable

[RouterA-Ethernet1/2] quit

# Configure Router B.

<RouterB> system-view

[RouterB] isis

[RouterB-isis-1] network-entity 10.0000.0000.0002.00

[RouterB-isis-1] quit

[RouterB] interface ethernet 1/1

[RouterB-Ethernet1/1] isis enable

[RouterB-Ethernet1/1] quit

[RouterB] interface ethernet 1/2

[RouterB-Ethernet1/2] isis enable

[RouterB-Ethernet1/2] quit

# Configure Router C.

<RouterC> system-view

[RouterC] isis
