Router D has learned the route 20.0.0.0/8 from Router C.
BGP confederation configuration example
Network requirements
As shown in Figure 68, to reduce IBGP connections, AS 200 is split into three sub-ASs: AS65001,
AS65002, and AS65003. Routers in AS65001 are fully meshed.

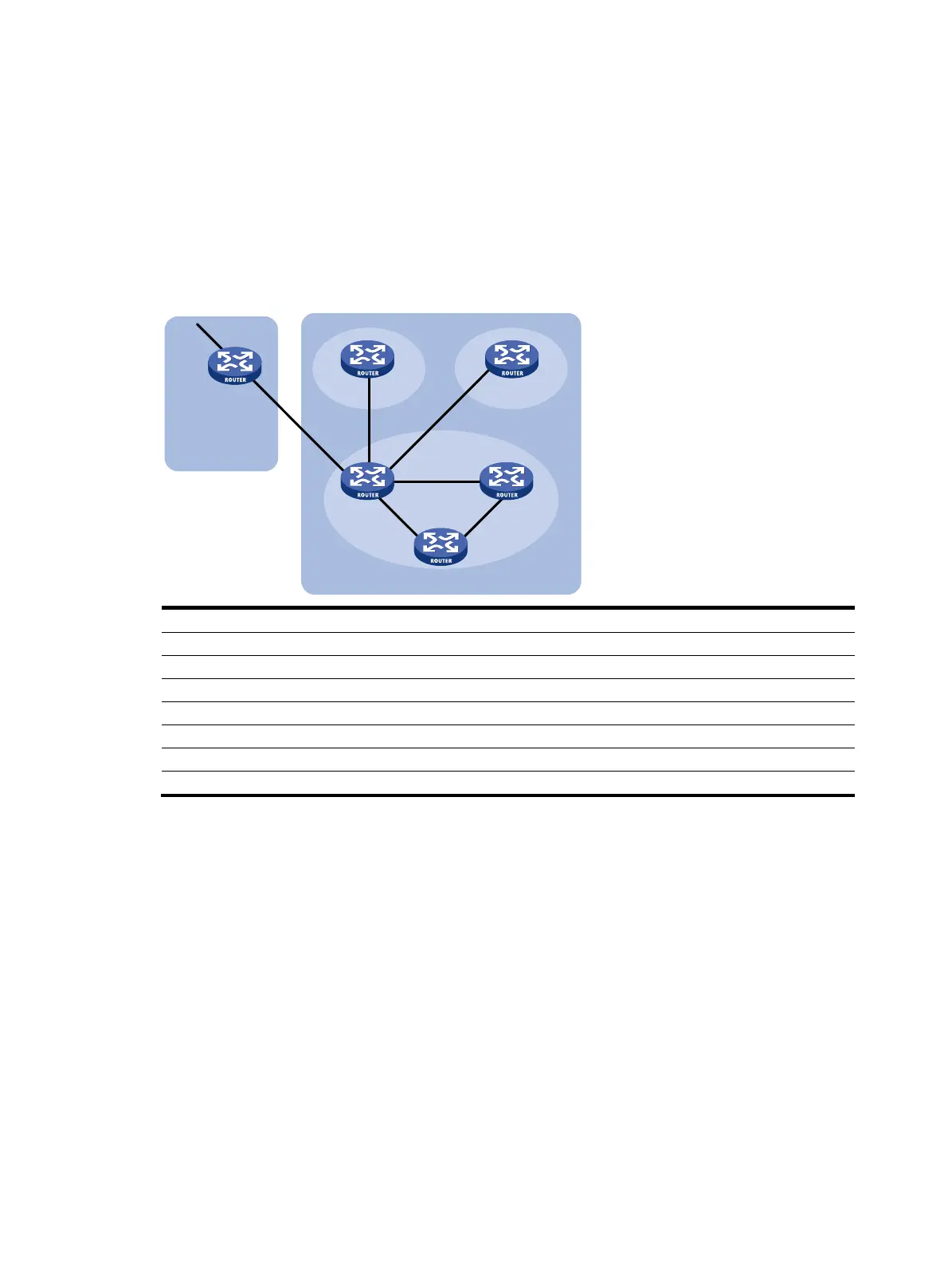

Figure 68 Network diagram
Device Interface IP address Device Interface IP address
Router A Eth1/1 10.1.2.1/24 Router D Eth1/1 10.1.5.1/24
Eth1/2 10.1.3.1/24 Eth1/2 10.1.3.2/24
Eth1/3 10.1.4.1/24 Router E Eth1/1 10.1.5.2/24
Eth1/4 200.1.1.1/24 Eth1/2 10.1.4.2/24
Eth1/5 10.1.1.1/24 Router F Eth1/1 9.1.1.1/24
Router B Eth1/1 10.1.1.2/24 Eth1/2 200.1.1.2/24
Router C Eth1/1 10.1.2.2/24
Configuration procedure
1. Configure IP addresses for interfaces. (Details not shown.)
2. Configure the BGP confederation:
# Configure Router A.
<RouterA> system-view
[RouterA] bgp 65001
[RouterA-bgp] router-id 1.1.1.1
[RouterA-bgp] confederation id 200
[RouterA-bgp] confederation peer-as 65002 65003
[RouterA-bgp] peer 10.1.1.2 as-number 65002
[RouterA-bgp] peer 10.1.2.2 as-number 65003
[RouterA-bgp] address-family ipv4 unicast
[RouterA-bgp-ipv4] peer 10.1.1.2 enable
[RouterA-bgp-ipv4] peer 10.1.2.2 enable
[RouterA-bgp-ipv4] peer 10.1.1.2 next-hop-local
Router F
Router A
Router D
Router E
AS 200
AS 100
Eth1/1
Router B
Router C
AS 65002
AS 65003
Eth1/2
Eth1/4
Eth1/5
Eth1/1
Eth1/1
Eth1/1
Eth1/2
Eth1/2
Eth1/2
Eth1/3
Eth1/1
Eth1/1
AS 65001
