333

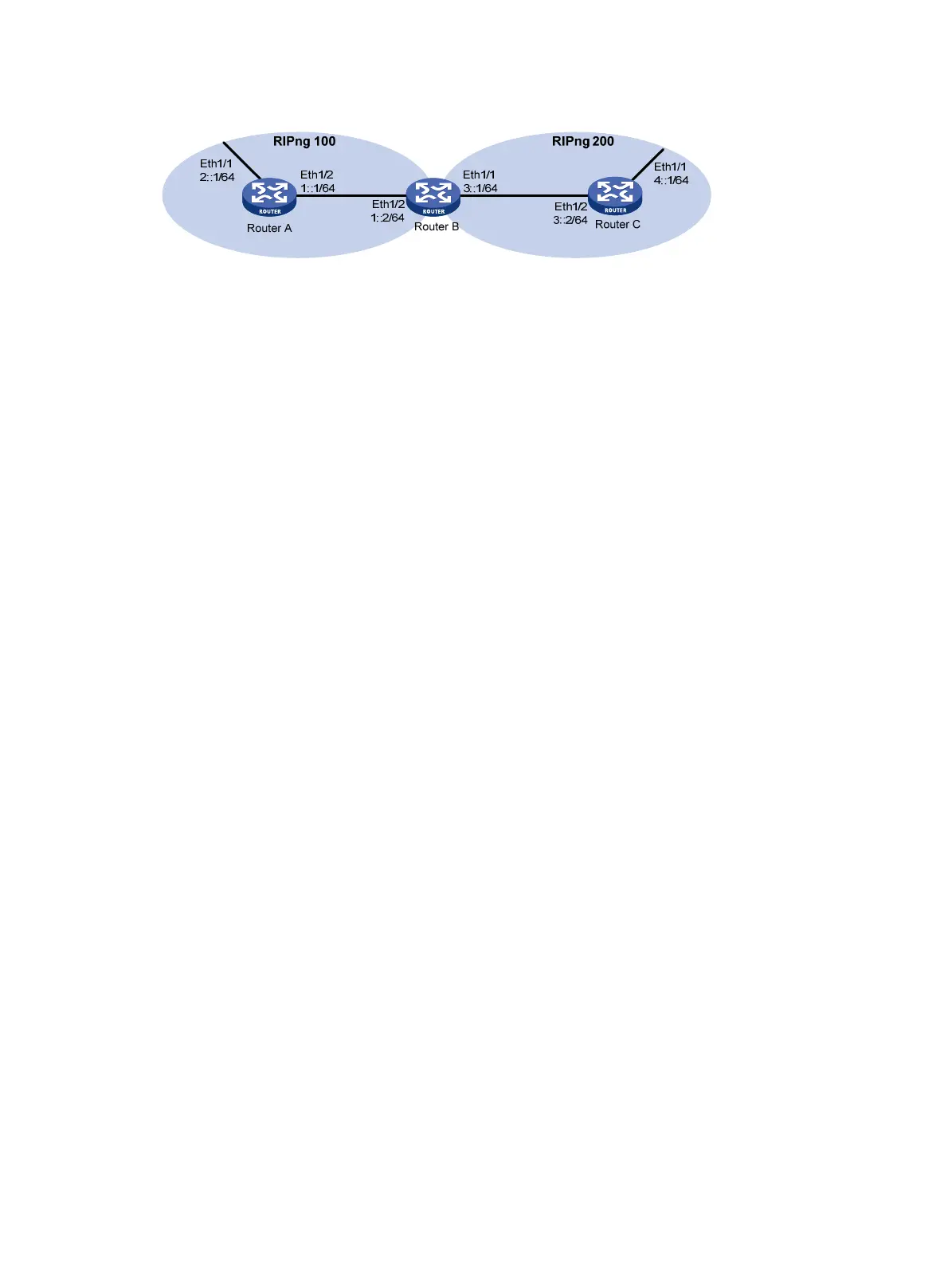

Figure 84 Network diagram
Configuration procedure
1. Configure IPv6 addresses for interfaces. (Details not shown.)
2. Configure basic RIPng:
# Enable RIPng 100 on Router A.
<RouterA> system-view
[RouterA] ripng 100
[RouterA-ripng-100] quit
[RouterA] interface ethernet 1/1
[RouterA-Ethernet1/1] ripng 100 enable
[RouterA-Ethernet1/1] quit
[RouterA] interface ethernet 1/2
[RouterA-Ethernet1/2] ripng 100 enable
# Enable RIPng 100 and RIPng 200 on Router B.
<RouterB> system-view
[RouterB] ripng 100
[RouterB-ripng-100] quit
[RouterB] interface ethernet 1/2
[RouterB-Ethernet1/2] ripng 100 enable
[RouterB-Ethernet1/2] quit
[RouterB] ripng 200
[RouterB-ripng-200] quit
[RouterB] interface ethernet 1/1
[RouterB-Ethernet1/1] ripng 200 enable
# Enable RIPng 200 on Router C.
<RouterC> system-view
[RouterC] ripng 200
[RouterC] interface ethernet 1/1
[RouterC-Ethernet1/1] ripng 200 enable
[RouterC-Ethernet1/1] quit
[RouterC] interface ethernet 1/2
[RouterC-Ethernet1/2] ripng 200 enable
[RouterC-Ethernet1/2] quit
# Display the routing table on Router A.
[RouterA] display ipv6 routing-table
Destinations : 7 Routes : 7
Destination: ::1/128 Protocol : Direct
