Assembly
Access 4-5
To
open
a side door, UNPLUG COMPUTER POWER CORD FROM
AC
OUTLET. Then, grasp
door as shown
in
Figure 4-2
and
pull top of door away from the computer. Allow
door
to rest
on
its
hinges
in
the
open
position. Close door by swinging
it
up
and
snapping
it
in
place.

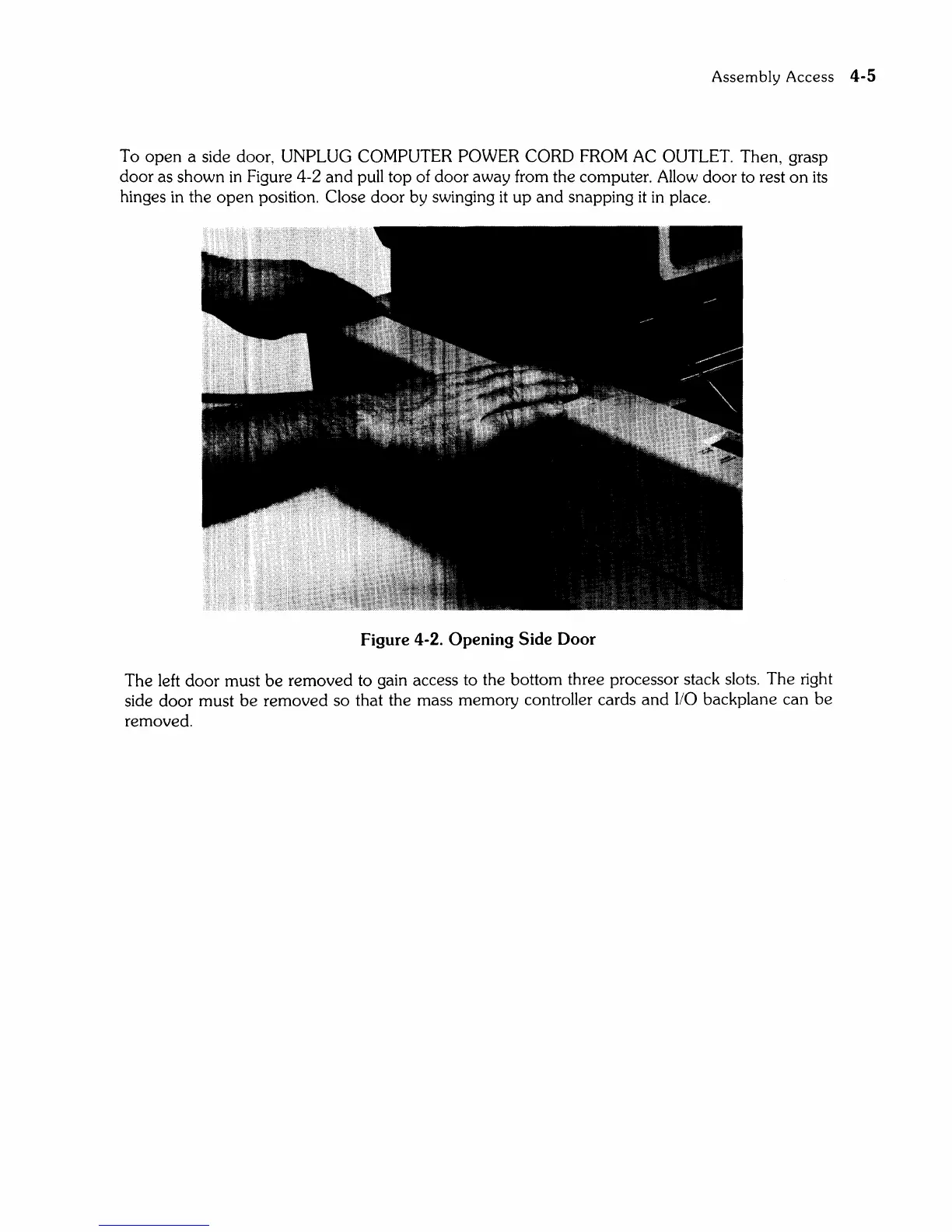

Figure 4-2. Opening Side Door
The left
door
must
be
removed to gain access to the bottom three processor stack slots. The right
side
door
must
be
removed so that the mass memory controller cards
and
110
backplane can
be
removed.
