4-24
Assembly Access
8. Pull clock board straight out of motherboard and out of stack.
Motherboard
*
IN
LINE
CONNECTOR
*

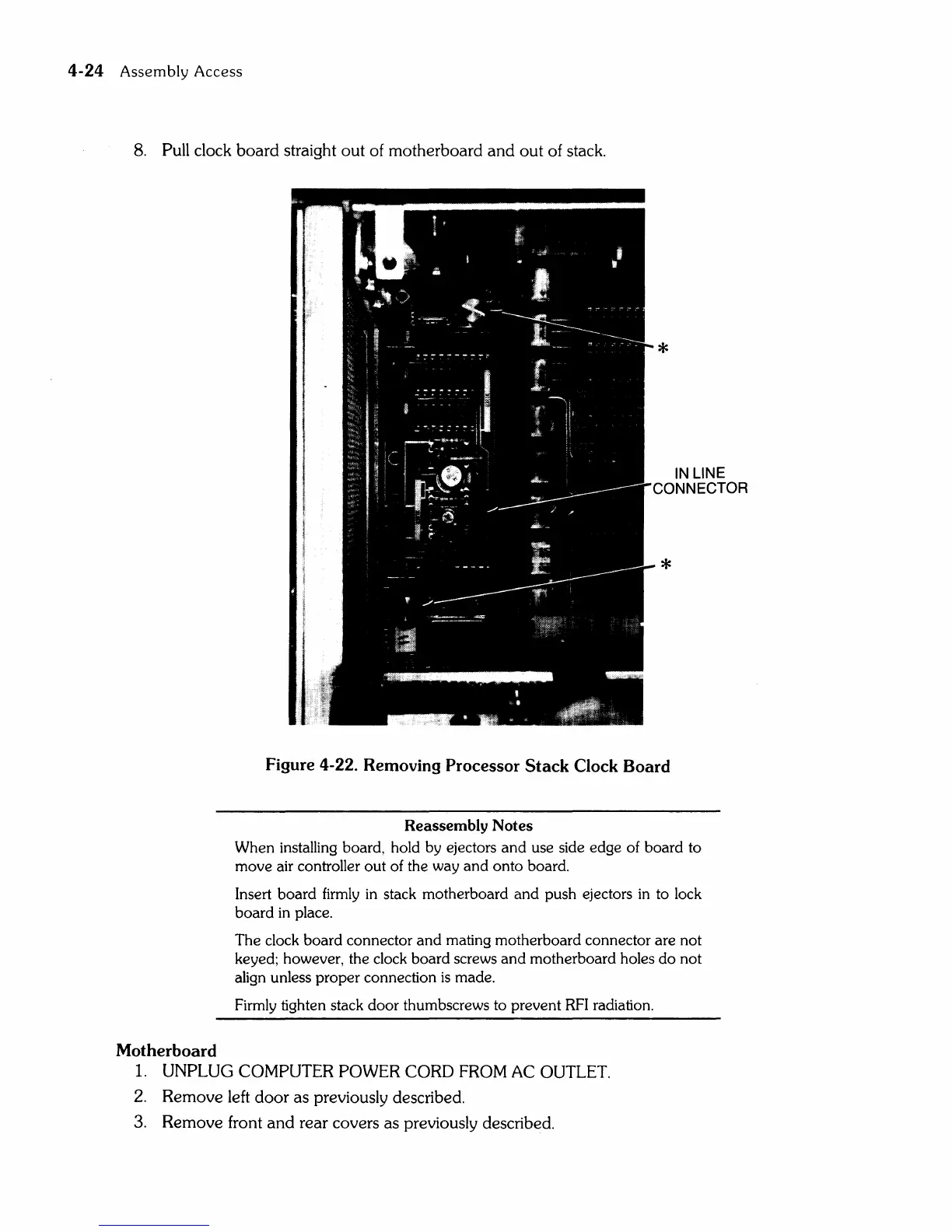

Figure
4-22.
Removing Processor
Stack
Clock
Board
Reassembly Notes
When installing board, hold by ejectors and use side edge of board to
move air controller out of the way and onto board.
Insert board
firmly
in
stack motherboard and push ejectors
in
to lock
board
in
place.
The clock board connector and mating motherboard connector are not
keyed; however, the clock board screws and motherboard holes do not
align unless proper connection
is
made.
Firmly tighten stack door thumbscrews to prevent
RFI
radiation.
1.
UNPLUG COMPUTER POWER CORD FROM AC OUTLET.
2.
Remove left door as previously described.
3. Remove front and rear covers as previously described.
