HP 9020 - Chassis Components Parts List

5-8 Replaceable Parts

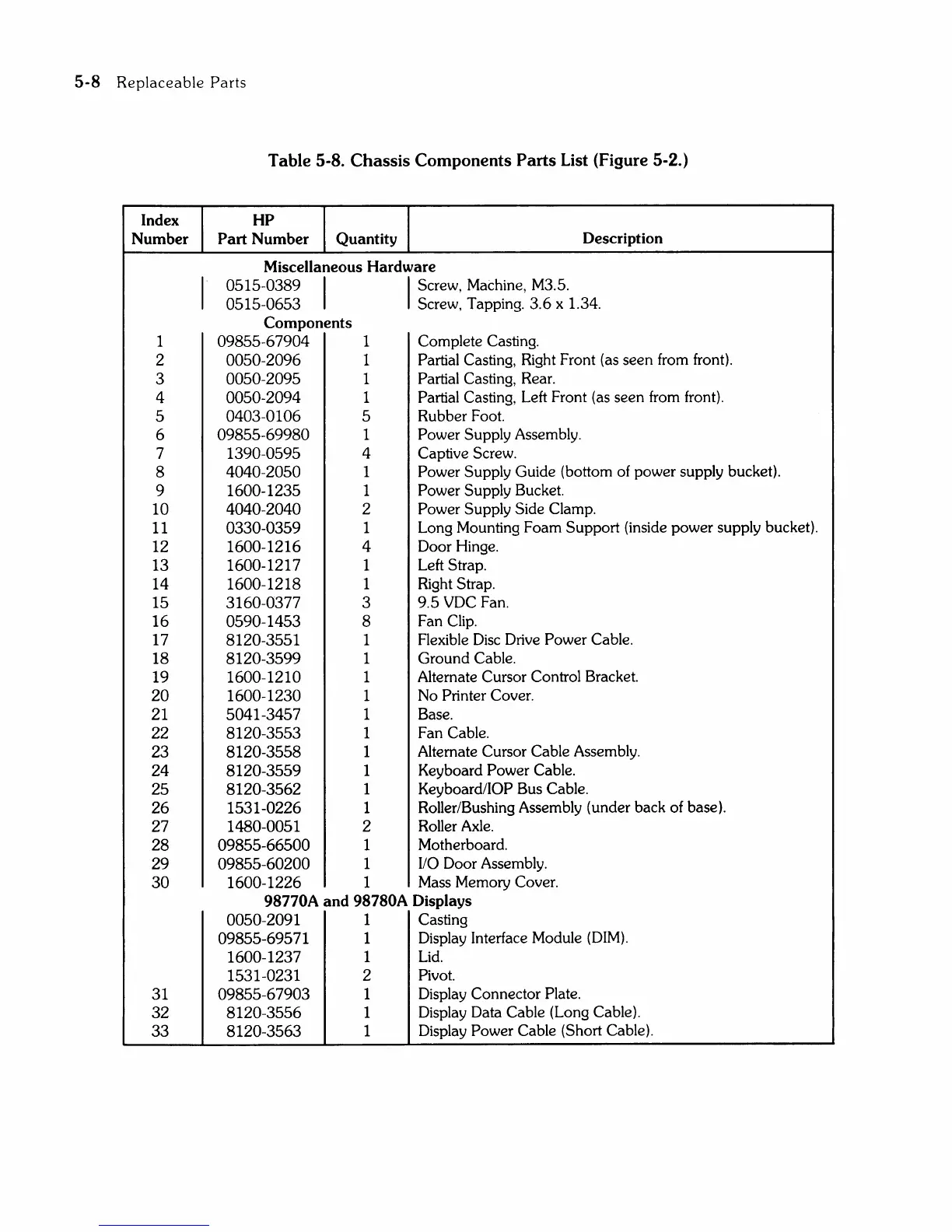

Table 5-8. Chassis Components Parts List (Figure 5-2.)
Index HP
Number Part Number
Quantity
Description
Miscellaneous Hardware
I
0515-0389
I
I
Screw, Machine, M3.5.
0515-0653
Screw, Tapping. 3.6 x 1.34.
Components
1
09855-67904 1
Complete Casting.
2
0050-2096 1
Partial Casting, Right Front (as seen from front).
3
0050-2095 1
Partial Casting, Rear.
4
0050-2094
1
Partial Casting, Left Front (as seen from front).
5
0403-0106 5
Rubber Foot.
6
09855-69980 1
Power Supply Assembly.
7
1390-0595
4
Captive Screw.
8
4040-2050 1
Power Supply Guide (bottom of power supply bucket).
9
1600-1235
1
Power Supply Bucket.
10 4040-2040
2
Power Supply Side Clamp.
11 0330-0359
1
Long Mounting Foam Support (inside power supply bucket).
12
1600-1216 4
Door Hinge.
13
1600-1217 1
Left Strap.
14 1600-1218
1
Right Strap.
15
3160-0377 3
9.5
VDC Fan.
16 0590-1453 8
Fan
Clip.
17
8120-3551
1
Flexible
Disc Drive Power Cable.
18 8120-3599
1
Ground Cable.
19
1600-1210
1
Alternate Cursor Control Bracket.
20 1600-1230 1
No
Printer Cover.
21 5041-3457 1
Base.
22 8120-3553
1
Fan Cable.
23 8120-3558
1
Alternate Cursor Cable Assembly.
24 8120-3559
1
Keyboard
Power Cable.
25 8120-3562
1
Keyboard/lOP Bus Cable.
26 1531-0226
1
Roller/Bushing Assembly (under back of base).
27
1480-0051
2
Roller
Axle.
28 09855-66500 1
Motherboard.
29
09855-60200
1
110 Door Assembly.
30 1600-1226
1
Mass Memory Cover.
98770A and 98780A Displays
0050-2091
1
Casting
09855-69571
1
Display Interface Module
(DIM).
1600-1237
1
Lid.
1531-0231
2
Pivot.
31 09855-67903
1
Display Connector
Plate.
32 8120-3556
1
Display Data Cable (Long Cable).
33 8120-3563
1
Display
Power Cable (Short Cable).
