nov
POWER SWITCH
ASSEMBLY
LINE
FILTER

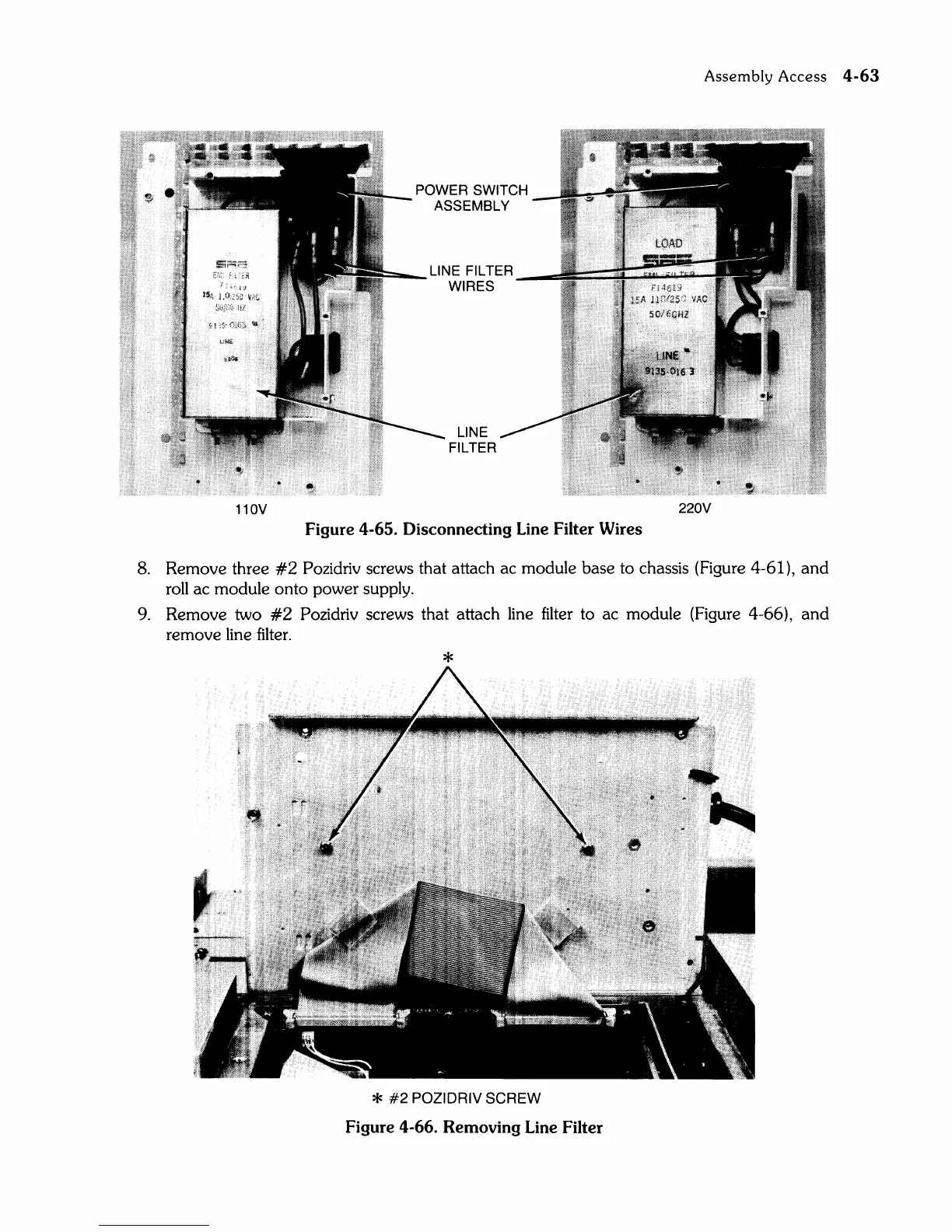

Figure 4-65. Disconnecting Line Filter Wires
Assembly Access
4-63
220V
8.
Remove three
#2
Pozidriv screws that attach ac module base to chassis (Figure 4-61), and
roll
ac module onto power supply.
9.
Remove two
#2
Pozidriv screws that attach line
filter
to ac module (Figure 4-66), and
remove line
filter.
*
*
#2
POZIDRIV SCREW
Figure 4-66. Removing Line Filter
