HP 9020 - Lifting Display; Removing Rear Cover

Assembly Access 4-11

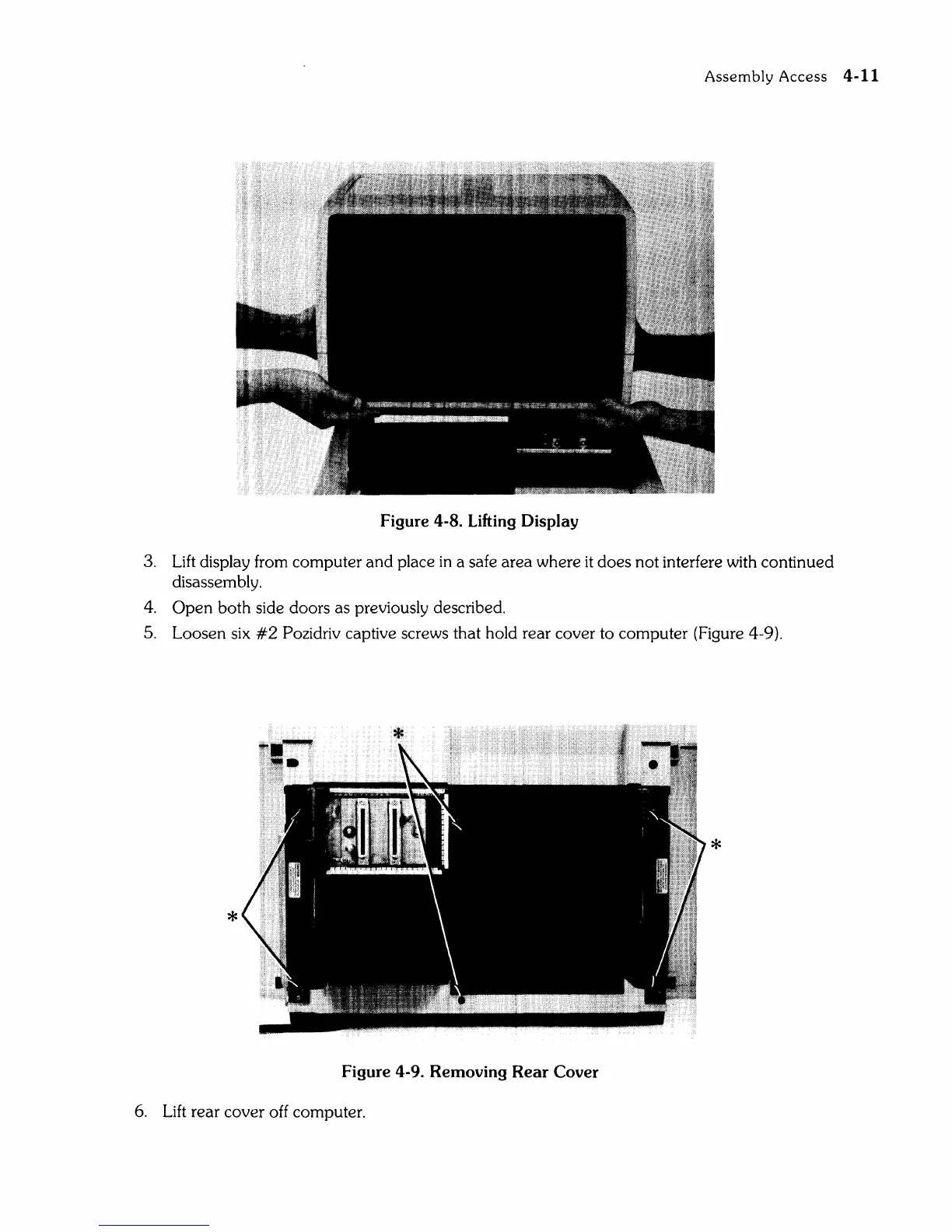

Figure 4-8. Lifting Display
3. Lift display from computer and place in a safe area where it does not interfere with continued
disassembly.
4. Open both side doors as previously described.
5. Loosen six #2 Pozidriv captive screws that hold rear cover to computer (Figure 4-9).
*
*
Figure 4-9. Removing Rear Cover
6. Lift rear cover off computer.
