HP 9020 - Removing Printhead Interconnect Board

Assembly Access 4-43

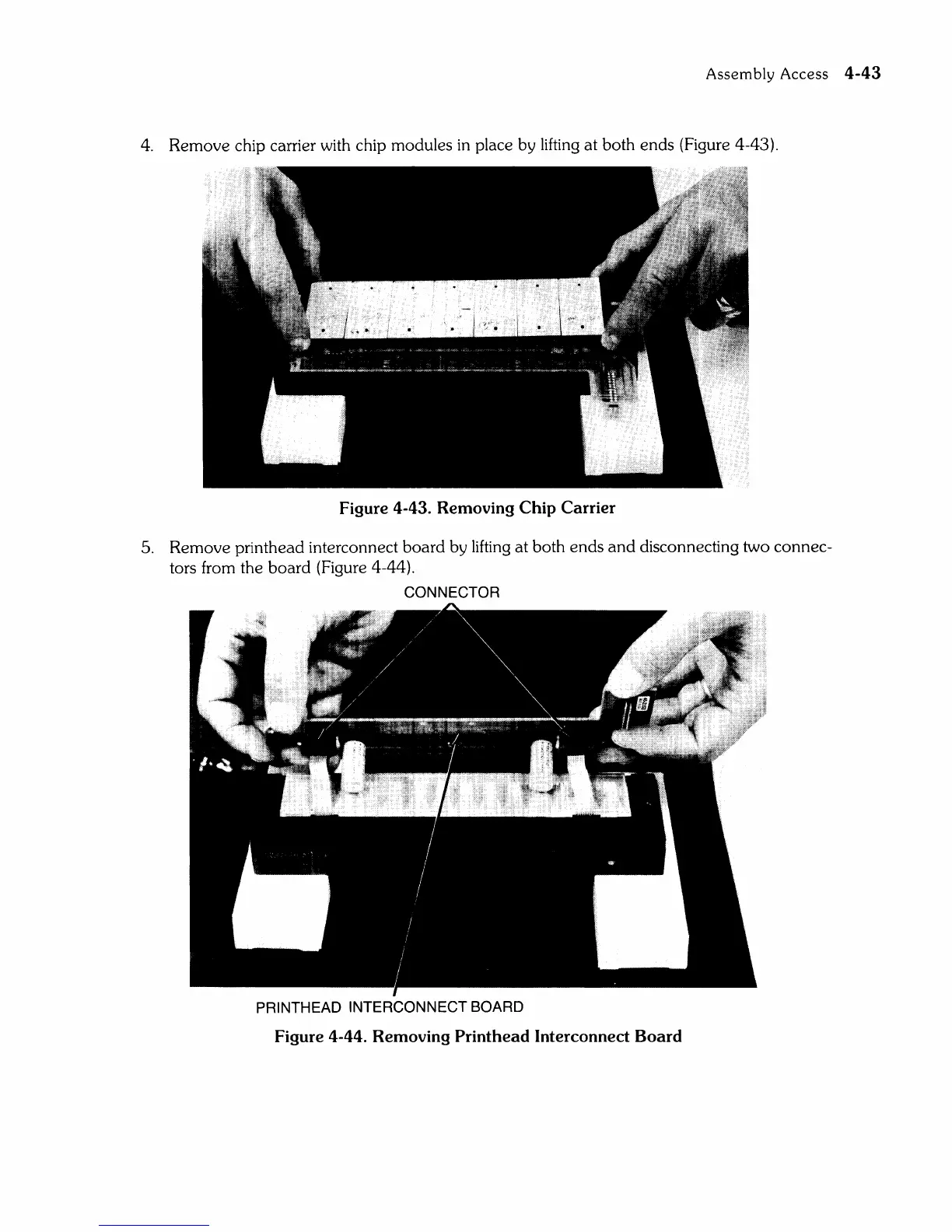

4. Remove chip carrier with chip modules in place by lifting at both ends (Figure 4-43).
Figure 4-43. Removing Chip Carrier
5. Remove printhead interconnect board by lifting at both ends and disconnecting two connec-
tors from the
board (Figure 4-44).
CONNECTOR
PRINTHEAD INTERCONNECT
BOARD
Figure 4-44. Removing Printhead Interconnect Board
